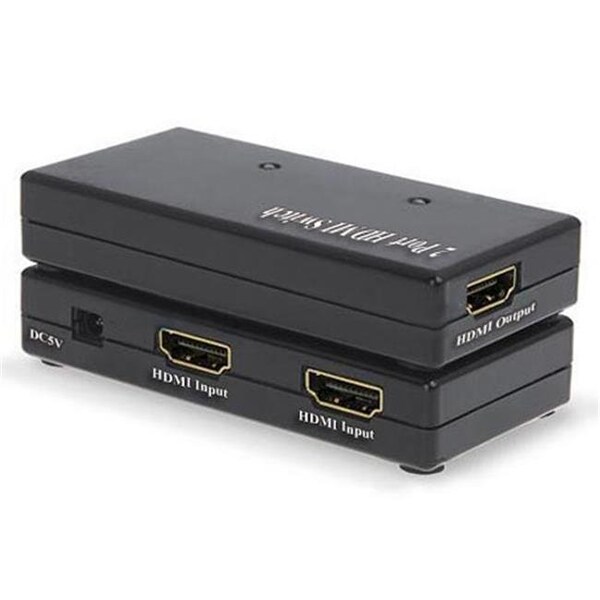

CMPLE 112-N HDMI 2 Ports Switch- 2X1
Mfr # 112-N
Zoro # G403931991
product price: $31.65
/eaKey Features
Input Voltage
5 V DC
Device Supported
DVD Player
Graphic Mode
WUXGA
Number of Input Devices Supported
2
Number of Displays Supported
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
112-N
Zoro #
G403931991
UPC #
815239011259
Country of Origin
China
Dimensions
Width
3.3 in
Height
0.6 in
Details
Item
Audio/Video Switchbox
Input Voltage
5 V DC
Device Supported
DVD Player
Graphic Mode
WUXGA
Number of Input Devices Supported
2
Number of Displays Supported
1
Max. Video Resolution
1920 x 1200
Scan Format
1440p
Maximum Video Resolution
1920 x 1200
Graphics Modes
WUXGA
Description
HDMI 2 Ports Switch (2X1)Switch easily between any two HDMI sources automatically. Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved No external power needed. Up to 24 bit color depth. Up to DTS Master Audio and Dolby Digital TrueHD support HDMI pass-through HDCP pass-through Compatible with HDMI1.3 devices. SPECIFICATIONS
Operating temperature range..............................0 to +70?
Operating humidity range....................................5 to 90 % RH (no condensation)
Video Amplifier Bandwidth.................................2.5Gbps/250MHz
Input Video Signal.............................................0.5-1.0 volts p-p
Input DDC Signal................................................5 volts p-p (TTL)
Maximum Single Link Range.................................1920 x 1200, 1080P VIDEO FORMAT SUPPORTED:
VGA : .................................640x480,800x600,1024x768,1920x1200
DTV/HDTV: ....................................480i/576i/480p/576p/720p/1080i/1080P
Output Video....................................HDMI1.3+HDCP1.0/1.1
Power Consumption...........................5Watts (max.)
Power Supply....................................5VDC (optional)
Dimensions..........................................85mmW x 15mmH x 43mmD
Net Weight..........................................0.05KGs
Power Supply is optional. Device is self powered thru HDMI Cables
The 2x1 HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the two sources to display unit. Two inputs accommodate the simultaneous connection of up to two high definition video sources, such as satellite systems and HD DVD players. The output sends the high definition audio/video signals to a high definition display. Switching is done via it self automatically when signal present on the ports.
FEATURES
Operating temperature range..............................0 to +70?
Operating humidity range....................................5 to 90 % RH (no condensation)
Video Amplifier Bandwidth.................................2.5Gbps/250MHz
Input Video Signal.............................................0.5-1.0 volts p-p
Input DDC Signal................................................5 volts p-p (TTL)
Maximum Single Link Range.................................1920 x 1200, 1080P VIDEO FORMAT SUPPORTED:
VGA : .................................640x480,800x600,1024x768,1920x1200
DTV/HDTV: ....................................480i/576i/480p/576p/720p/1080i/1080P
Output Video....................................HDMI1.3+HDCP1.0/1.1
Power Consumption...........................5Watts (max.)
Power Supply....................................5VDC (optional)
Dimensions..........................................85mmW x 15mmH x 43mmD
Net Weight..........................................0.05KGs
Power Supply is optional. Device is self powered thru HDMI Cables
