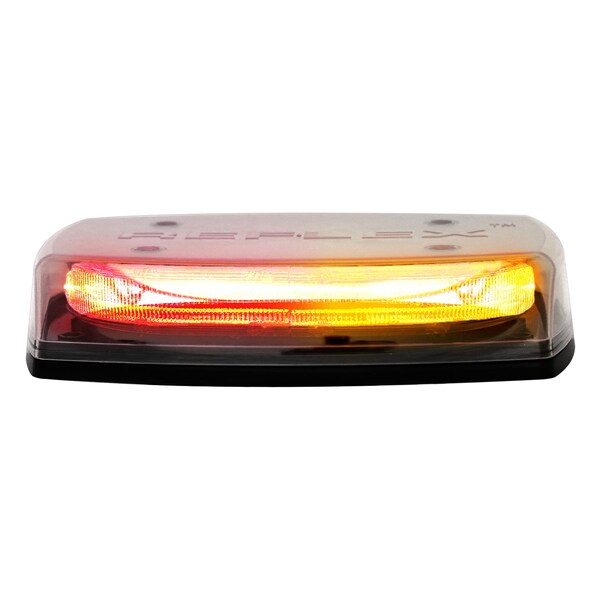

Mini Light Bar, LED, Permanent

  • Mfr # C5550CRA

  • Zoro # G3773469


product price: $349.99
/ea
Free Shipping & Returns

Key Features

Color
Clear/Red/Amber
Includes
Gasket, Mounting Hardware
Lighting Technology - Vehicle Lighting
LED
Lens Color - Vehicle Lighting
Amber, Red
Light Type - Vehicle Lighting
Flashing
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C5550CRA
Zoro #
G3773469
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
3 yr
Length - Vehicle Lighting
11 in
Height - Vehicle Lighting
2 13/64 in
Length
11"
Width - Vehicle Lighting
7 19/32 in
Width
7-39/64"
Overall Height
2 3/16 in
Overall Depth
7 5/8 in
Overall Length
10 7/8 in

Details

Item
Mini Light Bar
Color
Clear/Red/Amber
Includes
Gasket, Mounting Hardware
Lighting Technology - Vehicle Lighting
LED
Lens Color - Vehicle Lighting
Amber, Red
Light Type - Vehicle Lighting
Flashing
Current Drawn
2.7 A
Number of Heads
4
Number of Flash Patterns - Vehicle Lighting
18
Lamp Type
Led
Number of LEDs
48
Flashes per Minute
Variable
Base Material
Polycarbonate
Housing Material
Polycarbonate
Mounting - Vehicle Lighting
Permanent
Lamp Life
100,000 hr
Wiring Connection - Vehicle Lighting
Pigtail
Lens Material
Polycarbonate
Standards
CA T13, R10, R65, RCM, RoHS Compliant
Voltage
12-24V DC
Mounting
Permanent
Lens Color
Clear
Operating Temp.
-22 Degrees to 122 Degrees F
Shape
Rectangular
Lighting Technology
LED
Number of Bulbs
48
Number of Flash Patterns
91
Power Source
Corded
Manufacturer Warranty
5 yr
Vehicle Class
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Installation Type
Permanent
Mount Type
Bolt
Series
C5550 Reflex
Includes Electrical Connection
Electrical Connection Included
Light Color
Amber/Red
Light Pattern
Flashing
Installation Location
Roof
Light Type
Emergency Vehicle Mini Light Bar
Mount Style
Surface
Maximum Operating Temperature
122 Degrees F
Electrical Connection
Pigtail
Current
3.4 A
Compatible Vehicle Type
Universal
Minimum Operating Temperature
-22 Degrees F
IP Rating
IP65
SAE Class Rating
SAE J845 Class 1
Wire Exit
Bottom
Wattage
40.8 W
Operating Voltage
12-24V DC

Description

Mini Light Bar, Light Type Emergency Vehicle Mini Light Bar, Light Color Amber/Red, Wattage 40.8 W, Lens Color Clear, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J845 Class 1, Electrical Connection Pigtail, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12-24V DC, Overall Length 10 7/8 in, Overall Diameter Not Applicable, Overall Height 2 3/16 in, Overall Depth 7 5/8 in, IP Rating IP65, Compatible Vehicle Type Universal, Number of Heads 4
