Code 3

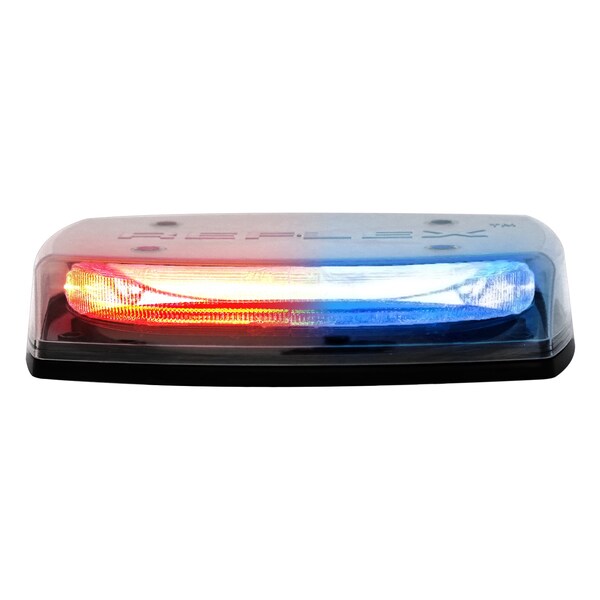

Mini Light Bar, LED, Permanent

product price: $323.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 12 to 24V DC
  • Lamp Type Led
  • Lens Color Clear
  • Lighting Technology - Vehicle Lighting LED
  • Current Drawn 2.7 A
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 2 13/64 in
Width - Vehicle Lighting 7 19/32 in
Length - Vehicle Lighting 11 in
Manufacturers Warranty Length 3 yr
Overall Height 2 3/16 in
Overall Length 10 7/8 in
Overall Depth 7 5/8 in

Details

Item Mini Light Bar
Voltage 12 to 24V DC
Lamp Type Led
Lens Color Clear
Lighting Technology - Vehicle Lighting LED
Current Drawn 2.7 A
Number of Flash Patterns - Vehicle Lighting 18
Color Clear/Red/Blue
Housing Material Polycarbonate
Wiring Connection - Vehicle Lighting Pigtail
Lens Color - Vehicle Lighting Blue, Red
Mounting Permanent
Includes Gasket, Mounting Hardware
Mounting - Vehicle Lighting Permanent
Standards CA T13, R10, R65, RCM, RoHS Compliant
Number of Heads 4
Base Material Polycarbonate
Lens Material Polycarbonate
Number of LEDs 48
Light Type - Vehicle Lighting Flashing
Lamp Life 100,000 hr
Flashes per Minute Variable
Operating Temp. -22 Degrees to 122 Degrees F
Shape Rectangular
Number of Flash Patterns 91
Number of Bulbs 48
Lighting Technology LED
Power Source Corded
Series C5550 Reflex
Maximum Operating Temperature 122 Degrees F
Light Pattern Flashing
Light Color Blue/Red
IP Rating IP65
Minimum Operating Temperature -22 Degrees F
Manufacturer Warranty 5 yr
Includes Electrical Connection Electrical Connection Included
Mount Style Surface
Installation Location Roof
Light Type Emergency Vehicle Mini Light Bar
Wattage 40.8 W
Mount Type Bolt
Installation Type Permanent
Wire Exit Bottom
Electrical Connection Pigtail
Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Compatible Vehicle Type Universal
Current 3.4 A
SAE Class Rating SAE J845 Class 1

Description

Mini Light Bar, Light Type Emergency Vehicle Mini Light Bar, Light Color Blue/Red, Wattage 40.8 W, Lens Color Clear, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J845 Class 1, Electrical Connection Pigtail, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12-24V DC, Overall Length 10 7/8 in, Overall Diameter Not Applicable, Overall Height 2 3/16 in, Overall Depth 7 5/8 in, IP Rating IP65, Compatible Vehicle Type Universal, Number of Heads 4
