  11. Perimeter Light, LED, Amber, Surf, Rect, 6InL
Shop All Automotive Back Up Alarms
Code 3

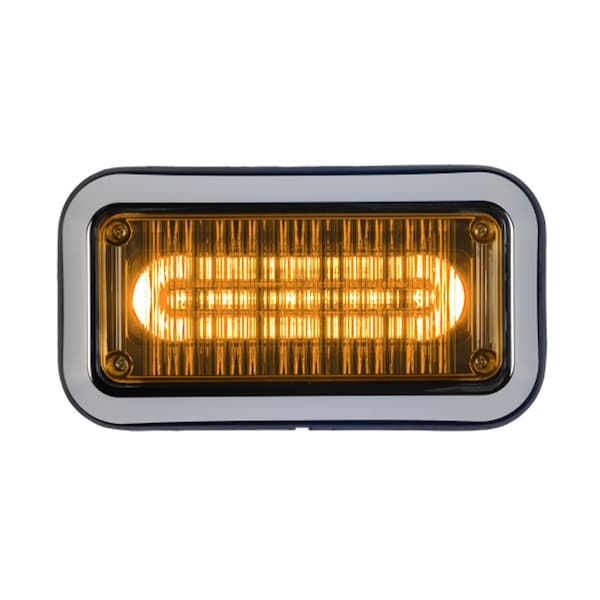

Perimeter Light, LED, Amber, Surf, Rect, 6InL

product price: $285.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lamp Type Led
  • Voltage 12V
  • Lens Color Amber
  • Lighting Technology - Vehicle Lighting LED
  • Number of Flash Patterns - Vehicle Lighting 30
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 7 in
Width - Vehicle Lighting 1 1/2 in
Length - Vehicle Lighting 3 in
Length 6"
Height 1-1/2"
Width 4-3/4"
Overall Height 5 in
Overall Length 9 3/16 in
Overall Depth 1 5/8 in

Details

Item Perimeter Light
Lamp Type Led
Voltage 12V
Lens Color Amber
Lighting Technology - Vehicle Lighting LED
Number of Flash Patterns - Vehicle Lighting 30
Current Drawn 0.7 A
Color Amber
Housing Material Plastic
Wiring Connection - Vehicle Lighting Pigtail
Lens Color - Vehicle Lighting Amber
Mounting Surface
Mounting - Vehicle Lighting Permanent
Includes Bezel, Pigtail
Standards CA T13, KKK-A 1822F, NFPA
Number of Heads 1
Flash Type Selectable Patterns
Features Synchronization Between Multiple Light Heads, Water-Resistant
Lens Design Rectangular
Base Material Plastic
Voltage - Vehicle Lighting 12V DC
Sub-Category Single Function Lights
Lens Material Polycarbonate
Beam Angle - Vehicle Lighting 180 Degrees
Wide Range - Vehicle Lighting Perimeter Light
Power Source Corded
Flashes per Minute 75 to 150
Material polycarbonate
Number of Flash Patterns 30
Shape Rectangular
Lighting Technology LED
Number of Bulbs 12
IP Rating IP65
Light Color Amber
Installation Location Bumper, Grille, Hood, Side Mirror
Current 0.7 A
Mount Style Surface
Wire Exit Bottom
Electrical Connection Pigtail
Manufacturer Warranty 5 yr
SAE Class Rating SAE J595 Class 1
Compatible Vehicle Type Universal
Light Pattern Flashing
Wattage 8.4 W
Light Type Emergency Vehicle Perimeter Light
Mount Type Bolt
Series PriZm II Series
Installation Type Permanent
Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

Description

Perimeter Light, Light Type Emergency Vehicle Perimeter Light, Light Color Amber, Wattage 8.4 W, Lens Color Amber, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J595 Class 1, Electrical Connection Pigtail, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12V DC, Overall Length 9 3/16 in, Overall Diameter Not Applicable, Overall Height 5 in, Overall Depth 1 5/8 in, IP Rating IP65, Compatible Vehicle Type Universal, Number of Heads 1
