Shop All Automotive Back Up Alarms
Code 3

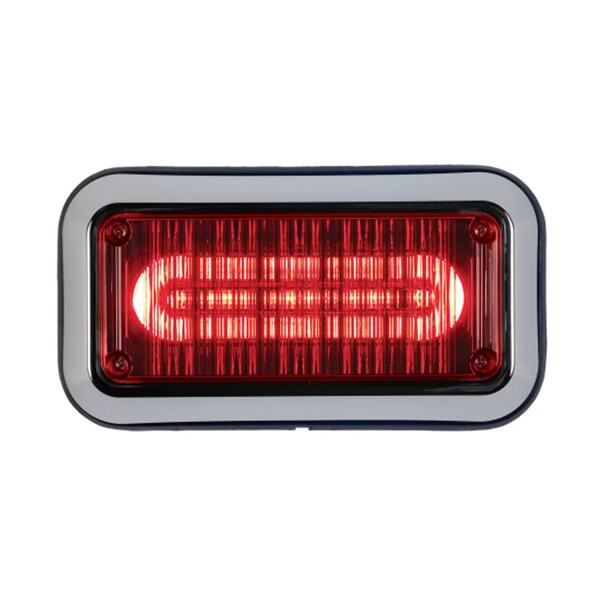

Perimeter Light, LED, Red, Surface, Rect, 6In

product price: $285.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lamp Type Led
  • Voltage 12V
  • Lens Color Red
  • Lighting Technology - Vehicle Lighting LED
  • Number of Flash Patterns - Vehicle Lighting 30
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 7 in
Width - Vehicle Lighting 1 1/2 in
Length - Vehicle Lighting 3 in
Height 1-1/2"
Width 4-3/4"
Length 6"
Overall Height 5 in
Overall Depth 1 5/8 in
Overall Length 9 3/16 in

Details

Item Perimeter Light
Lamp Type Led
Voltage 12V
Lens Color Red
Lighting Technology - Vehicle Lighting LED
Number of Flash Patterns - Vehicle Lighting 30
Current Drawn 0.7 A
Color Red
Wiring Connection - Vehicle Lighting Pigtail
Housing Material Plastic
Lens Color - Vehicle Lighting Red
Mounting Surface
Mounting - Vehicle Lighting Permanent
Includes Bezel, Pigtail
Standards CA T13, KKK-A 1822F, NFPA
Number of Heads 1
Flash Type Selectable Patterns
Power Source Corded
Wide Range - Vehicle Lighting Perimeter Light
Lens Design Rectangular
Features Synchronization Between Multiple Light Heads
Voltage - Vehicle Lighting 12V DC
Sub-Category Single Function Lights
Beam Angle - Vehicle Lighting 180 Degrees
Lens Material Polycarbonate
Base Material Plastic
Flashes per Minute 75 to 150
Material polycarbonate
Lighting Technology LED
Number of Flash Patterns 30
Number of Bulbs 12
Shape Rectangular
SAE Class Rating SAE J595 Class 1
Installation Location Bumper, Grille, Hood, Side Mirror
Electrical Connection Pigtail
Compatible Vehicle Type Universal
Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Light Pattern Flashing
Mount Style Surface
Manufacturer Warranty 5 yr
Mount Type Bolt
Light Color Red
Installation Type Permanent
Wire Exit Bottom
Current 0.7 A
Wattage 8.4 W
Light Type Emergency Vehicle Perimeter Light
IP Rating IP65
Series PriZm II Series

Description

Perimeter Light, Light Type Emergency Vehicle Perimeter Light, Light Color Red, Wattage 8.4 W, Lens Color Red, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J595 Class 1, Electrical Connection Pigtail, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12V DC, Overall Length 9 3/16 in, Overall Diameter Not Applicable, Overall Height 5 in, Overall Depth 1 5/8 in, IP Rating IP65, Compatible Vehicle Type Universal, Number of Heads 1
