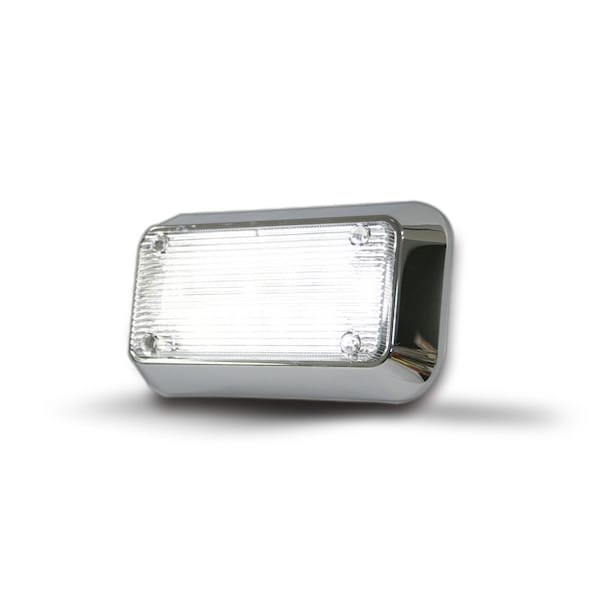

Code 3 Scene Light, LED, 12 to 24VDC 37SCENE - main

Scene Light, LED, 12 to 24VDC

  • Mfr # 37SCENE

  • Zoro # G3772111

product price:  $393.99
/ea
Free Shipping & Returns

Key Features

Features
Light Angles Down 8 Degrees to 32 Degrees From Horizontal Position
Standards
KKK-A 1822F, NFPA, R10
Shape
Rectangular
Wattage
28.8 W
Maximum Brightness
1,600 lm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
37SCENE
Zoro #
G3772111
UPC #
-
Country of Origin
China

Dimensions

Overall Width
9-3/16 in
Overall Height
5 in
Overall Depth
1 5/8 in
Overall Length
3 in

Details

Item
Vehicle Work Light
Features
Light Angles Down 8 Degrees to 32 Degrees From Horizontal Position
Standards
KKK-A 1822F, NFPA, R10
Shape
Rectangular
Wattage
28.8 W
Maximum Brightness
1,600 lm
Lens Color
White
Lighting Technology
LED
Mount Type
Bolt
IP Rating
IP67
Electrical Connection
Pigtail
Current
2.4 A
Mount Style
Surface
Installation Type
Permanent
Compatible Vehicle Type
Ambulances, Boats, Box Trucks, Buses, Cargo Vans, Cars, Cranes, Fire Trucks, Forklifts, Garbage Trucks, Minivans, Pickup Trucks, RVs, Skid Steers, SUVs, Tow Trucks, Tractor Trailers, Trailers, Universal
Includes
Chrome Bezel, Mounting Hardware
Housing Material
Aluminum
Beam Angle - Vehicle Lighting
180 Degrees
Rating
NFPA 1901 or GSA K-Spec
Flashes per Minute
0
Power Source
12 to 24V DC
Lens Material
Polycarbonate
Wide Range - Vehicle Lighting
Scene Light
Current Drawn
3.0 A
Number of Heads
1
Voltage
12V DC, 24V DC
Beam Type
Flood
Series
Code 3 LED Scene Lights Series
Includes Electrical Connection
Electrical Connection Not Included
Vehicle Class
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

Description

Vehicle Work Light, IP Rating IP67, Beam Type Flood, Overall Depth 1 5/8 in, Installation Type Permanent, Mount Type Bolt, Operating Voltage 12-24V DC, Lighting Technology LED, Overall Diameter Not Applicable, Overall Height 5 in, Head Shape Rectangular, Overall Width 9 3/16 in, Electrical Connection Pigtail, Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, Standards KKK-A 1822F, NFPA, R10, Includes Electrical Connection Electrical Connection Not Included
