Shop CODE 3

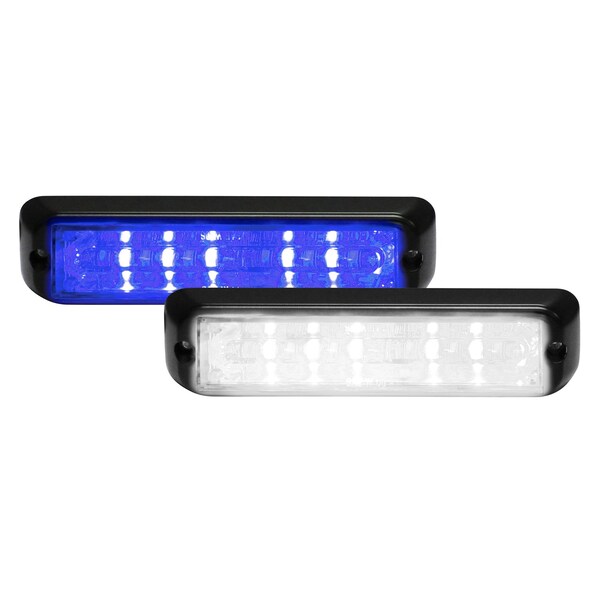

Warning Light, LED, 12 to 24VDC

  • Mfr # CD3766BW

  • Zoro # G3770958

product price:
$
126.99
/ea
Free Shipping & Returns

Key Features

Features
Encapsulated, Programmed to Flash Colors Individually or Alternately
Lighting Technology
LED
SAE Class Rating
SAE J595 Class 1
Light Color
Blue, White
Standards
CA T13, R10, R65, RoHS Compliant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CD3766BW
Zoro #
G3770958
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
1 in
Overall Height
TRUE
Overall Length
6 3/8 in
Overall Depth
1 3/16 in
Wire Rope Length
6 3/8 in
Length
6 3/8 in

Details

Item
Warning Light
Features
Encapsulated, Programmed to Flash Colors Individually or Alternately
Lighting Technology
LED
SAE Class Rating
SAE J595 Class 1
Light Color
Blue, White
Standards
CA T13, R10, R65, RoHS Compliant
Shape
Rectangular
Wattage
9.6 W
Lens Color
Clear
Light Pattern
Flashing
Lens Material
Polycarbonate
Electrical Connection
Pigtail
Base Material
Aluminum
Current
0.8 A
Mount Style
Surface
IP Rating
IP67
Installation Type
Permanent
Voltage
2 to 24V DC
Compatible Vehicle Type
Universal
Includes
Mounting Hardware
Mounting - Vehicle Lighting
Permanent
Wide Range - Vehicle Lighting
Perimeter Light
Power Source
Corded
Lens Design
Rectangular
Rating
CA T13, R10, R65, SAE J595 Class 1
Housing Material
Aluminum
Number of Heads
1
Flashes per Minute
Variable
Beam Angle - Vehicle Lighting
180 Degrees
Number of Flash Patterns
69
Number of Bulbs
12
Wire Exit
Bottom
Series
Chase
Vehicle Class
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Light Type
Emergency Vehicle Area Light
Manufacturer Warranty
5 yr
Installation Location
Bumper, Grille, Hood, Side Mirror
Mount Type
Bolt
Power Source - TS Only
Corded
Power Source - old
Corded

Description

Warning Light, Light Type Emergency Vehicle Area Light, Light Color Blue/White, Wattage 9.6 W, Lens Color Clear, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J595 Class 1, Electrical Connection Pigtail, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12-24V DC, Overall Length 6 3/8 in, Overall Diameter Not Applicable, Overall Height 1 1/2 in, Overall Depth 1 3/16 in, IP Rating IP67, Compatible Vehicle Type Universal, Number of Heads 1
