  6. 2" X 1-21/32" Non-Marking Rubber (Grey) Swivel Caster, Total Lock Brake, Loads Up To 200 lb

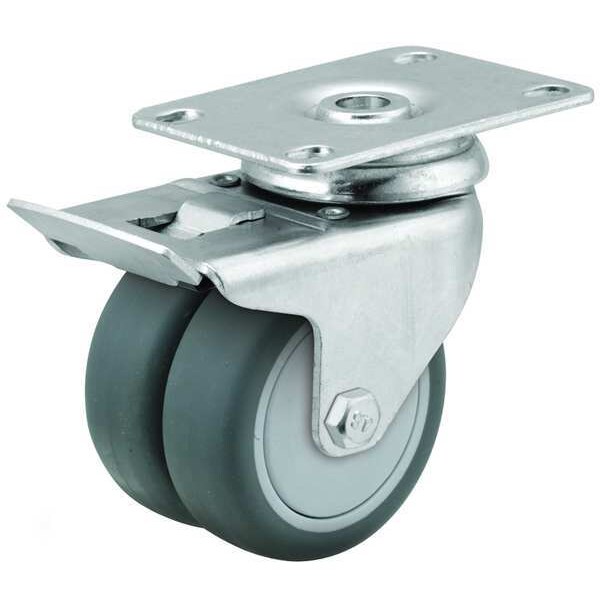

Colson 2" X 1-21/32" Non-Marking Rubber (Grey) Swivel Caster, Total Lock Brake, Loads Up To 200 lb DW02GRP100TLTP11 - main

2" X 1-21/32" Non-Marking Rubber (Grey) Swivel Caster, Total Lock Brake, Loads Up To 200 lb

  • Mfr # DW02GRP100TLTP11

  • Zoro # G6796693

product price:  $36.85
/ea

Key Features

Caster Plate Hole Pattern
A
Caster Stem Type
Top Plate
Frame Finish
Zinc Plated
Caster Frame Material
Nylon
Caster Brake Type
Total Lock
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DW02GRP100TLTP11
Zoro #
G6796693
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Dia.
2 in
Stem Dia.
No Stem
Overall Height
2-29/32in
Mounting Height
74MM
Mounting Plate Size
2-5/8in x 3in
Mounting Plate Thickness
3 mm
Mounting Plate Width
66 1/2 mm
Overall Wheel Width
1 21/32 in
Inside Slot Spacing - Width
46.5 mm
Inside Slot Spacing - Length
56 mm
For Axle Dia.
5/16 in
Mounting Plate Length
77 mm
Outside Slot Spacing - Width
51.5 mm
Outside Slot Spacing - Length
61.5 mm

Details

Caster Plate Hole Pattern
A
Caster Stem Type
Top Plate
Frame Finish
Zinc Plated
Caster Frame Material
Nylon
Caster Brake Type
Total Lock
Inside Bolt Hole Spacing
1-5/8 in X 2 in
Wheel Color
Gray
Number of Wheels
2
Outside Bolt Hole Spacing
1-31/32 in X 2-13/32 in
Non-Marking
Yes
Core Color
Black
Caster Brake Included
Yes
Load Rating
200 lb
Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Application
Patient Lifts, Computer Equipment, Lab Equipment
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel Core Material
Polypropylene
Wheel/Tread Material
Thermoplastic Rubber
Tread Shape
Standard
Swivel Construction
Kingpin
Swivel Lock Type
Total Lock
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
Yes
Wheel Bearing Type
Ball
Load Rating Range
0 to 299 lb
Wheel/Tread Color
Grey
Wheel Hardness Rating
70 Shore A
Load Capacity - Maximum
198 lb
Caster Features
Low Profile
Brake Location
Face
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-45 Degrees to 180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 200 lb, Swivel Lock Type Total Lock, Wheel Dia. 2 in, Wheel Width Not Applicable, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Total Lock, Tread Shape Standard
