  6. 3-1/2" X 1-1/4" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 230 lb

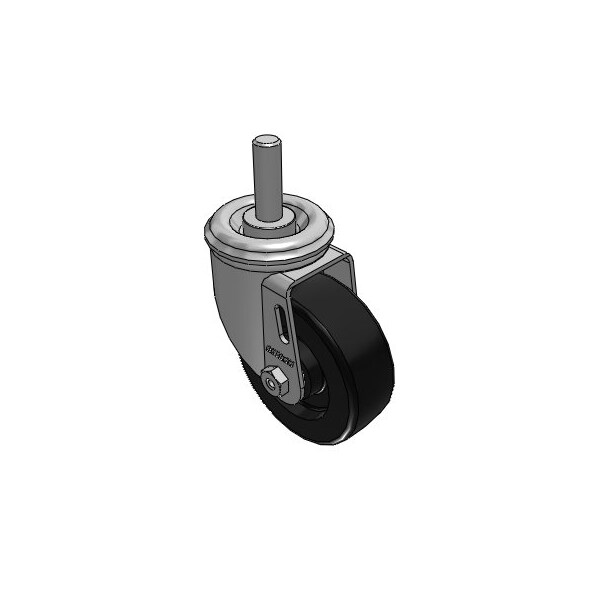

Colson 3-1/2" X 1-1/4" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 230 lb 2.03254.55 - main

3-1/2" X 1-1/4" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 230 lb

  • Mfr # 2.03254.55

  • Zoro # G2835630

product price:  $29.49
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
4-9/16 in
Load Rating
230 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2.03254.55
Zoro #
G2835630
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
4-9/16 in
Stem Length
1-1/2 in
Thread Size
13UNC
Overall Height
6 1/16 in
Hub Length
1 7/16 in
Stem Dia.
1/2 in
Stem Size
1 1/2 in
Wheel Dia.
3 in
Caster Stem Size
1/2"-13

Details

Item
Premium General Institutional Threaded Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
230 lb
Load Rating Range
0 to 299 lb
Wheel/Tread Material
Polyolefin
Application
Store Fixtures, Stoage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Hard
Number of Wheels
1
Wheel Core Material
Polyolefin
Series
2
Core Color
Black
Operating Temperature Range
-45°F to 180°F
Frame Finish
Zinc Plated
NSF Listed
No
Wheel/Tread Color
Black
Includes Thread Guards
No
Caster Mounting Type
Stem
Includes Hood
No
System of Measurement
Inch
Swivel Raceway Type
Double Ball
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Wheel/Tread Hardness
70(±5) Shore D
Load Capacity - Maximum
230 lb
Wheel Hardness Rating
70 Shore D
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Steel
Number of Mounting Holes
0
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Stem Caster, Swivel Caster, 230 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 1/4 in Wheel Width, Polypropylene Wheel/Tread Material, 4 9/16 in Mounting Height, Ball, 1/2 In.-13 Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
