  6. 3" X 1-1/4" Non-Marking Polyolefin Rigid Caster, No Brake, Loads Up To 200 lb

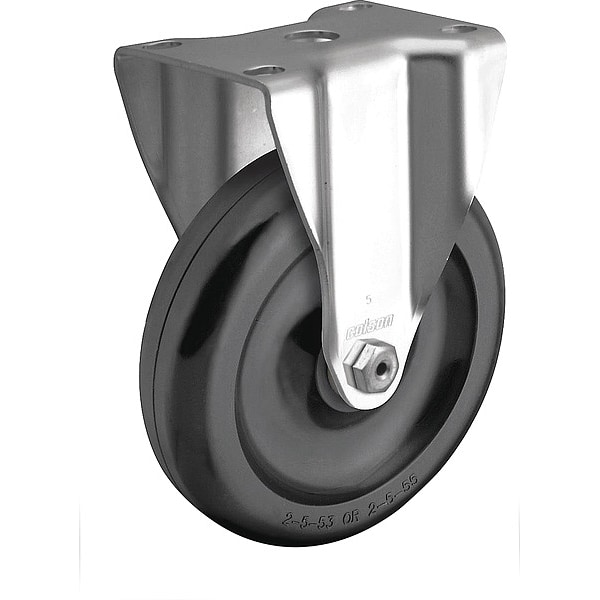

Colson 3" X 1-1/4" Non-Marking Polyolefin Rigid Caster, No Brake, Loads Up To 200 lb 2.03308.52 - main

3" X 1-1/4" Non-Marking Polyolefin Rigid Caster, No Brake, Loads Up To 200 lb

  • Mfr # 2.03308.52

  • Zoro # G7811370

product price:  $13.19
/ea

Key Features

Wheel Core Type
Solid
Load Rating
200 lb
Frame Finish
Zinc Plated
Core Color
Black
Caster Sub-Type
Rigid
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2.03308.52
Zoro #
G7811370
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
4-1/8 in
Swivel Radius
None- Rigid Caster
Wheel Dia.
3 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Mounting Plate Length
3 5/8 in
Mounting Plate Thickness
5/32 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Length
2.813 in
For Axle Dia.
3/8 in
Mounting Plate Width
2 11/16 in
Inside Slot Spacing - Width
1.75 in

Details

Wheel Core Type
Solid
Load Rating
200 lb
Frame Finish
Zinc Plated
Core Color
Black
Caster Sub-Type
Rigid
Includes Thread Guards
No
Tread Shape
Standard
Item
Rigid Caster
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Hard
Non-Marking
Yes
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyolefin
Operating Temperature Range
-45 Degrees to 180 Degrees F
Application
Store Fixtures, Stoage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Series
2
Load Rating Range
0 to 299 lb
Caster Stem Type
Top Plate
Caster Frame Material
Steel
Wheel Core Material
Polyolefin
Caster Plate Hole Pattern
C
Outside Bolt Hole Spacing
1-3/4 in X 3-13/16 in
Number of Wheels
1
Number of Mounting Holes
4
Inside Bolt Hole Spacing
1-3/4 in X 2-13/16 in
Caster Mounting Type
Plate
System of Measurement
Inch
Load Capacity - Maximum
200 lb
Wheel Hardness Rating
70 Shore D
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot

Description

Rigid, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
