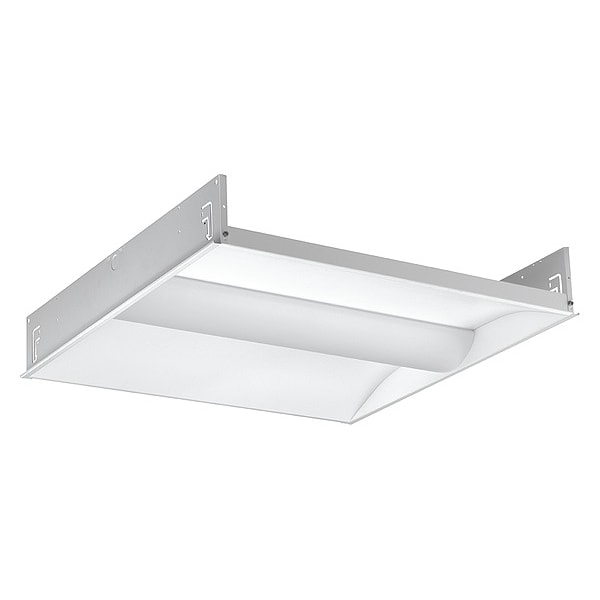

Recessed Troffer, 2 ft L, 3833 lm, 32W

  • Mfr # LCAT22-50HLG-EDU

  • Zoro # G7394871


product price: $116.99
/ea
Free Shipping & Returns

Key Features

Fixture Item
Recessed Troffer
Nominal Size - Fixtures
2 ft x 2 ft
Lighting Technology
LED
Voltage
120 to 277V AC
Lighting Certification
DesignLights Consortium (DLC) 5.0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCAT22-50HLG-EDU
Zoro #
G7394871
UPC #
785311290950
Country of Origin
Mexico

Dimensions

Nominal Size - Fixtures
2 ft x 2 ft
Fixture Height
4 in
Fixture Length
23 7/8 in
Fixture Width
23 29/32 in
Nominal Size
2 ft x 2 ft
Overall Height
4 in
Overall Length
23 3/4 in
Overall Width
23 3/4 in

Details

Item
Recessed Troffer
Fixture Item
Recessed Troffer
Lighting Technology
LED
Voltage
120 to 277V AC
Lighting Certification
DesignLights Consortium (DLC) 5.0
Watts
32
Lamp Type - Fixtures
Integrated LED
Dimmable
Yes
Lumens
3,833 lm
Color Temperature
5000K
Color Rendering Index
80
Max. Fixture Wattage
32 W
Emergency Back Up Battery
No
Fixture Rated Life
60,000 hr
CRI
83
Fixture Warranty
5 yr Limited Warranty
Color Temp.
5000K
Lumens Per Watt
129.0
Bulb Technology
LED
LED Replacement For
U-Bend T8
Fixture Temp. Range
-20 Degrees to 25 Degrees C
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Standards
cCSAus Certified, Chicago Plenum Approved, CSA Certified, IC Rated, UL 1598 Listed, UL 2108, UL 924
Fixture Voltage
120 to 277
Green Certification or Other Recognition
DesignLights Consortium (DLC)
Housing Color
White
Rated Life
60,000 hr
Housing Material
Steel
Lumens per Watt
121 lm/W
Light Technology
LED
Ballast Start Type
No Ballast
Emergency Battery Backup
No
Bulb Included
Yes
Max. Ambient Temp.
77 Degrees F
Lens Shape
Center Basket
Min. Ambient Temp.
-4 Degrees F
Fixture Ballast Type
No Ballast Required
Finish
Matte
For Bulb Type
Integrated LED
Lens Material
Acrylic
Sensor Type
No Sensor
Dimming Method
0 to 10V
Series
LCAT

Description

2 ft x 2 ft, Lens Shape Center Basket, 5000K, 3,833 lm, 121 lm/W, LED, LED Replacement For U-Bend T8, Bulb Included Yes, For Bulb Type Integrated LED, Lamp Quantity Not Applicable, Fixture Ballast Type No Ballast Required, Sensor Type No Sensor, Max. Fixture Wattage 32 W, Color Rendering Index 80, 120 to 277V AC, Lighting Certification DesignLights Consortium (DLC) 5.0, Dimmable Yes, Emergency Battery Backup No, Series LCAT
