  11. 1/2" 50 OHM HELIAX CABLEBLK FIRE RETARDANT JKT CATVRCORRUGATED, PK1000
This item is Discontinued.

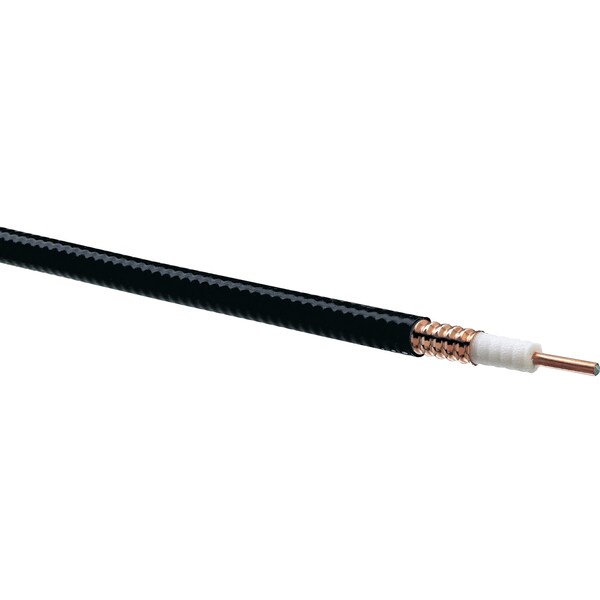

Commscope 1/2" 50 OHM HELIAX CABLEBLK FIRE RETARDANT JKT CATVRCORRUGATED, PK1000 LDF4RK-50A

1/2" 50 OHM HELIAX CABLEBLK FIRE RETARDANT JKT CATVRCORRUGATED, PK1000 (Discontinued)

  • Mfr # LDF4RK-50A
  • Zoro # G7890921
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LDF4RK-50A
Zoro #
G7890921
UPC #
-
Country of Origin
Unknown

Dimensions

Diameter Over Jacket
16.002 mm | 0.63 in
Minimum Bend Radius, multiple Bends
127 mm | 5 in
Diameter Over Dielectric
12.954 mm | 0.51 in
Minimum Bend Radius, Single Bend
50.8 mm | 2 in
Nominal Size
1/2 in

Details

Jacket Color
Black
Jacket Material
Non-halogenated, fire retardant polyolefin
Capacitance
75.8 pF/m | 23.104 pF/ft
Flat Plate Crush Strength
2 kg/mm | 111.995 lb/in
Installation temperature
-40 °C to +60 °C (-40 °F to +140 °F)
Inner Conductor Material
Copper-clad aluminum wire
Number of Bends, typical
50
Attenuation, Ambient Temperature
20 °C | 68 °F
Average Power, Inner Conductor Temperature
100 °C | 212 °F
EN50575 CPR Cable EuroClass Smoke Rating
s1a
ISO 9001:2015
Designed, manufactured and/or distributed under this quality management system
dc Test Voltage
4000 V
Smoke Index Test Method
IEC 61034
Storage Temperature
-40 °C to +60 °C (-40 °F to +140 °F)
dc Resistance, Outer Conductor
2.69 ohms/km | 0.82 ohms/kft
Toxicity Index Test Method
IEC 60754-1 | IEC 60754-2
Insulation Resistance
100000 MOhms-km
Jacket Spark Test Voltage (rms)
5000 V
Operating Frequency Band
1 " 8800 MHz
Flexibility
Standard
Inner Conductor OD
4.826 mm | 0.19 in
Outer Conductor Material
Corrugated copper
Tensile Strength
113 kg | 249.122 lb
Product Type
Coaxial wireless cable
EN50575 CPR Cable EuroClass Droplets Rating
d1
Product Series
LDF4-50A
UL/ETL Certification
CATVR/CMR
Fire Retardancy Test Method
NFPA 130-2010 | UL 1666/CATVR/CMR
Average Power, Ambient Temperature
40 °C | 104 °F
Cable Impedance
50 ohm ±1 ohm
Bending Moment
3.8 N-m | 33.633 in lb
EN50575 CPR Cable EuroClass Fire Performance
B2ca
Operating Temperature
-40 °C to +60 °C (-40 °F to +140 °F)
EN50575 CPR Cable EuroClass Acidity Rating
a1
Ordering Note
CommScope® standard product in Asia Pacific | CommScope® standard product in Europe, the Middle East, and Africa
dc Resistance, Inner Conductor
1.48 ohms/km | 0.451 ohms/kft
Peak Power
40 kW
Velocity
0.88
Inductance
0.19 µH/m | 0.058 µH/ft
Dielectric Material
Foam PE
Outer Conductor OD
13.97 mm | 0.55 in
Number of Bends, minimum
15

Description

1/2" 50 OHM HELIAX CABLEBLK FIRE RETARDANT JKT CATVRCORRUGATED COPPER

Restrictions

This item has been restricted from sale in the following states: CA
