Commscope Replacement for Commscope F1tsm-c F1TSM-C COMMSCOPE - main

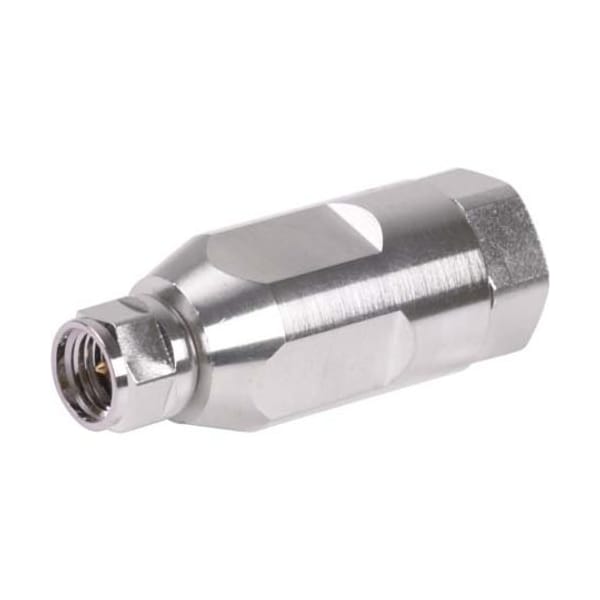

Replacement for Commscope F1tsm-c

  • Mfr # F1TSM-C COMMSCOPE

  • Zoro # G702957463

product price:  $92.19
/ea

Key Features

Height
14.22 mm | 0.560 in
Length
36.58 mm | 1.440 in
Width
14.22 mm | 0.560 in
Peak Power maximum
5 kW
Shielding Effectiveness
-110 dB
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F1TSM-C COMMSCOPE
Zoro #
G702957463
UPC #
-
Country of Origin
China

Dimensions

Height
14.22 mm | 0.560 in
Length
36.58 mm | 1.440 in
Width
14.22 mm | 0.560 in
Nominal Size
1/4 in
Diameter
14.22 mm | 0.560 in

Details

Peak Power maximum
5 kW
Shielding Effectiveness
-110 dB
Operating Frequency Band
0 - 6000 MHz
Coupling Nut Retention Force
266.98 N | 60.020 lbf
Insulation Resistance minimum
5000 mOhm
Cable Impedance
50 ohm
Operating Temperature
-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature
-65 °C to +125 °C (-85 °F to +257 °F)
Outer Contact Plating
Trimetal
Coupling Nut Proof Torque
1.7 N-m | 15.046 in lb
Pressurizable
No
Mounting Angle
Straight
Body Style
Straight
Connector Retention Tensile Force
449.27 N | 101.000 lbf
Product Series
FSJ1-50A
Interface Durability
500 cycles
dc Test Voltage
1000 V
Interface
SMA Male
Average Power at Frequency
0.4 kW @ 900 MHz
Connector Impedance
50 ohm
Inner Contact Plating
Gold

Description

Replacement for Commscope F1tsm-c
