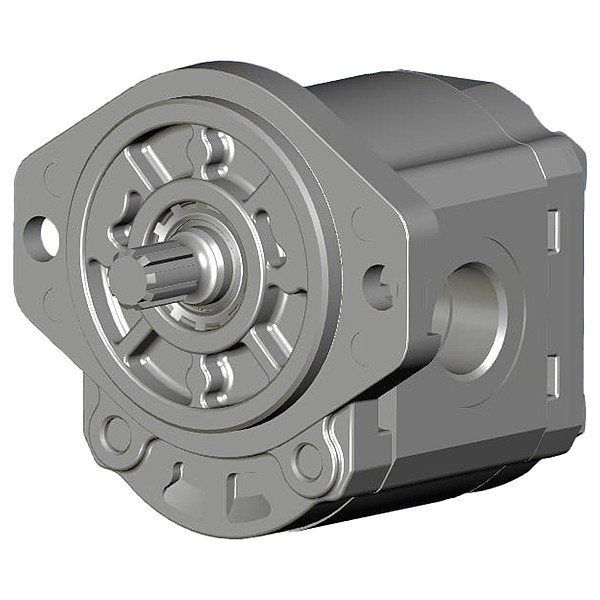

HydraulicGearPump, 3,625psi, 17.7gpm, Al
- Mfr # CP09A1B190L03FA103N
- Zoro # G411370218
product price:Â
$
156.99
/ea
Free Shipping & Returns
Key Features
Rotation
CCW
Shaft Outer Diameter
5/8 in
Motor Speed - Minimum
500 RPM
Continuous Pressure- Maximum
3,625 psi
Motor Speed - Maximum
3,000 RPM
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CP09A1B190L03FA103N
- Zoro #
- G411370218
- UPC #
- -
- Country of Origin
- China
- Item
- Hydraulic Gear Pump
- Rotation
- CCW
- Motor Speed - Minimum
- 500 RPM
- Continuous Pressure- Maximum
- 3,625 psi
- Motor Speed - Maximum
- 3,000 RPM
- Shaft Type
- Spline
- Flow Rate - Minimum
- 8.85 gpm
- Flow Rate - Maximum
- 17.7 gpm
- Displacement per Revolution
- 1.16 cu in/rev
- Media Intake Connection Type
- SAE
- Housing Material
- Aluminum
- Series
- C800
- Continuous Pressure - Maximum
- 3,625 psi
- Spline Shaft Number of Teeth
- 9
- Discharge Connection Type
- SAE
- Number of Stages
- 1
- Hydraulic Pressure Port Location
- Side
- Rated Speed
- 3,000 RPM
- Product Type
- Hydraulic Gear Pump
- Spline Shaft Series
- SAE A
Description
Hydraulic Gear Pump, Displacement per Revolution 1.16 cu in/rev, Media Intake Connection Size 1-5/16 In., Discharge Connection Size 1-1/16 In., Continuous Pressure- Maximum 3,625 psi, Motor Speed - Maximum 3,000 RPM, Motor Speed - Minimum 500 RPM, Shaft Type Spline, Rotation CCW, Housing Material Aluminum, Mounting Type 2 Bolt SAE A, Flow Rate - Maximum 17.7 gpm, Flow Rate - Minimum 8.85 gpm, Media Intake Connection Type SAE, Shaft Outer Diameter 5/8 in
