  11. Inlet Control Filter, 1/2 In MNPT

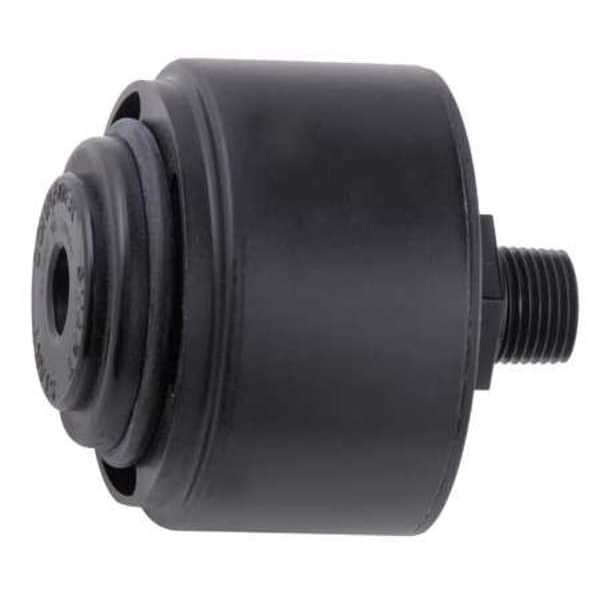

Conrader Inlet Control Filter, 1/2 In MNPT AIC12 - main

Inlet Control Filter, 1/2 In MNPT

  • Mfr # AIC12

  • Zoro # G4285644

product price: $8.79
/ea

Key Features

Max. Flow (CFM)
15 cfm
Filter Media
Polyurethane Foam
Nipple Length (In.)
3/5 in
For Use With
Electric Air Compressors 5 hp and Below
Dia. (In.)
2 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AIC12
Zoro #
G4285644
UPC #
-
Country of Origin
United States

Dimensions

Nipple Length (In.)
3/5 in
Dia. (In.)
2 5/8 in
Length (In.)
3 in
Outside Diameter
2.62 in
Overall Height
2.94 in
Nipple Length
0.6 in
Outlet Size
1/2 in
Inlet Size
1/2 in
Overall Length
3 in

Details

Max. Flow (CFM)
15 cfm
Filter Media
Polyurethane Foam
For Use With
Electric Air Compressors 5 hp and Below
Temp. Range (F)
0 Degrees to 300 Degrees F
Item
Inlet Control Filter
Housing Material
Nylon 6/6
(M)NPT Outlet (In.)
1/2 in
Number of Pieces
1
Element Material
Foam
Outlet Connection Type
NPT
Maximum Air Flow
15 cfm
Compatible Product Type
Electric Air Compressors 5HP and Below
Features
Eliminate Tripped Circuit Breakers, Permits Multiple Tools to be Used on the Same Circuit, Reduces Amperage Draw During Start-Up, Smart Start Inlet Control Filter
Number of Air Outlets
1
Outlet Gender
Male
Inlet Gender
Male
Inlet Connection Type
NPT
Maximum Operating Temperature
300 Degrees F

Description

Inlet Control Filter, Outlet Size 1/2 in, Outlet Gender Male, Outlet Connection Type NPT, Overall Height 2.94 in, Outside Diameter 2.62 in, Element Material Foam, Housing Material Nylon 6/6, Overall Length 3 in, Nipple Length 0.6 in, Number of Air Outlets 1, Maximum Operating Temperature 300 Degrees F

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
