  11. 3/4" ID x 50 ft EPDM Coupled Washdown Hose WT

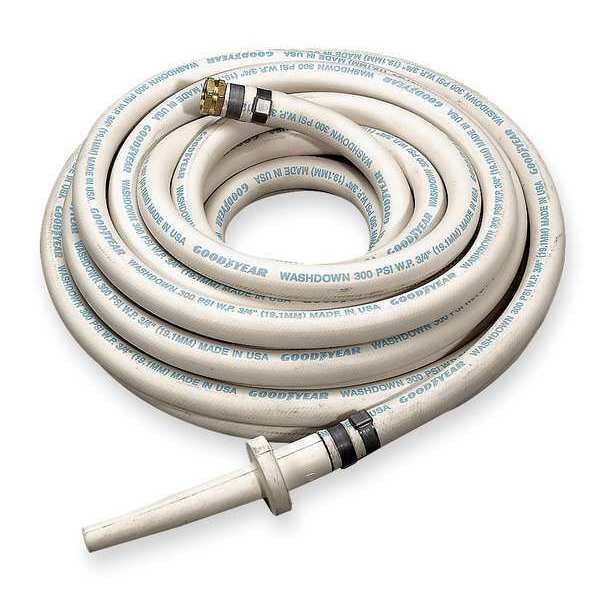

Continental 3/4" ID x 50 ft EPDM Coupled Washdown Hose WT 20069315 - main

3/4" ID x 50 ft EPDM Coupled Washdown Hose WT

  • Mfr # 20069315

  • Zoro # G1590434

product price: $180.99
/ea
Free Shipping & Returns

Key Features

Hose Inside Dia.
3/4 in
Hose Length
50 ft
Hose Color
White
Temp. Range
-40 Degrees to 200 Degrees F
Hose Cover Material
EPDM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
20069315
Zoro #
G1590434
UPC #
00194484254025
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/4 in
Hose Length
50 ft
Hose Outside Dia.
1 3/16 in
Fitting Size
3/4 in x 3/4 in
Washdown Hose Fitting Size
3/4" (F)GHT x Nozzle
Washdown Hose Length
50 ft.
Fitting Size - Washdown Hose
3/4" (F)GHT x Nozzle
Inside Dia.
3/4"
Length - Washdown Hose
50 ft.
Inside Dia. - Washdown Hose
3/4"
Outside Dia.
1.17
Washdown Hose Inside Dia.
3/4"
Length
50 ft.
Hose Fitting A Size
3/4 in
Hose Fitting B Size
3/4 in

Details

Item
Washdown Hose
Hose Color
White
Temp. Range
-40 Degrees to 200 Degrees F
Hose Cover Material
EPDM
Safety Factor
4:1
Meets
ARPM Class C
Tube Material
EPDM
Washdown Hose Tube Material
EPDM
Cover Material
EPDM
Tube Material - Washdown Hose
EPDM
Type - Washdown Hose
Washdown Hose
Washdown Hose Color
White
Washdown Hose Temp. Range
-40 Degrees to 200 Degrees F
Washdown Hose Cover Material
EPDM
Washdown Hose Max. Pressure
300 psi
Color
White
Coupled Assembly / Bulk
Coupled Assembly
Temp. Range - Washdown Hose
-40 Degrees to 200 Degrees F
Reinforcement
Textile
Color - Washdown Hose
White
Washdown Hose Type
Washdown Hose
Max. Pressure
300 psi
Nozzle Type
Tapered
Cover Material - Washdown Hose
EPDM
Hose Configuration
Coupled Assembly
Max. Pressure - Washdown Hose
300 psi
Fitting Material
Carbon Steel x Carbon Steel
Fitting Type
FGHT x FGHT
Hose Fittings
3/4 in FGHT x Nozzle
Hose Fitting A Type
FGHT
Antimicrobial
No
Hose Fitting B Material
Carbon Steel
Hose Tube Material
EPDM
Hose Fitting B Type
FGHT
Hose Fitting A Material
Carbon Steel
Standards
ARPM Class C
Max. Working Pressure @ 70 F
300 psi
Not Recommended Chemicals
Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (37%), Hydrogen Peroxide, Kerosene, Liquid Propane, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Oxygen, Parrafins (Wax), Potassium Hydroxide (50%), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Steam, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
For Media Type
Acetic Acid, Air, Bleach, Calcium Chloride, Carbon Dioxide, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Glycerin, Isopropanol, Ketones, Methanol, Nitrogen Gas, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Solvents, Sulfuric Acid, Water

Description

Washdown Hose, Hose Inside Dia. 3/4 in, Hose Outside Dia. 1 3/16 in, Hose Length 50 ft, Hose Color White, Hose Tube Material EPDM, Hose Cover Material EPDM, Max. Working Pressure @ 70 F 300 psi, Temp. Range -40 Degrees to 200 Degrees F, Standards ARPM Class C, Safety Factor 4:1, Hose Fitting A Size 3/4 in, Hose Fitting B Size 3/4 in, Hose Fitting A Material Carbon Steel, Hose Fitting B Material Carbon Steel, Hose Fitting A Type FGHT, Hose Fitting B Type FGHT, Hose Configuration Coupled Assembly
