Continental

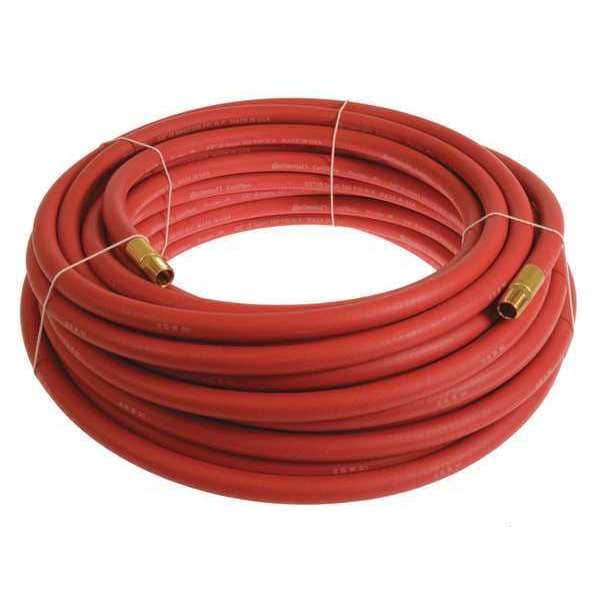

3/8" x 100 ft EPDM Coupled Air Hose 250 psi Red

product price: $264.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pneumatic Hose Length 100 ft.
  • Tube Material EPDM
  • Cover Material EPDM
  • Hose Media Air, Mild Chemicals, Water
  • Pneumatic Hose Thread Type (M)NPT x (M)NPT
See all product information

Product Information

Dimensions

Pneumatic Hose Length 100 ft.
Outside Dia. 0.700"
Pneumatic Hose Fitting Size 3/8"
Pnuematic Hose Fitting Size 3/8"
Pneumatic Hose Inside Dia. 3/8"
Fitting Size 3/8 in x 3/8 in
Hose Fitting B Size 3/8 in
Hose Length 100 ft
Hose Inside Dia. 3/8 in
Hose Fitting A Size 3/8 in
Hose Outside Dia. 11/16 in

Details

Item Air Hose
Tube Material EPDM
Cover Material EPDM
Hose Media Air, Mild Chemicals, Water
Pneumatic Hose Thread Type (M)NPT x (M)NPT
Hose Configuration Coupled Assembly
Pneumatic Hose Color Red
Pneumatic Hose Max. Pressure 250 psi
Pneumatic Hose Product Group Air Hose
Pneumatic Hose Temp. Range -40 Degrees to 190 Degrees F
Meets RMA Class C
Coupling Material Brass
Coupled Assembly / Bulk Coupled Assembly
Reinforcement Synthetic Yarn
Safety Factor 4:1
Temp. Range -40 Degrees to 210 Degrees F
Hose Cover Material EPDM
Max. Working Pressure @ 70 F 250 psi
Hose Color Red
Standards RMA Class C
Hose Fitting B Material Brass
Hose Fitting A Type MNPT
Hose Fitting B Type MNPT
Hose Fittings Brass 3/8 in MNPT x Brass 3/8 in MNPT
Hose Tube Material EPDM
Hose Fitting A Material Brass
Fitting Type MNPT x MNPT
Fitting Material Brass x Brass
For Media Type Air, Lubricated Air, Water
Compatible Chemicals Deionized Water, Fresh Water

Description

Air Hose, Hose Inside Dia. 3/8 in, Hose Outside Dia. 11/16 in, Hose Length 100 ft, Hose Color Red, Hose Tube Material EPDM, Hose Cover Material EPDM, Max. Working Pressure @ 70 F 250 psi, Temp. Range -40 Degrees to 210 Degrees F, Standards RMA Class C, Safety Factor 4:1, Hose Fitting A Material Brass, Hose Fitting B Material Brass, Hose Fitting A Type MNPT, Hose Fitting B Type MNPT, Hose Fitting A Size 3/8 in, Hose Fitting B Size 3/8 in, Hose Configuration Coupled Assembly
