  11. Air Hose, 1/2" I.D., 300 psi, 100 ft. L

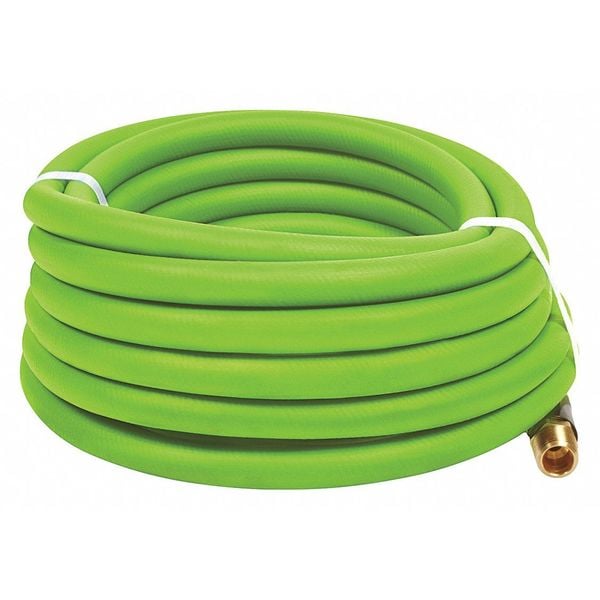

Continental Air Hose, 1/2" I.D., 300 psi, 100 ft. L F5Z05030-100-11 - main

Air Hose, 1/2" I.D., 300 psi, 100 ft. L

  • Mfr # F5Z05030-100-11

  • Zoro # G2148013

product price: $219.99
/ea
Free Shipping & Returns

Key Features

Pneumatic Hose Length
100 ft.
Tube Material
TPE
Cover Material
TPE
Hose Configuration
Coupled Assembly
Meets
RMA Class B
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F5Z05030-100-11
Zoro #
G2148013
UPC #
-
Country of Origin
United States

Dimensions

Pneumatic Hose Length
100 ft.
Outside Dia.
0.812"
Pneumatic Hose Inside Dia.
1/2"
Pneumatic Hose Fitting Size
3/8"
Pnuematic Hose Fitting Size
3/8"
Fitting Size
1/2 in x 1/2 in
Hose Fitting B Size
1/2 in
Hose Fitting A Size
1/2 in
Hose Length
100 ft
Hose Inside Dia.
12 7/10 mm
Hose Outside Dia.
20 5/8 mm

Details

Item
Air Hose
Tube Material
TPE
Cover Material
TPE
Hose Configuration
Coupled Assembly
Meets
RMA Class B
Pneumatic Hose Color
Orange
Coupling Material
Brass
Pneumatic Hose Temp. Range
-40 Degrees to 158 Degrees F
Reinforcement
Polyester Yarn
Pneumatic Hose Max. Pressure
300 psi
Coupled Assembly / Bulk
Coupled Assembly
Safety Factor
4:1
Pneumatic Hose Thread Type
(M)NPT
Temp. Range
-40 Degrees to 158 Degrees F
Hose Fitting A Type
MNPT
Hose Tube Material
TPE
Hose Fitting A Material
Brass
Standards
RMA Class B
Hose Color
Orange
Hose Fitting B Type
MNPT
Hose Fittings
Brass 3/8 in MNPT x Brass 3/8 in MNPT
Hose Cover Material
TPE
Hose Fitting B Material
Brass
Max. Working Pressure @ 70 F
300 psi
Fitting Material
Brass x Brass
Fitting Type
MNPT x MNPT
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Automatic Transmission Fluid, Beverage, Biodiesel, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, Dry Food, E85, Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Liquid Propane, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Oxygen, Paint Thinner, Phosphoric Acid (40% Solution), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Solvents, Steam, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Wet Food, Xylene
For Media Type
Air, Bleach, Calcium Chloride, Ethanol, Ethylene Glycol, Glycerin, Heptane, Hexane, Hydrogen Peroxide, Isopropanol, Methanol, Nitric Acid, Nitrogen Gas, Parrafins (Wax), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water, Windshield Washer Fluid

Description

Air Hose, Hose Inside Dia. 12 7/10 mm, Hose Outside Dia. 20 5/8 mm, Hose Length 100 ft, Hose Color Orange, Hose Tube Material TPE, Hose Cover Material TPE, Max. Working Pressure @ 70 F 300 psi, Temp. Range -40 Degrees to 158 Degrees F, Standards RMA Class B, Safety Factor 4:1, Hose Fitting A Material Brass, Hose Fitting B Material Brass, Hose Fitting A Type MNPT, Hose Fitting B Type MNPT, Hose Fitting A Size 1/2 in, Hose Fitting B Size 1/2 in, Hose Configuration Coupled Assembly
