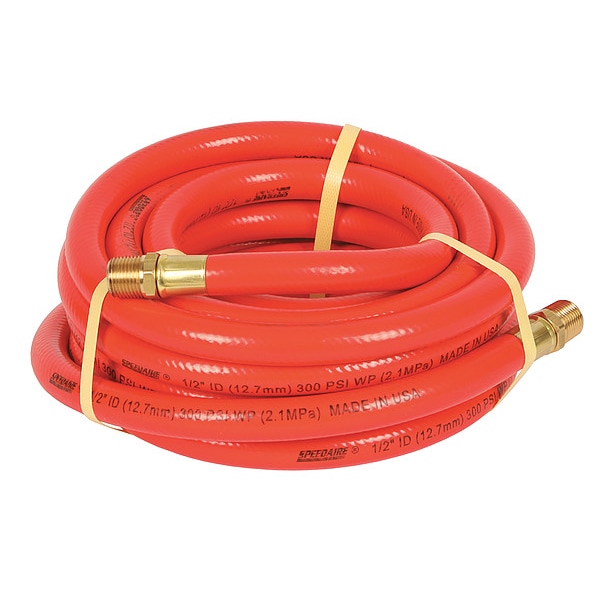

Air Hose, 1/2" I.D., 300 psi, 25 ft. L

Mfr # F5Z05030-25-11
Zoro # G2147749

97.15

Key Features

Pneumatic Hose Length

25 ft.

Tube Material

TPE

Cover Material

TPE

Pneumatic Hose Inside Dia.

1/2"

Pnuematic Hose Fitting Size

1/2"

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: F5Z05030-25-11
Zoro #: G2147749
UPC #: -
Country of Origin: United States

Dimensions

Pneumatic Hose Length: 25 ft.
Pneumatic Hose Inside Dia.: 1/2"
Pnuematic Hose Fitting Size: 1/2"
Outside Dia.: 0.812"
Pneumatic Hose Fitting Size: 1/2"
Fitting Size: 1/2 in x 1/2 in
Hose Fitting A Size: 1/2 in
Hose Inside Dia.: 1/2 in
Hose Fitting B Size: 1/2 in
Hose Length: 25 ft
Hose Outside Dia.: 7/8 in

Details

Item: Air Hose
Tube Material: TPE
Cover Material: TPE
Reinforcement: Polyester Yarn
Pneumatic Hose Max. Pressure: 300 psi
Pneumatic Hose Thread Type: (M)NPT
Pneumatic Hose Temp. Range: -40 Degrees to 190 Degrees F
Pneumatic Hose Color: Orange
Meets: RMA Class B
Hose Configuration: Coupled Assembly
Safety Factor: 4:1
Coupling Material: Brass
Coupled Assembly / Bulk: Coupled Assembly
Temp. Range: -40 Degrees to 158 Degrees F
Standards: RMA Class B
Hose Cover Material: TPE
Max. Working Pressure @ 70 F: 300 psi
Hose Fitting A Material: Brass
Hose Color: Orange
Hose Tube Material: TPE
Hose Fitting B Material: Brass
Hose Fittings: Brass 1/2 in MNPT x Brass 1/2 in MNPT
Hose Fitting B Type: MNPT
Hose Fitting A Type: MNPT
Fitting Type: MNPT x MNPT
Fitting Material: Brass x Brass
For Media Type: Air,Bleach,Calcium Chloride,Ethanol,Ethylene Glycol,Glycerin,Heptane,Hexane,Hydrogen Peroxide,Isopropanol,Methanol,Nitric Acid,Nitrogen Gas,Parrafins (Wax),Potassium Hydroxide (50%),Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide,Sulfuric Acid,Water,Windshield Washer Fluid
Not Recommended Chemicals: Acetic Acid (Glacial),Acetone,Ammonia (Liquids),Ammonium Hydroxide,Anhydrous Ammonia,Automatic Transmission Fluid,Beverage,Biodiesel,Brake Fluid,Chromic Acid 30%,Chromic Acid 50%,Cyclohexane,DEF,Diesel Fuel,Dry Food,E85,Ethyl Acetate,Formaldehyde,Formaldehyde 40%,Formic Acid,Fuel Oil,Gasoline,Hydraulic Fluid (Petroleum),Hydraulic Fluid (Synthetic),Hydrochloric/Muriatic Acid (100%),Hydrochloric/Muriatic Acid (20%),Hydrochloric/Muriatic Acid (37%),Hydrofluoric Acid (20%),Hydrofluoric Acid (75%),Hydrofluoric Acid 100%,Kerosene,Liquid Propane,LP Gas,Lubricated Air,Methyl Chloride,Methyl Ethyl Ketone (MEK),Motor Oil,Naphtha,Natural Gas,Nitric Acid (20% Solution),Nitric Acid (50% Solution),Nitric Acid (Concentrated Solution),Oxygen,Paint Thinner,Phosphoric Acid (40% Solution),Refrigerant R-12,Refrigerant R-134a,Refrigerant R-22,Refrigerant R-404A,Refrigerant R-407C,Refrigerant R-502,Solvents,Steam,Stoddard Solvent (Mineral Spirits),Sulfuric Acid (75% - 100%),Toluene,Trichlorethylene (50%),Turpentine,Wet Food,Xylene

Description

Air Hose, Hose Inside Dia. 1/2 in, Hose Outside Dia. 7/8 in, Hose Length 25 ft, Hose Color Orange, Hose Tube Material TPE, Hose Cover Material TPE, Max. Working Pressure @ 70 F 300 psi, Temp. Range -40 Degrees to 158 Degrees F, Standards RMA Class B, Safety Factor 4:1, Hose Fitting A Material Brass, Hose Fitting B Material Brass, Hose Fitting A Type MNPT, Hose Fitting B Type MNPT, Hose Fitting A Size 1/2 in, Hose Fitting B Size 1/2 in, Hose Configuration Coupled Assembly
