Continental

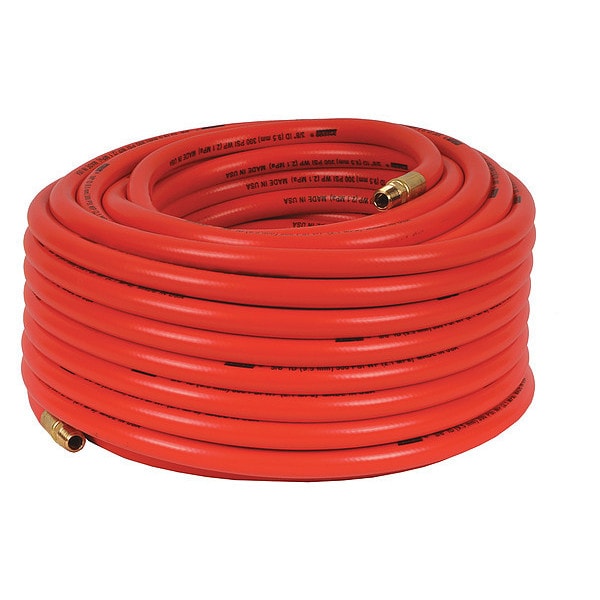

Air Hose, 3/8" I.D., 300 psi, 100 ft. L

product price: $182.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pneumatic Hose Length 100 ft.
  • Tube Material TPE
  • Cover Material TPE
  • Pneumatic Hose Temp. Range -40 Degrees to 158 Degrees F
  • Meets RMA Class B
See all product information

Product Information

Dimensions

Pneumatic Hose Length 100 ft.
Pneumatic Hose Fitting Size 1/4"
Pneumatic Hose Inside Dia. 3/8"
Outside Dia. 0.640"
Pnuematic Hose Fitting Size 1/4"
Fitting Size 1/4 in x 1/4 in
Hose Inside Dia. 3/8 in
Hose Fitting B Size 1/4 in
Hose Length 100 ft
Hose Fitting A Size 1/4 in
Hose Outside Dia. 5/8 in

Details

Item Air Hose
Tube Material TPE
Cover Material TPE
Pneumatic Hose Temp. Range -40 Degrees to 158 Degrees F
Meets RMA Class B
Pneumatic Hose Max. Pressure 300 psi
Coupling Material Brass
Hose Configuration Coupled Assembly
Safety Factor 4:1
Pneumatic Hose Thread Type (M)NPT
Pneumatic Hose Color Orange
Coupled Assembly / Bulk Coupled Assembly
Reinforcement Polyester Yarn
Temp. Range -40 Degrees to 158 Degrees F
Standards RMA Class B
Hose Fittings Brass 1/4 in MNPT x Brass 1/4 in MNPT
Hose Fitting A Material Brass
Hose Tube Material TPE
Hose Cover Material TPE
Hose Fitting B Type MNPT
Max. Working Pressure @ 70 F 300 psi
Hose Color Orange
Hose Fitting B Material Brass
Hose Fitting A Type MNPT
Fitting Material Brass x Brass
Fitting Type MNPT x MNPT
Not Recommended Chemicals Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Automatic Transmission Fluid, Beverage, Biodiesel, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, Dry Food, E85, Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Liquid Propane, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Oxygen, Paint Thinner, Phosphoric Acid (40% Solution), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Solvents, Steam, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Wet Food, Xylene
For Media Type Air, Bleach, Calcium Chloride, Ethanol, Ethylene Glycol, Glycerin, Heptane, Hexane, Hydrogen Peroxide, Isopropanol, Methanol, Nitric Acid, Nitrogen Gas, Parrafins (Wax), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water, Windshield Washer Fluid

Description

Air Hose, Hose Inside Dia. 3/8 in, Hose Outside Dia. 5/8 in, Hose Length 100 ft, Hose Color Orange, Hose Tube Material TPE, Hose Cover Material TPE, Max. Working Pressure @ 70 F 300 psi, Temp. Range -40 Degrees to 158 Degrees F, Standards RMA Class B, Safety Factor 4:1, Hose Fitting A Material Brass, Hose Fitting B Material Brass, Hose Fitting A Type MNPT, Hose Fitting B Type MNPT, Hose Fitting A Size 1/4 in, Hose Fitting B Size 1/4 in, Hose Configuration Coupled Assembly
