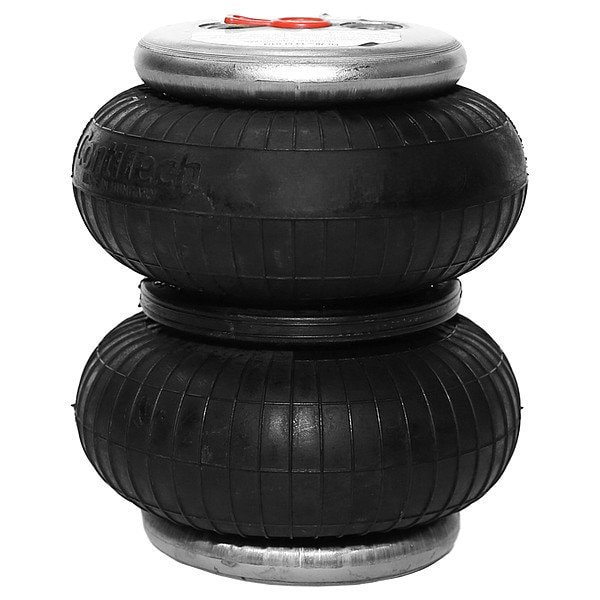

FD 110-15 CI 3/4 NPT (CA)
Mfr # FD 110-15 CI 3/4 NPT (CA)
Zoro # G311208154
product price:Â
$
261.99
/ea
Additional $110.00 delivery surcharge applies per item.
Key Features
Air Inlet Thread Size
3/4 in
Operating Pressure - Minimum
0 psi
Operating Pressure - Maximum
120 psi
Maximum Dynamic Load Capacity
1,050 lbf @ 60 psi, 1,400 lbf @ 80 psi, 1,770 lbf @ 100 psi, 2,140 lbf @ 120 psi, 677 lbf @ 40 psi
Natural Frequency
2.3 Hz
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FD 110-15 CI 3/4 NPT (CA)
- Zoro #
- G311208154
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Air Inlet Thread Size
- 3/4 in
- Mounting Plate Diameter - Top
- 5.55 in
- Height - Compressed
- 3 in
- Compressed Diameter - Maximum
- 7.99 in
- Height - Full Stroke
- 7 in
- Mounting Plate Diameter - Bottom
- 5.55 in
Details
- Operating Pressure - Minimum
- 0 psi
- Operating Pressure - Maximum
- 120 psi
- Maximum Dynamic Load Capacity
- 1,050 lbf @ 60 psi, 1,400 lbf @ 80 psi, 1,770 lbf @ 100 psi, 2,140 lbf @ 120 psi, 677 lbf @ 40 psi
- Item
- Double Convolution Air Actuator
- Natural Frequency
- 2.3 Hz
- Number of Mounting Holess
- 4
- Spring Rate - Minimum
- 356 lbf/in
- Operating Temperature - Minimum
- -76 Degrees F
- Installation Space Required
- 8.46 in
- Air Inlet Thread Type
- NPT
- Air Spring Type
- Double Convoluted
- Operating Temperature - Maximum
- 158 Degrees F
- Mounting Hole Center to Center Distance
- 2.76 in
- Spring Rate - Maximum
- 988 lbf/in
- Air Spring Material
- Natural Rubber
- Air Inlet Location
- Center
- System of Measurement
- SAE
Description
Double Convolution Air Actuator, Air Inlet Location Center, Air Inlet Thread Size 3/4 in, Air Inlet Thread Type NPT, Air Spring Material Natural Rubber, Air Spring Type Double Convoluted, Compressed Diameter - Maximum 7.99 in, Height - Compressed 3 in, Height - Full Stroke 7 in, Installation Space Required 8.46 in, Maximum Dynamic Load Capacity 1,050 lbf @ 60 psi, 1,400 lbf @ 80 psi, 1,770 lbf @ 100 psi, 2,140 lbf @ 120 psi, 677 lbf @ 40 psi, Mounting Hole Center to Center Distance 2.76 in
