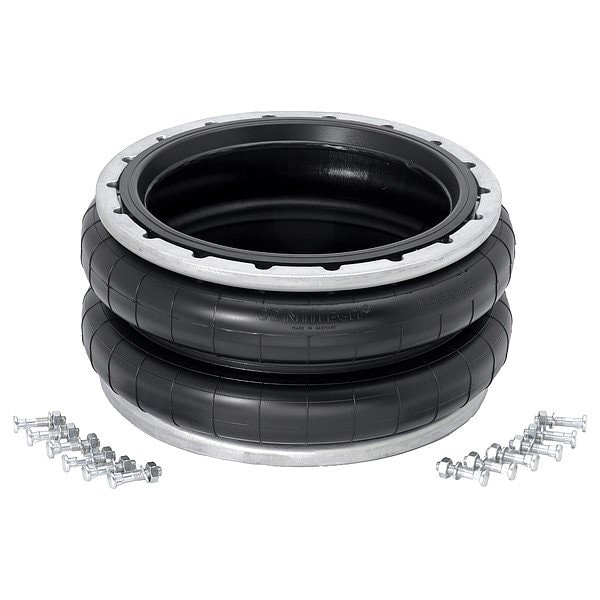

FD 960-22 RS UNF ECO
Mfr # FD 960-22 RS UNF ECO
Zoro # G512488706
product price:Â $3,180.99
/ea
Free Shipping & Returns
Key Features
Height - Full Stroke
9 in
Maximum Dynamic Load Capacity
11,300 lbf @ 80 psi, 14,000 lbf @ 100 psi, 16,600 lbf @ 120 psi, 5,740 lbf @ 40 psi, 8,230 lbf @ 60 psi
Mounting Plate Diameter - Top
15.12 in
Natural Frequency
1.7 Hz
Installation Space Required
19.49 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FD 960-22 RS UNF ECO
- Zoro #
- G512488706
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Height - Full Stroke
- 9 in
- Mounting Plate Diameter - Top
- 15.12 in
- Compressed Diameter - Maximum
- 17.72 in
- Mounting Hole Size
- 3/8 in
- Mounting Plate Diameter - Bottom
- 15.12 in
- Height - Compressed
- 4 in
- Air Inlet Thread Size
- 10 mm
Details
- Maximum Dynamic Load Capacity
- 11,300 lbf @ 80 psi, 14,000 lbf @ 100 psi, 16,600 lbf @ 120 psi, 5,740 lbf @ 40 psi, 8,230 lbf @ 60 psi
- Natural Frequency
- 1.7 Hz
- Installation Space Required
- 19.49 in
- Spring Rate - Maximum
- 4,310 lbf/in
- Operating Temperature - Minimum
- 4 Degrees F
- Operating Pressure - Minimum
- 0 psi
- Air Spring Type
- Double Convoluted
- Air Spring Material
- Epichlorohydrin
- Item
- Double Convolution Air Actuator
- Operating Temperature - Maximum
- 266 Degrees F
- Operating Pressure - Maximum
- 120 psi
- Air Inlet Thread Type
- UNF
- Number of Mounting Holess
- 36
- Spring Rate - Minimum
- 1,670 lbf/in
- Mounting Hole Center to Center Distance
- 13.78 in
- System of Measurement
- SAE
Description
Double Convolution Air Actuator, Air Inlet Location Not Applicable, Air Inlet Thread Size 10 mm, Air Inlet Thread Type UNF, Air Spring Material Epichlorohydrin, Air Spring Type Double Convoluted, Compressed Diameter - Maximum 17.72 in, Height - Compressed 4 in, Height - Full Stroke 9 in, Installation Space Required 19.49 in, Maximum Dynamic Load Capacity 11,300 lbf @ 80 psi, 14,000 lbf @ 100 psi, 16,600 lbf @ 120 psi, 5,740 lbf @ 40 psi, 8,230 lbf @ 60 psi
