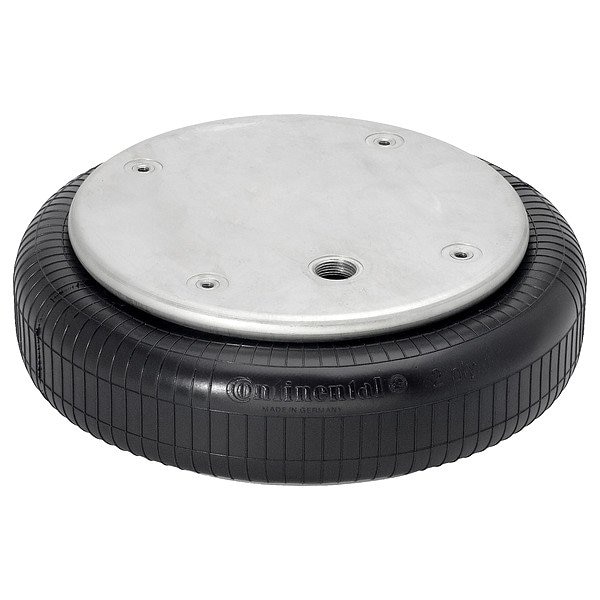

FS 200-10 CI 3/4 NPT (OS)
Mfr # FS 200-10 CI 3/4 NPT (OS)
Zoro # G411208078
product price: $256.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.
Key Features
Height - Compressed
2.5 in
Operating Pressure - Minimum
0 psi
Air Inlet Thread Type
NPT
Maximum Dynamic Load Capacity
1,130 lbf @ 40 psi, 1,750 lbf @ 60 psi, 2,420 lbf @ 80 psi, 3,100 lbf @ 100 psi, 3,630 lbf @ 120 psi
Operating Pressure - Maximum
120 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FS 200-10 CI 3/4 NPT (OS)
Zoro #
G411208078
UPC #
-
Country of Origin
Mexico
Dimensions
Height - Compressed
2.5 in
Air Inlet Thread Size
3/4 in
Compressed Diameter - Maximum
9.84 in
Mounting Plate Diameter - Top
6.34 in
Height - Full Stroke
4.5 in
Mounting Plate Diameter - Bottom
6.34 in
Details
Operating Pressure - Minimum
0 psi
Item
Single Convolution Air Actuator
Air Inlet Thread Type
NPT
Maximum Dynamic Load Capacity
1,130 lbf @ 40 psi, 1,750 lbf @ 60 psi, 2,420 lbf @ 80 psi, 3,100 lbf @ 100 psi, 3,630 lbf @ 120 psi
Operating Pressure - Maximum
120 psi
Spring Rate - Minimum
780 lbf/in
Mounting Hole Center to Center Distance
3.5 in
Air Inlet Location
Offset
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-76 Degrees F
Spring Rate - Maximum
2,510 lbf/in
Air Spring Material
Natural Rubber
Number of Mounting Holess
4
Air Spring Type
Single Convoluted
Natural Frequency
2.6 Hz
Installation Space Required
10.43 in
System of Measurement
SAE
Description
Single Convolution Air Actuator, Air Inlet Location Offset, Air Inlet Thread Size 3/4 in, Air Inlet Thread Type NPT, Air Spring Material Natural Rubber, Air Spring Type Single Convoluted, Compressed Diameter - Maximum 9.84 in, Height - Compressed 2.5 in, Height - Full Stroke 4.5 in, Installation Space Required 10.43 in, Maximum Dynamic Load Capacity 1,130 lbf @ 40 psi, 1,750 lbf @ 60 psi, 2,420 lbf @ 80 psi, 3,100 lbf @ 100 psi, 3,630 lbf @ 120 psi, Mounting Hole Center to Center Distance 3.5 in
