FS 310-12 VP ECO
Mfr # FS 310-12 VP ECO
Zoro # G011208102
product price: $339.99
/ea
Free Shipping & Returns
Key Features
Maximum Dynamic Load Capacity
26.8 kN @ 7 bar
Height - Full Stroke
175 mm
Mounting Plate Diameter - Top
172 mm
Operating Pressure - Maximum
120 psi
Operating Pressure - Minimum
0 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FS 310-12 VP ECO
Zoro #
G011208102
UPC #
-
Country of Origin
Mexico
Dimensions
Height - Full Stroke
175 mm
Mounting Plate Diameter - Top
172 mm
Compressed Diameter - Maximum
320 mm
Height - Compressed
55 mm
Mounting Plate Diameter - Bottom
172 mm
Mounting Hole Size
131 mm
Details
Maximum Dynamic Load Capacity
26.8 kN @ 7 bar
Operating Pressure - Maximum
120 psi
Operating Pressure - Minimum
0 psi
Air Spring Material
Epichlorohydrin
Air Spring Type
Single Convoluted
Operating Temperature - Maximum
266 Degrees F
Installation Space Required
335 mm
Item

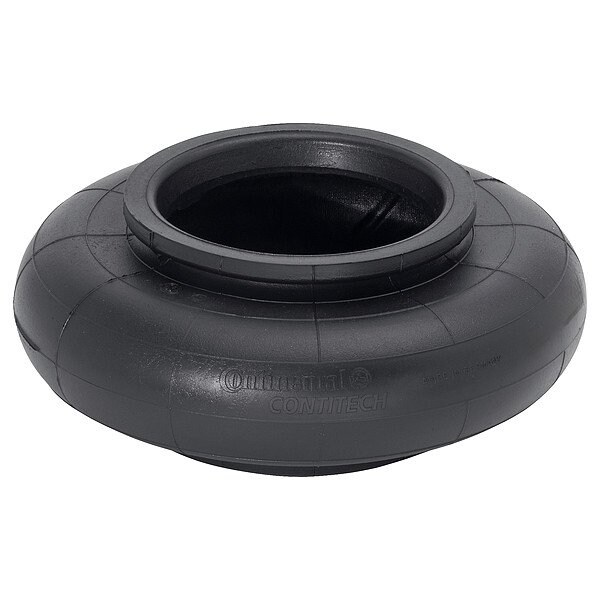

Single Convolution Air Actuator
Operating Temperature - Minimum
4 Degrees F
System of Measurement
Metric
Description
Single Convolution Air Actuator, Air Inlet Location Not Applicable, Air Inlet Thread Type Not Applicable, Air Spring Material Epichlorohydrin, Air Spring Type Single Convoluted, Compressed Diameter - Maximum 320 mm, Height - Compressed 55 mm, Height - Full Stroke 175 mm, Installation Space Required 335 mm, Maximum Dynamic Load Capacity 26.8 kN @ 7 bar, Mounting Hole Size 131 mm, Mounting Plate Diameter - Bottom 172 mm, Mounting Plate Diameter - Top 172 mm, Operating Pressure - Maximum 120 psi
