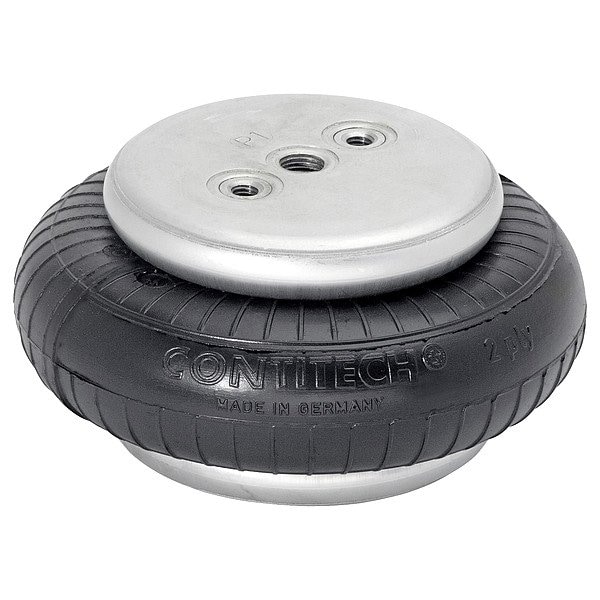

FS 50-5 CI 1/4 NPT (CA)
Mfr # FS 50-5 CI 1/4 NPT (CA)
Zoro # G511208121
product price:Â $187.99
/ea
Additional $140.00 delivery surcharge applies per item.
Key Features
Operating Temperature - Maximum
158 Degrees F
Number of Mounting Holess
4
Air Inlet Thread Size
1/4 in
Natural Frequency
3.9 Hz
Operating Pressure - Minimum
0 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FS 50-5 CI 1/4 NPT (CA)
- Zoro #
- G511208121
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Air Inlet Thread Size
- 1/4 in
- Height - Compressed
- 2.3 in
- Height - Full Stroke
- 3.3 in
- Mounting Plate Diameter - Top
- 4.25 in
- Mounting Plate Diameter - Bottom
- 4.25 in
- Compressed Diameter - Maximum
- 5.91 in
Details
- Operating Temperature - Maximum
- 158 Degrees F
- Number of Mounting Holess
- 4
- Natural Frequency
- 3.9 Hz
- Operating Pressure - Minimum
- 0 psi
- Operating Pressure - Maximum
- 120 psi
- Mounting Hole Center to Center Distance
- 1.75 in
- Air Inlet Thread Type
- NPT
- Spring Rate - Minimum
- 807 lbf/in
- Spring Rate - Maximum
- 1,950 lbf/in
- Installation Space Required
- 6.5 in
- Air Spring Type
- Single Convoluted
- Operating Temperature - Minimum
- -76 Degrees F
- Maximum Dynamic Load Capacity
- 1,170 lbf @ 100 psi, 1,420 lbf @ 120 psi, 479 lbf @ 40 psi, 699 lbf @ 60 psi, 947 lbf @ 80 psi
- Item
- Single Convolution Air Actuator
- Air Inlet Location
- Center
- Air Spring Material
- Natural Rubber
- System of Measurement
- SAE
Description
Single Convolution Air Actuator, Air Inlet Location Center, Air Inlet Thread Size 1/4 in, Air Inlet Thread Type NPT, Air Spring Material Natural Rubber, Air Spring Type Single Convoluted, Compressed Diameter - Maximum 5.91 in, Height - Compressed 2.3 in, Height - Full Stroke 3.3 in, Installation Space Required 6.5 in, Maximum Dynamic Load Capacity 1,170 lbf @ 100 psi, 1,420 lbf @ 120 psi, 479 lbf @ 40 psi, 699 lbf @ 60 psi, 947 lbf @ 80 psi, Mounting Hole Center to Center Distance 1.75 in
