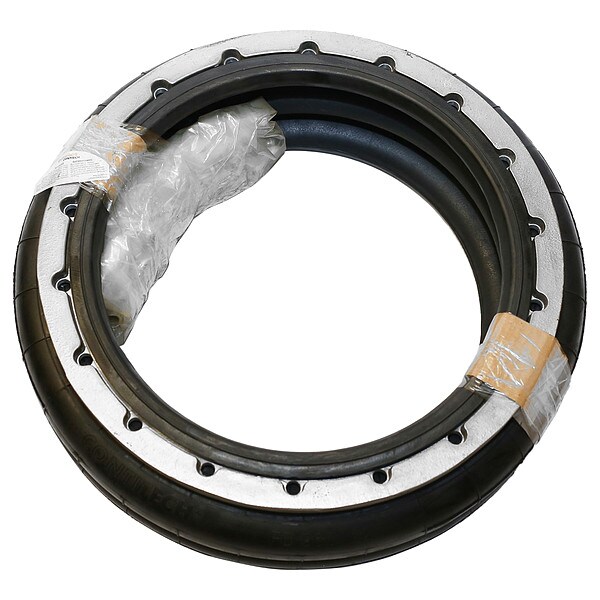

FT 960-34 RS UNF
Mfr # FT 960-34 RS UNF
Zoro # G811208074
product price:Â
$
1,865.99
/ea
Free Shipping & Returns
Key Features
Air Spring Type
Triple Convoluted
Operating Pressure - Minimum
0 psi
Operating Pressure - Maximum
120 psi
Mounting Plate Diameter - Top
15.12 in
Height - Full Stroke
16.5 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FT 960-34 RS UNF
- Zoro #
- G811208074
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Mounting Plate Diameter - Top
- 15.12 in
- Height - Full Stroke
- 16.5 in
- Mounting Plate Diameter - Bottom
- 15.12 in
- Height - Compressed
- 6 in
- Mounting Hole Size
- 3/8 in
- Air Inlet Thread Size
- 3/8 in
- Compressed Diameter - Maximum
- 18.19 in
Details
- Air Spring Type
- Triple Convoluted
- Operating Pressure - Minimum
- 0 psi
- Operating Pressure - Maximum
- 120 psi
- Operating Temperature - Minimum
- -76 Degrees F
- Operating Temperature - Maximum
- 158 Degrees F
- Maximum Dynamic Load Capacity
- 11,700 lbf @ 80 psi, 14,700 lbf @ 100 psi, 17,100 lbf @ 120 psi, 5,720 lbf @ 40 psi, 8,810 lbf @ 60 psi
- Spring Rate - Minimum
- 1,160 lbf/in
- Mounting Hole Center to Center Distance
- 13.78 in
- Air Inlet Thread Type
- UNF
- Air Spring Material
- Natural Rubber
- Number of Mounting Holess
- 36
- Spring Rate - Maximum
- 3,010 lbf/in
- Installation Space Required
- 20.08 in
- Natural Frequency
- 1.4 Hz
- Item
- Triple Convolution Air Actuator
- System of Measurement
- SAE
Description
Triple Convolution Air Actuator, Air Inlet Location Not Applicable, Air Inlet Thread Size 3/8 in, Air Inlet Thread Type UNF, Air Spring Material Natural Rubber, Air Spring Type Triple Convoluted, Compressed Diameter - Maximum 18.19 in, Height - Compressed 6 in, Height - Full Stroke 16.5 in, Installation Space Required 20.08 in, Maximum Dynamic Load Capacity 11,700 lbf @ 80 psi, 14,700 lbf @ 100 psi, 17,100 lbf @ 120 psi, 5,720 lbf @ 40 psi, 8,810 lbf @ 60 psi
