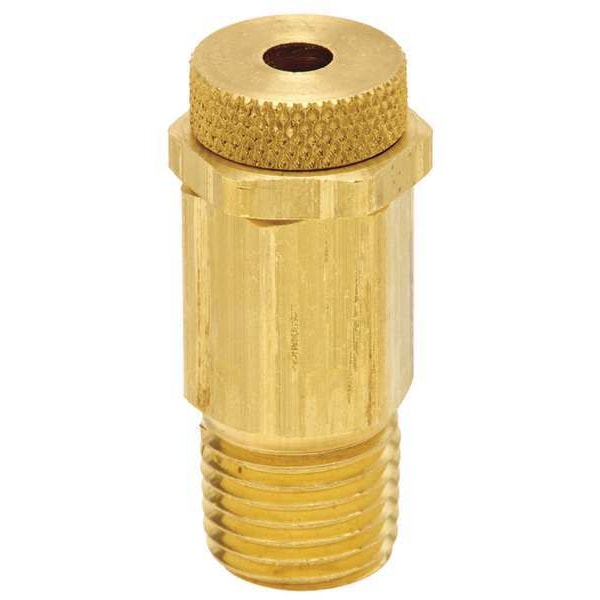

Pressure Relief Valve, 1/4in., 0 to 20 psi

Hover or click to zoom Tap to zoom
Key Features
  • Item: Pressure Relief Valve
  • Valve Inlet Port: 1/4 in NPT
  • Preset Setting (PSI): 0 to 20
  • Valve Vacuum Range: Not Rated
  • Max. CFM - Valves: 2.0
  • Max. Temp.: 250 Degrees F
  • Hex (In.): 9/16 in
  • Flow Capacity (CFM): 2
See full product details
$7.36
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Length (In.) 1 3/4 in

Details

Item Pressure Relief Valve
Valve Inlet Port 1/4 in NPT
Preset Setting (PSI) 0 to 20
Valve Vacuum Range Not Rated
Max. CFM - Valves 2.0
Max. Temp. 250 Degrees F
Hex (In.) 9/16 in
Flow Capacity (CFM) 2
Max. Temp. (F) 250
Body Material Brass
Pressure Range (PSI) 0 to 20
Poppet Stainless Steel
Rated CFM @ Set Pressure 2
Spring Material Stainless Steel
(M)NPT Inlet (In.) 1/4
Operational Pressure Range 0 to 20 psi
Seal Material Brass
Function Pressure Relief

Description

Pressure Relief Valve, Valve Inlet Port 1/4 in NPT, Preset Setting (PSI) 0 to 20, Valve Vacuum Range Not Rated, Max. CFM - Valves 2 cfm, Max. Temp. 250 Degrees F, Operational Pressure Range 0 to 20 psi, Brass Body Material, Stainless Steel Poppet, Brass Seal Material, Stainless Steel Spring Material, Hex (In.) 9/16 in, Length (In.) 1 3/4 in, Pressure Relief, Rated CFM @ Set Pressure 2 cfm, Vacuum / Pressure Relief Valve
