  11. Thermostat, 24V AC, 3 1/4 in Overall H

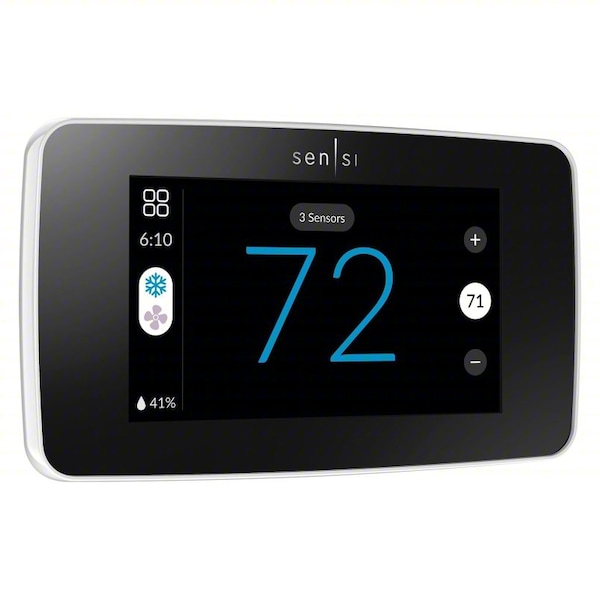

Copeland Thermostat, 24V AC, 3 1/4 in Overall H 1F96U-42WF - main

Thermostat, 24V AC, 3 1/4 in Overall H

  • Mfr # 1F96U-42WF

  • Zoro # G510988611

product price: $216.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC
Dual Transformer Compatible
Yes
Occupancy Sensor
No Occupancy Sensing
Terminal Designations
ACC-, ACC+, C, G, O/B, RC, RH, W/E, W2, Y, Y2
Overall Width
5 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F96U-42WF
Zoro #
G510988611
UPC #
786710566738
Country of Origin
Mexico

Dimensions

Overall Width
5 5/8 in
Overall Depth
3/4 in
Overall Height
3 1/4 in

Details

Item
Thermostat
Voltage
24V AC
Dual Transformer Compatible
Yes
Occupancy Sensor
No Occupancy Sensing
Terminal Designations
ACC-, ACC+, C, G, O/B, RC, RH, W/E, W2, Y, Y2
Temporary Temperature Hold
Yes
Number of Cooling Stages - Heat Pump System
2
Control Type
Touch Screen
Temporary Program Override
Yes
Programming Capability
7-Day
Google Home Compatible
Yes
Changeover Type
Automatic
Temperature Control Range
45 Degrees F to 99 Degrees F
Differential Heat
0.5 Degrees F, 0.8 Degrees F, 1.9 Degrees F
Temperature Scale
Fahrenheit/Celsius
Thermostat Type
Low Voltage
System Settings
Auto-Heat-Aux-Cool-Off
Millivolt Compatible
No
Dehumidification Control
Yes
Temperature settings per day
8
Minimum Temperature Control
45 Degrees F
Amazon Alexa Compatible
Yes
Stages
1H/1C Single, 2H/2C Multi-Stage, 4H/2C Heat Pump
Electrical Connection Type
Hardwired
Low Battery Indicator
No
Filter Change Reminder
Yes
Compatible System Type
Multi-Stage Heat Pump, Single-Stage Heat Pump
Maximum Temperature Control
99 Degrees F
Fan Settings
Auto-On-Circulate
Temperature Limiting
Yes
Application
Heat and Cool
Temperature Adjustment
Adjustable Limits
Number of Heating Stages - Heat Pump System
4
Key Pad Lockout
Yes
Frequency
50 Hz, 60 Hz
Operating Humidity Range
0% to 90% RH
Differential Type
Adjustable
Number of Zones
3
Includes
Mounting Hardware, Wall Anchors, Wiring Label
Display Type
Digital
Compatible Software/Device
Alexa, Google Assistant, Samsung SmartThings
Network Protocol Compatibility
OSI, Geo, NP
Backlit Screen
Yes
Differential Cool
0.9 Degrees F, 1.2 Degrees F, 1.7 Degrees F
Smart Connectivity
Wi-Fi Control
Humidification Control
Yes
Housing Color
White
Contact Rating
24V AC
Application/Stages
1H/1C; 2H/2C; 4H/2C
Battery Backup
No
Number of Heating Stages - Conventional System
2
Phase
1
Wi-Fi Frequency
2.4 GHz, 5 GHz
Housing Material
Plastic
Temperature Readout
Yes
Wireless
Yes
Housing Type
Without Housing
External Power Source
External Adapter, HVAC System
Power Loss Settings Backup
Yes
Mounting Direction
Horizontal
Temperature Differential
1.9 Degrees F
Includes Batteries
No
Wi-Fi Specifications
802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n
Pilot Duty Rating
1.5 to 2.5 A @ 24V AC
Smart Capabilities
Energy Saving, Flexible Scheduling, Geofencing, Learning, Remote Access, Smart Maintenance, Usage Report, Wi-Fi
Backlit Type
30 to 20 Seconds, Touch Activated
Shape
Rectangle
Includes Positive Off
Yes
Number of Cooling Stages - Conventional System
2

Description

Thermostat, Heat and Cool, Automatic, Multi-Stage Heat Pump, Single-Stage Heat Pump, Touch Screen, Dehumidification Control Yes, Differential Type Adjustable, Digital, Dual Transformer Compatible Yes, Fan Settings Auto-On-Circulate, Humidification Control Yes, Includes Positive Off Yes, Key Pad Lockout Yes, Minimum Temperature Control 45 Degrees F, Maximum Temperature Control 99 Degrees F, Mounting Direction Horizontal, Number of Cooling Stages - Conventional System 2
