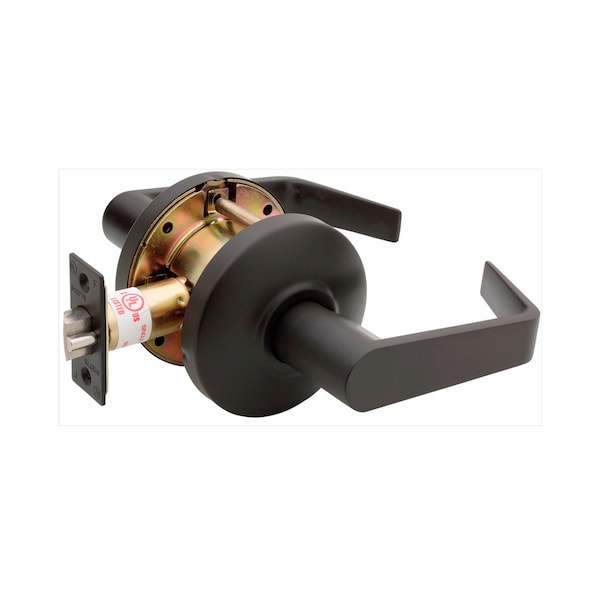

Avery Grade 2 Cylindrical Lever Passage Nfl Ul, Bronze (Discontinued)
- Mfr # AL6220 10B
- Zoro # G9462620
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
AL6220 10B
Zoro #
G9462620
UPC #
878898004802
Country of Origin
Taiwan, Province of China
Dimensions
Required Door Thickness
Min 1-3/8" - Max 1-3/4"
Details
Backset
Fixed 2-3/4" backset
Electrical/Mechanical
Mechanical
For Use With
Standard Residential and Commercial doors
Includes
Hardware and instructions
Finish
Oil Rubbed Bronze
Color
Oil Rubbed Bronze
Application
Retrofit or New Construction
Material
Steel, Brass and Zinc
Features
All Metal Construction
Standards
ANSI Grade-2
Fire Rated
U.L 3HR Fire Rated
Item
Passage Lever
Strike
ASA LS22 4-7/8'' high x 1-1/4" wide strike with lip
ADA Compliant
Yes
Latch Face
Standard Square-Corner Mortise Faceplate
Warranty
Limited Lifetime
Function
Passage
Description
The AL6220 10B is the product of a better design, higher quality materials, and better manufacturing. Each lever features a solid steel chassis, adjustable steel latches with a square drive, and a solid steel latch face. The advanced finishing process lends to a beautiful rich finish that lasts. ANSI/BHMA, ADA and U.L. compliant this product is ideal for most commercial applications.
