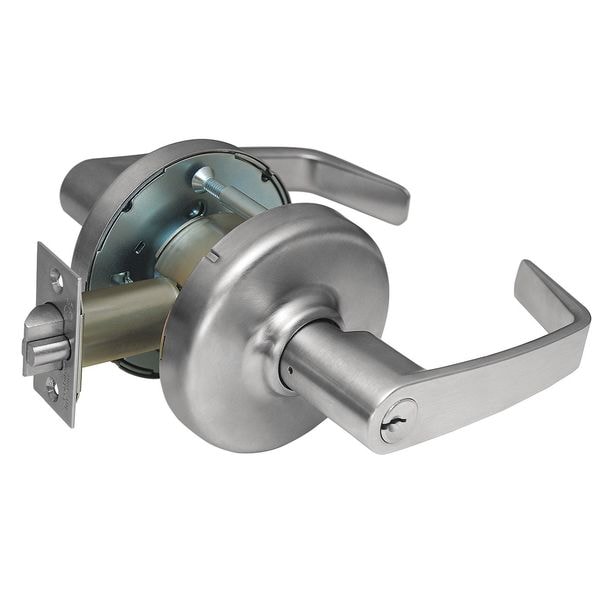

Corbin Russwin Lever Lockset, Mechanical, Classroom CLX3355 NZD 626 - main

Lever Lockset, Mechanical, Classroom

  • Mfr # CLX3355 NZD 626

  • Zoro # G4564874

product price: $543.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Classroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CLX3355 NZD 626
Zoro #
G4564874
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4 to 2"
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
2 1/4 in
Strike Plate Thickness
1 1/4 in
Strike Plate Lip Length
1 1/4 in
Strike Plate Height
4 7/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Classroom
Lockset Grade
1
Style
3300 Right Angle
Lockset Finish
Satin Chrome
Keyway Type
L4
Key Type
Keyed Different
Strike Type
Curved Lip
Lockset Fire Rating
3 hr
Mortise/Cylindrical
Cylindrical
Backset
2 3/4 in
ADA Compliant
Yes
Standards
ANSI/BHMA Certified, cUL Listed, EPD, UL Listed
Location Type
Healthcare, Institutional
Lockset Performance Strength
Extra Heavy Duty
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Series
3300
Number of Keys
2
Number of Pins
6
Key Material
Nickel Silver
Handle Material
Brass, Bronze, Stainless Steel, Steel
Ligature Resistant
No
Item
Door Lockset
Strike Dim.
4-7/8 in x 1-1/4 in
Keying
Keyed Different
Features
Independent Return Springs
Finish
Satin Chrome
Fire Rated
3 hr.
Grade
1
Cylinder Core Type
Conventional Core Cylinder
Type
Extra Heavy Duty Cylindrical
Visual Indicator Message
No Message
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Material
Steel, Stainless Steel, Brass and Bronze
Function
Classroom
Pins
6
Case Material
Steel with Zinc Dicromate plating
Cylinder
Yes
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Function ANSI Code
F84
Locking/Unlocking Access - Outside
Keyway
Locking/Unlocking Access - Inside
Not Lockable
Application
Commercial, Industrial
ANSI Grade
1
Latch Bolt/Dead Bolt
Latch Bolt
Fire Rating
3 hr
Lockset Style
3300 Right Angle
Trim Plate Shape
Round
Performance Grade
1
Lockset Type
Mechanical
Ligature-Resistant
Not Ligature-Resistant
Knob/Handle Material
Solid Cast Zinc
UL Fire Rating
UL10C
Includes Core
Core Included
Hand Orientation
Non-Handed

Description

Lever Lockset, Extra Heavy Duty Cylindrical, Institutional, Health Care, 3300 Series, Right Angle Style, Satin Chrome Finish, Function Classroom, Keyway Type L4, Grade 1, Material Steel, Stainless Steel, Brass and Bronze, For Door Thickness 1-3/4 to 2 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., Key Type Nickel Silver, Number of Keys 2, Pins 6, ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Cylinder Yes, Keying Different
