  13. Lever Lockset, Mechanical, Passage, Grade 1

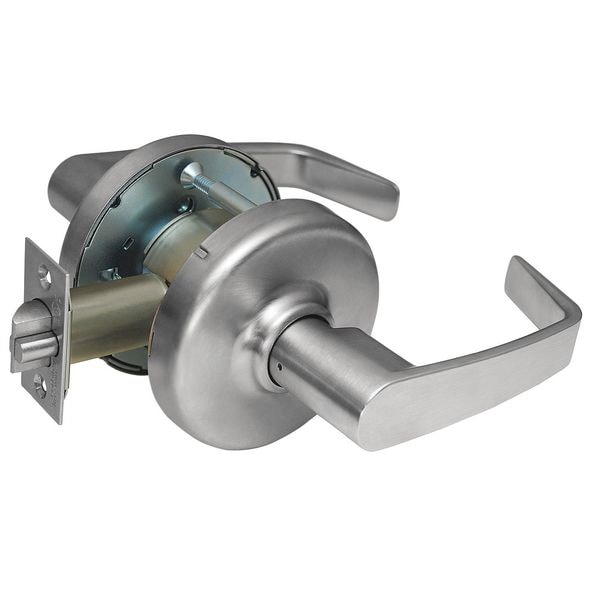

Corbin Russwin Lever Lockset, Mechanical, Passage, Grade 1 CLX3310 NZD 626 - main

Lever Lockset, Mechanical, Passage, Grade 1

  • Mfr # CLX3310 NZD 626

  • Zoro # G4621163

product price: $378.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Key Type
Not Keyed
Keyway Type
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CLX3310 NZD 626
Zoro #
G4621163
UPC #
095801758076
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4 to 2"
Door Thickness - Maximum
2 1/4 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Height
4 7/8 in
Strike Plate Thickness
1 1/4 in
Strike Plate Lip Length
1 1/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Key Type
Not Keyed
Keyway Type
None
Location Type
Healthcare, Institutional
Lockset Function
Closet, Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
3300
Style
3300 Right Angle
Finish
Satin Chrome
Item
Door Lockset
Handle Material
Brass, Bronze, Stainless Steel, Steel
Lockset Finish
Satin Chrome
Lockset Performance Strength
Extra Heavy Duty
Standards
ANSI/BHMA Certified, cUL Listed, EPD, UL Listed
Mortise / Cylindrical
Cylindrical
ADA Compliant
Yes
Strike Dim.
4-7/8 in x 1-1/4 in
Ligature Resistant
No
Lockset Fire Rating
3 hr
Strike Type
Curved Lip
Keying
Keyed Different
Features
Independent Return Springs
Number of Keys
0
Fire Rated
3 hr.
Grade
1
Application
Commercial, Industrial
Type
Extra Heavy Duty Cylindrical
Function
Passage
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Material
Steel, Stainless Steel, Brass and Bronze
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Visual Indicator Message
No Message
Case Material
Steel with Zinc Dicromate plating
Fire Rating
3 hr
Ligature-Resistant
Not Ligature-Resistant
Lockset Function ANSI Code
F75
Trim Plate Shape
Round
Knob/Handle Material
Solid Cast Zinc
Latch Bolt/Dead Bolt
Latch Bolt
Locking/Unlocking Access - Outside
Not Lockable
Lockset Style
3300 Right Angle
Locking/Unlocking Access - Inside
Not Lockable
ANSI Grade
1
Includes Core
Core Not Included
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Type
Mechanical
Hand Orientation
Non-Handed
Performance Grade
1
UL Fire Rating
UL10C

Description

Lever Lockset, Extra Heavy Duty Cylindrical, Institutional, Health Care, 3300 Series, Right Angle Style, Satin Chrome Finish, Function Passage, Grade 1, Material Steel, Stainless Steel, Brass and Bronze, For Door Thickness 1-3/4 to 2 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Standards ANSI A156.2 Series 4000 grade 1, A117.1 Accessbility Code, Federal FF-H-106C, California Reference Code
