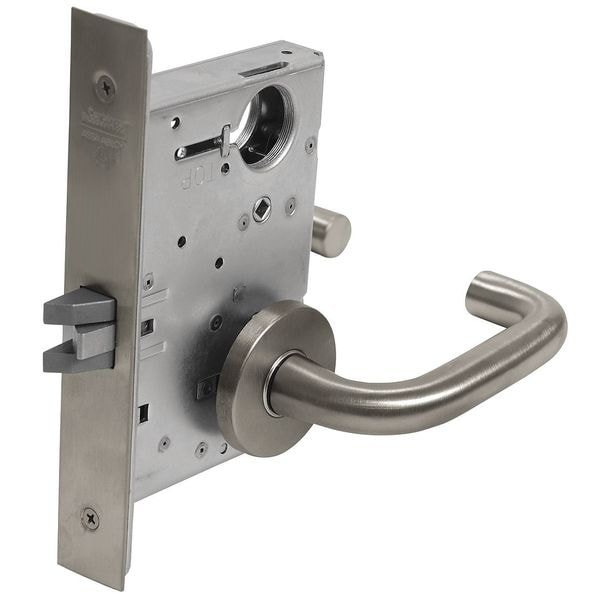

Corbin Russwin Lever Lockset, Mechanical, Passage, Grade 1 ML2010 LWA 630 - main

Lever Lockset, Mechanical, Passage, Grade 1

  • Mfr # ML2010 LWA 630

  • Zoro # G4573484

product price: $575.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
None
Location Type
Healthcare, Institutional, School
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ML2010 LWA 630
Zoro #
G4573484
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Strike Plate Thickness
1 1/4 in
Strike Plate Lip Length
1 1/8 in
Door Thickness - Maximum
4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
None
Location Type
Healthcare, Institutional, School
Lockset Function
Closet, Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Number of Pins
6
Series
ML2000
Style
ML2000 Right Angle Round
Finish
Satin Stainless Steel
Ligature Resistant
No
Lockset Fire Rating
3 hr
ADA Compliant
Yes
Standards
ANSI/BHMA A156.13, ASTM E330, cUL Listed, EPD, UL Listed
Lockset Finish
Satin Stainless Steel
Mortise / Cylindrical
Mortise
Strike Type
Straight Lip
Strike Dim.
1-1/4 in x 4-7/8 in
Item
Door Lockset
Fire Rated
3 hr.
Features
Integrates with Access Control Platforms
Grade
1
Number of Keys
2
Key Material
Nickel Silver
Application
Commercial
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Function
Passage
Material
Heavy Guage Steel, Stainless Steel, Brass, Bronze
Type
Mortise
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Visual Indicator Message
No Message
Handle Type
Lever
Case Material
Heavy Gauge Chrome Plated Steel
Lockset Type
Mechanical
Locking/Unlocking Access - Inside
Not Lockable
Ligature-Resistant
Not Ligature-Resistant
Includes Core
Core Not Included
Lockset Function ANSI Code
F01
Fire Rating
3 hr
Lockset Style
LWA Lever
Trim Plate Shape
Round
Latch Bolt/Dead Bolt
Latch Bolt
ANSI Grade
1
UL Fire Rating
UL10C
Performance Grade
1
Hand Orientation
Non-Handed
Knob/Handle Material
Steel
Locking/Unlocking Access - Outside
Not Lockable
ANSI/BHMA Finish
Satin Stainless Steel

Description

Lever Lockset, Mortise, Institutional, Healthcare, Schools, ML2000 Series, Right Angle, Round, Rose Style, Satin Stainless Steel Finish, Function Passage, Grade 1, Material Heavy Guage Steel, Stainless Steel, Brass, Bronze, For Door Thickness 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 8 x 1-1/4 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, No Deadbolt, Standards Meets A156.13 Series 1000, Operational and Security Grade 1, Meets A117.1 Accessiblity Code, California State Reference Code
