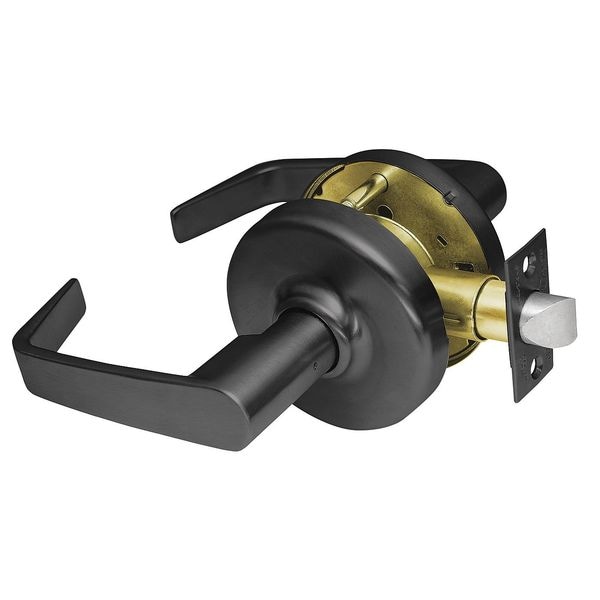

Corbin Russwin Lever Lockset, Mechanical, Passage, Grade 2 CL3810 NZD 10B - main

Lever Lockset, Mechanical, Passage, Grade 2

  • Mfr # CL3810 NZD 10B

  • Zoro # G4601213

product price: $222.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Key Type
Not Keyed
Keyway Type
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CL3810 NZD 10B
Zoro #
G4601213
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Lip Length
1 1/4 in
Door Thickness - Maximum
2 1/4 in
Strike Plate Thickness
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Key Type
Not Keyed
Keyway Type
None
Location Type
Interior, Multi-Family, Restaurant, Retail
Lockset Function
Closet, Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
3800
Style
3800 Right Angle
Finish
Oxidized Oil Rubbed Bronze
Standards
ANSI/BHMA Certified, cUL Listed, UL Listed
Lockset Finish
Oil Rubbed Bronze
Handle Material
Brass, Bronze, Steel
Lockset Fire Rating
3 hr
ADA Compliant
Yes
Ligature Resistant
No
Strike Dim.
4-7/8 in x 1-1/4 in
Item
Door Lockset
Lockset Performance Strength
Heavy Duty
Strike Type
Curved Lip
Mortise / Cylindrical
Cylindrical
Keying
Not Keyed
Number of Keys
0
Fire Rated
3 hr.
Grade
2
Type
Std. Duty Cylindrical
Material
Steel, Brass, Bronze
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Function
Passage
Visual Indicator Message
No Message
Case Material
Steel with Zinc Dicromate plating
Includes Core
Core Not Included
Ligature-Resistant
Not Ligature-Resistant
Lockset Function ANSI Code
F75
Lockset Type
Mechanical
UL Fire Rating
UL10C
Fire Rating
3 hr
Trim Plate Shape
Round
Latch Bolt/Dead Bolt
Latch Bolt
ANSI Grade
2
Performance Grade
2
Hand Orientation
Non-Handed
Locking/Unlocking Access - Inside
Not Lockable
Lockset Style
3800 Right Angle
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Knob/Handle Material
Brass, Bronze, Steel
Locking/Unlocking Access - Outside
Not Lockable

Description

Lever, Heavy Duty, Lockset Function Passage, Style Lever, Right Angle, Handle Material Brass, Bronze, Steel, Oxidized Oil Rubbed Bronze Finish, Strike Type Curved Lip Strike, Strike Dim. 4-7/8 In. x 1-1/4 In., Fire Rated 3 hr., Grade 2, Series 3800, Location Type Interior Doors, Retail, Multi-Family, Restaurants, Backset 2-3/4 In., Required Door Thickness 1-3/8 In. to 1-3/4 In., Keying Not Keyed, For Use With ANSI 115.2 (161 Modifed) Door Prep
