  13. Lever Lockset, Mechanical, Passage, Grade 2

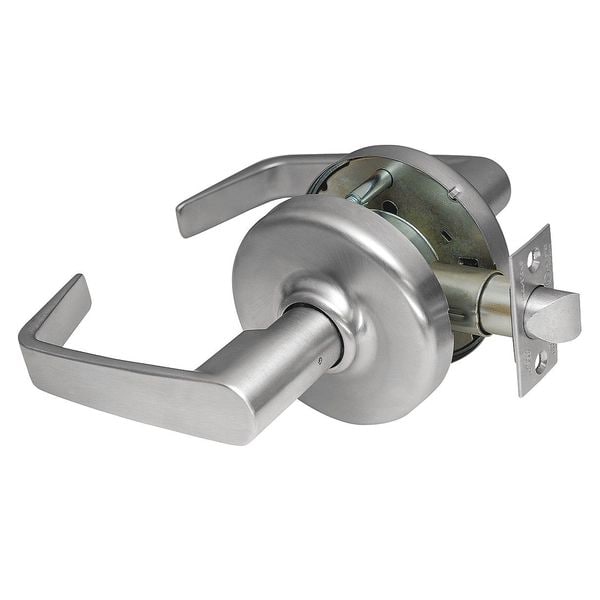

Corbin Russwin Lever Lockset, Mechanical, Passage, Grade 2 CL3810 NZD 626 - main

Lever Lockset, Mechanical, Passage, Grade 2

  • Mfr # CL3810 NZD 626

  • Zoro # G4630787

product price: $195.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Includes
Hardware
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CL3810 NZD 626
Zoro #
G4630787
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Thickness
1 1/4 in
Strike Plate Lip Length
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
2 1/4 in
Door Thickness - Minimum
1 3/8 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Includes
Hardware
Key Type
Not Keyed
Keyway Type
None
Location Type
Interior, Multi-Family, Restaurant, Retail
Lockset Function
Closet, Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
3800
Style
3800 Right Angle
Finish
Satin Chrome
ADA Compliant
Yes
Mortise / Cylindrical
Cylindrical
Strike Dim.
4-7/8 in x 1-1/4 in
Lockset Fire Rating
3 hr
Standards
ANSI/BHMA Certified, cUL Listed, UL Listed
Strike Type
Curved Lip
Handle Material
Brass, Bronze, Steel
Ligature Resistant
No
Lockset Finish
Satin Chrome
Item
Door Lockset
Lockset Performance Strength
Heavy Duty
Features
Ez-Install Components Significantly Reduce Installation Time
Grade
2
Fire Rated
3 hr.
Number of Keys
0
Keying
Keyed Different
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Type
Std. Duty Cylindrical
Material
Steel, Brass, Bronze
Function
Passage
Visual Indicator Message
No Message
Case Material
Steel with Zinc Dicromate plating
Includes Core
Core Not Included
Lockset Type
Mechanical
Latch Bolt/Dead Bolt
Latch Bolt
Locking/Unlocking Access - Inside
Not Lockable
Fire Rating
3 hr
ANSI/BHMA Finish
Satin Chromium-Plated
Performance Grade
2
UL Fire Rating
UL10C
ANSI Grade
2
Locking/Unlocking Access - Outside
Not Lockable
Lockset Function ANSI Code
F75
Ligature-Resistant
Not Ligature-Resistant
Hand Orientation
Non-Handed
Trim Plate Shape
Round
Knob/Handle Material
Brass, Bronze, Steel
Lockset Style
3800 Right Angle

Description

Lever Lockset, Std. Duty Cylindrical, Interior Doors, Retail, Multi-family, Restaurants, 3800 Series, Lever,Right Angle Style, Satin Chrome Finish, Function Passage, Grade 2, Material Steel, Brass, Bronze, For Door Thickness 1-3/8 to 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Standards ANSI A156.2 Series 4000 grade 1, A117.1 Accessbility Code, Federal FF-H-106C, California Reference Code
