  13. Lever Lockset, Mechanical, Privacy, Grade 2

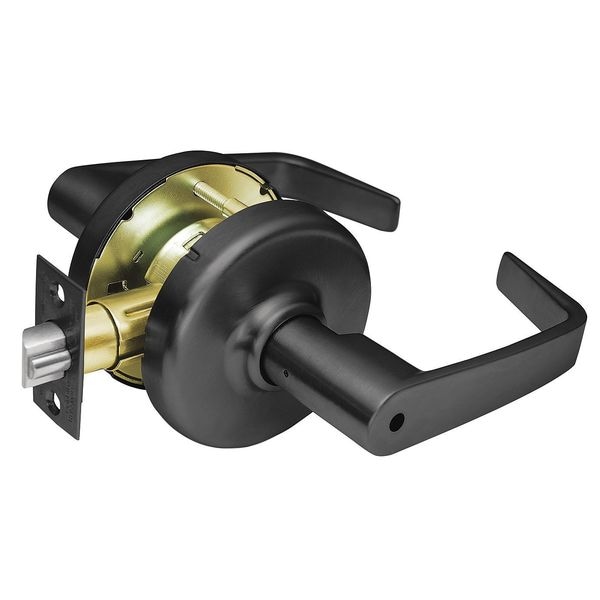

Corbin Russwin Lever Lockset, Mechanical, Privacy, Grade 2 CL3820 NZD 10B - main

Lever Lockset, Mechanical, Privacy, Grade 2

  • Mfr # CL3820 NZD 10B

  • Zoro # G4548564

product price: $227.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Interior, Multi-Family, Restaurant, Retail
Electrical/Mechanical
Mechanical
Grade
2
Finish
Oxidized Oil Rubbed Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CL3820 NZD 10B
Zoro #
G4548564
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Thickness
1 1/4 in
Door Thickness - Maximum
2 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Lip Length
1 1/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Interior, Multi-Family, Restaurant, Retail
Electrical/Mechanical
Mechanical
Grade
2
Finish
Oxidized Oil Rubbed Bronze
Series
3800
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in
ADA Compliant
Yes
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Mortise / Cylindrical
Cylindrical
Ligature Resistant
No
Handle Material
Brass, Bronze, Steel
Style
3800 Right Angle
Standards
ANSI/BHMA Certified, cUL Listed, UL Listed
Key Type
Not Keyed
Lockset Grade
2
Strike Type
Curved Lip
Lockset Performance Strength
Heavy Duty
Lockset Handle Type
Lever
Lockset Finish
Oil Rubbed Bronze
Mortise/Cylindrical
Cylindrical
Lockset Fire Rating
3 hr
Keying
Keyed Different
Number of Keys
0
Number of Pins
6
Fire Rated
3 hr.
Keyway Type
None
Visual Indicator Message
No Message
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Material
Steel, Brass, Bronze
Case Material
Steel with Zinc Dicromate plating
Function
Privacy
Type
Std. Duty Cylindrical
Ligature-Resistant
Not Ligature-Resistant
Knob/Handle Material
Brass, Bronze, Steel
Lockset Type
Mechanical
UL Fire Rating
UL10C
Fire Rating
3 hr
Locking/Unlocking Access - Outside
Not Lockable
Hand Orientation
Non-Handed
Lockset Function ANSI Code
F76A
ANSI Grade
2
Trim Plate Shape
Round
Performance Grade
2
Locking/Unlocking Access - Inside
Push Button
Includes Core
Core Not Included
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Style
3800 Right Angle

Description

Lever Lockset, Std. Duty Cylindrical, Interior Doors, Retail, Multi-family, Restaurants, 3800 Series, Lever,Right Angle Style, Oxidized Bronze, Oil Rubbed Finish, Function Privacy, Grade 2, Material Steel, Brass, Bronze, For Door Thickness 1-3/8 to 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Standards ANSI A156.2 Series 4000 grade 1, A117.1 Accessbility Code, Federal FF-H-106C, California Reference Code
