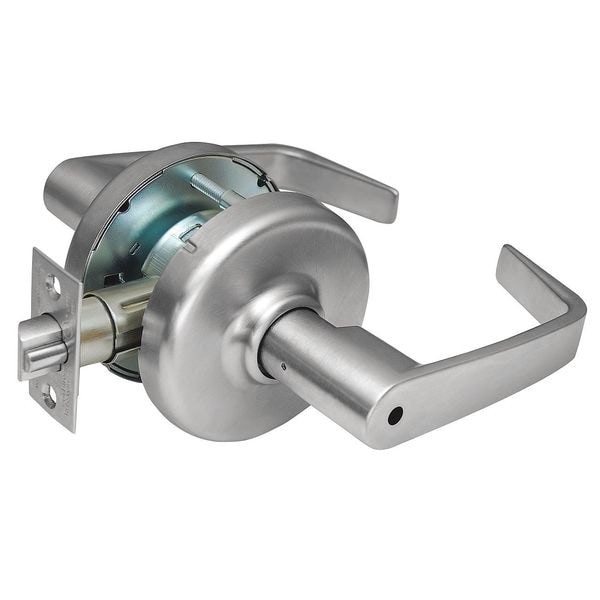

Corbin Russwin Lever Lockset, Mechanical, Privacy, Grade 2 CL3820 NZD 626 - main

Lever Lockset, Mechanical, Privacy, Grade 2

  • Mfr # CL3820 NZD 626

  • Zoro # G4606847

product price: $201.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Interior, Multi-Family, Restaurant, Retail
Electrical/Mechanical
Mechanical
Grade
2
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CL3820 NZD 626
Zoro #
G4606847
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Thickness
1 1/4 in
Strike Plate Lip Length
1 1/4 in
Door Thickness - Maximum
2 1/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Interior, Multi-Family, Restaurant, Retail
Electrical/Mechanical
Mechanical
Grade
2
Finish
Satin Chrome
Series
3800
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in
Mortise/Cylindrical
Cylindrical
Lockset Fire Rating
3 hr
Lockset Handle Type
Lever
Style
3800 Right Angle
Lockset Grade
2
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Strike Type
Curved Lip
Ligature Resistant
No
Key Type
Not Keyed
Lockset Finish
Satin Chrome
Standards
ANSI/BHMA Certified, cUL Listed, UL Listed
Mortise / Cylindrical
Cylindrical
ADA Compliant
Yes
Handle Material
Brass, Bronze, Steel
Lockset Performance Strength
Heavy Duty
Keyway Type
None
Fire Rated
3 hr.
Number of Keys
0
Keying
Keyed Different
Number of Pins
6
Visual Indicator Message
No Message
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Material
Steel, Brass, Bronze
Function
Privacy
Type
Std. Duty Cylindrical
Case Material
Steel with Zinc Dicromate plating
Lockset Function ANSI Code
F76A
Fire Rating
3 hr
Includes Core
Core Not Included
Locking/Unlocking Access - Inside
Push Button
Trim Plate Shape
Round
UL Fire Rating
UL10C
Performance Grade
2
ANSI/BHMA Finish
Satin Chromium-Plated
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Type
Mechanical
Hand Orientation
Non-Handed
Lockset Style
3800 Right Angle
Ligature-Resistant
Not Ligature-Resistant
Locking/Unlocking Access - Outside
Not Lockable
ANSI Grade
2
Knob/Handle Material
Brass, Bronze, Steel

Description

Lever Lockset, Std. Duty Cylindrical, Interior Doors, Retail, Multi-family, Restaurants, 3800 Series, Lever,Right Angle Style, Satin Chrome Finish, Function Privacy, Grade 2, Material Steel, Brass, Bronze, For Door Thickness 1-3/8 to 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Standards ANSI A156.2 Series 4000 grade 1, A117.1 Accessbility Code, Federal FF-H-106C, California Reference Code
