  11. HandCrank HoseReel, Holds 3/8x100 Ft Hose

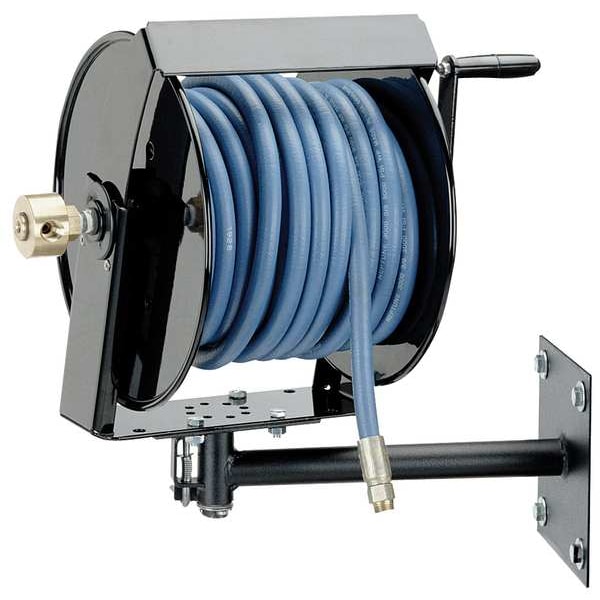

Coxreels HandCrank HoseReel, Holds 3/8x100 Ft Hose SM12-3-100 - main

HandCrank HoseReel, Holds 3/8x100 Ft Hose

  • Mfr # SM12-3-100

  • Zoro # G4859994

product price: $239.99
/ea
Free Shipping & Returns

Key Features

Hose Included
No
Hose Length
100 ft
Hose Inside Dia.
3/8 in
Reel Inlet
3/8 in (F)NPT
Hose Outlet
3/8 in (M)NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SM12-3-100
Zoro #
G4859994
UPC #
674255821859
Country of Origin
United States

Dimensions

Hose Length
100 ft
Hose Inside Dia.
3/8 in
Overall Length
12 in
Overall Width
19 in
Overall Height
13 1/2 in
Hose Outside Dia.
5/8 in
Swivel Inlet Size
3/8 in
Mounting Hole Center to Center Height
3 in
Overall Dimensions
12 in L x 19 in W x 13 1/2 in H
Mount Hole Diameter
1/2 in
Swivel Inlet Thread Size
3/8 in
Swivel Outlet Thread Size
3/8 in
Mount Base Height
4 in
Mount Base Width
10 1/4 in
Handle Length
3 1/2 in
Reel Diameter
5 1/2 in
Swivel Outlet Size
3/8 in
Reel Width
8 in

Details

Hose Included
No
Reel Inlet
3/8 in (F)NPT
Hose Outlet
3/8 in (M)NPT
Finish
Powder Coated
Duty Rating
Medium Duty
Bearings
EPDM Bearings
Application
Air, Water, Oil, Washdown, Pressure Washing, Agricultural Spraying, Chemical Fluid Transfer
Item
Hand Crank Hose Reel
Hose Ends
3/8 in (M)NPT
Mounting
Bench, Floor, Truck, Wall
Seal Type
Viton(R)
Swivel Material
Brass
Max. Pressure Rating
4000 psi
Drive Type
Hand Crank
Max. Temp. Rating
225 Degrees F
Housing Material
Steel
Color
Black
HP
None
Bearing Construction
EPDM
Includes Hose
No
Swivel Inlet Gender
Female
Maximum Operating Pressure
4,000 psi
Maximum Operating Temperature
225 Degrees F
Seal Material
FKM
Standards
CE
Hose Reel Primary Application
Air, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water
Includes Gooseneck
No
Number of Mount Holes
8
Minimum Operating Temperature
-40 Degrees F
Hose Capacity
100 ft (3/8 in I.D.)
Swivel Inlet Type
NPT
Features
Adjustable Tension Brake, CNC Spun Discs, Control Bar, Designed for Swivel Mount (Sold Separately) Heavy Duty Steel Construction
Reel Color
Black
Enclosed
No
Includes Leader Hose
No
Base Motion Type
Stationary
Reel Finish
Powder Coated
Swivel Outlet Gender
Female
Weight
15 lb
Reel Material
Steel
Swivel Outlet Type
NPT
Hose Reel Type
Wall Mount Hose Reel
Fasteners Included
No
For Dual Hose
No

Description

Hand Crank Hose Reel, Air, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water, Hose Capacity 100 ft (3/8 in I.D.), 4,000 psi, Overall Height 13 1/2 in, Overall Length 12 in, Overall Width 19 in, Reel Material Steel, Reel Finish Powder Coated, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Floor, Truck, Wall, Reel Color Black, Includes Gooseneck No, Hose Reel Type Wall Mount Hose Reel, Swivel Material Brass
