  11. Hose Reel, Hand Crank, 1/2 in (F)NPT, 75 ft

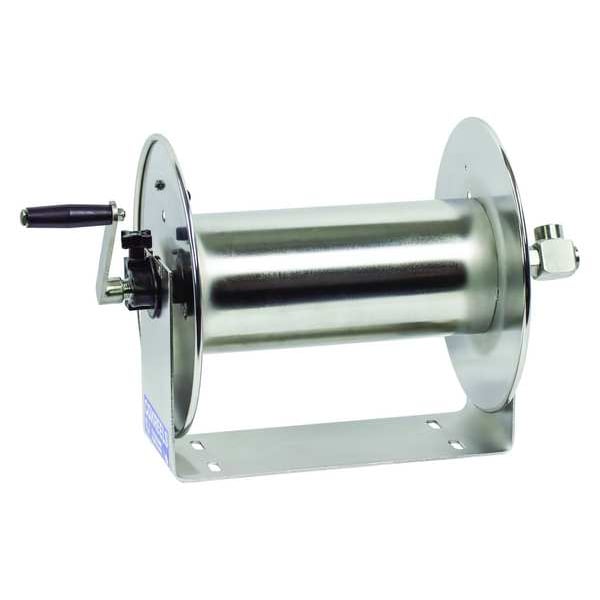

Coxreels Hose Reel, Hand Crank, 1/2 in (F)NPT, 75 ft 112-4-75-SS - main

Hose Reel, Hand Crank, 1/2 in (F)NPT, 75 ft

  • Mfr # 112-4-75-SS

  • Zoro # G0673998

product price: $881.99
/ea
Free Shipping & Returns

Key Features

Hose Included
No
Hose Length
75 ft
Hose Inside Dia.
1/2 in
Reel Inlet
1/2 in (F)NPT
Hose Outlet
1/2 in (F)NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112-4-75-SS
Zoro #
G0673998
UPC #
-
Country of Origin
United States

Dimensions

Hose Length
75 ft
Hose Inside Dia.
1/2 in
Overall Height
13 in
Overall Length
12 in
Overall Width
14 in
Hose Outside Dia.
7/8 in
Mounting Hole Center to Center Height
3 in
Mounting Hole Center to Center Width
10 in
Mount Base Height
6 in
Mount Base Width
14 in
Handle Length
3 1/2 in
Swivel Inlet Thread Size
1/2 in
Swivel Inlet Size
1/2 in
Swivel Outlet Thread Size
1/2 in
Reel Diameter
5 1/2 in
Mount Hole Diameter
7/16 in
Overall Dimensions
12 in L x 14 in W x 13 in H
Swivel Outlet Size
1/2 in
Reel Width
12 1/2 in

Details

Hose Included
No
Reel Inlet
1/2 in (F)NPT
Hose Outlet
1/2 in (F)NPT
Finish
Electro-polished
Duty Rating
Heavy Duty
Color
Gray
Item
Hand Crank Hose Reel
Includes
Tension Brake
Max. Temp. Rating
250 Degrees F
Max. Pressure Rating
4000 psi
Bearings
Permanently Lubricated
Hose Ends
1/2 in (M)NPT
Swivel Material
Stainless Steel
Drive Type
Hand Crank
Housing Material
Steel
Application
For Lawn Care, Grounds Maintenance, Pest Control, Steam Cleaning, Tree Spraying
HP
None
Mounting
Bench, Floor, Truck, Wall
Seal Type
Nitrile
Reel Finish
Passivated
For Dual Hose
No
Features
Adjustable Tension Brake, CNC Spun Discs, Professional Grade Heavy Duty Steel Construction, U Shaped Frame Design
Hose Reel Primary Application
Air, Chemical Fluid Transfer, Cleaning Fluids, Corrosive Environments, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water
Base Motion Type
Stationary
Bearing Construction
EPDM
Number of Mount Holes
4
Reel Color
Silver
Swivel Inlet Type
NPT
Swivel Outlet Type
NPT
Weight
21 lb
Includes Gooseneck
No
Fasteners Included
No
Swivel Inlet Gender
Female
Enclosed
No
Maximum Operating Temperature
225 Degrees F
Includes Leader Hose
No
Reel Material
Stainless Steel
Hose Capacity
75 ft (1/2 in I.D.)
Swivel Outlet Gender
Female
Hose Reel Type
Wall Mount Hose Reel
Includes Hose
No
Standards
CE
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Pressure
4,000 psi
Seal Material
Nitrile

Description

Hand Crank Hose Reel, Air, Chemical Fluid Transfer, Cleaning Fluids, Corrosive Environments, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water, Hose Capacity 75 ft (1/2 in I.D.), 4,000 psi, Overall Height 13 in, Overall Length 12 in, Overall Width 14 in, Reel Material Stainless Steel, Reel Finish Passivated, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Ceiling, Floor, Truck, Wall, Reel Color Silver, Includes Gooseneck No
