  11. Hose Reel, Motorized, 1 in. (F)NPT, 100 ft.

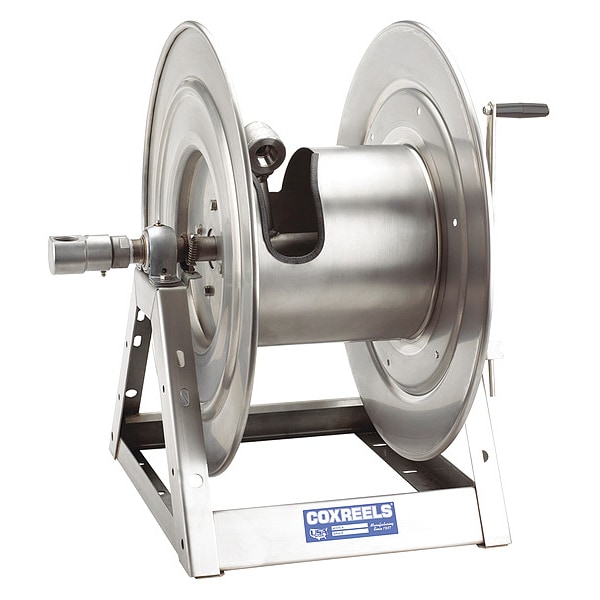

Coxreels Hose Reel, Motorized, 1 in. (F)NPT, 100 ft. 1175-6-100-E-SP - main

Hose Reel, Motorized, 1 in. (F)NPT, 100 ft.

  • Mfr # 1175-6-100-E-SP

  • Zoro # G1165766

product price: $2,751.99
/ea
Free Shipping & Returns

Key Features

Hose Length
100 ft
Overall Height
26 1/8 in
Hose Outlet
1 in (F)NPT
Motor Voltage
12 V DC
Overall Length
24 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1175-6-100-E-SP
Zoro #
G1165766
UPC #
-
Country of Origin
United States

Dimensions

Hose Length
100 ft
Overall Height
26 1/8 in
Overall Length
24 in
Hose Inside Dia.
1 in
Hose Outside Dia.
7/16 in
Overall Width
24 3/8 in
Overall Dimensions
24 in L x 24 3/8 in W x 26 1/8 in H
Mount Base Width
17 in
Swivel Outlet Thread Size
1 in - 11 1/2
Swivel Outlet Size
1 in
Swivel Inlet Size
1 in
Swivel Inlet Thread Size
1 in - 11 1/2
Mounting Hole Center to Center Height
13 3/4 in
Mount Base Height
20 1/8 in
Mounting Hole Center to Center Width
15 in
Reel Diameter
10 1/2 in
Reel Width
11 1/2 in

Details

Hose Outlet
1 in (F)NPT
Motor Voltage
12 V DC
Color
Gray
HP
0.33
Bearings
Permanently Lubricated
Swivel Material
Stainless Steel
Max. Pressure Rating
3000 psi
Reel Inlet
1 in (F)NPT
Finish
Unfinished
Hose Ends
1 in (M)NPT
Hose Included
No
Item
Electric Motor Driven Hose Reel
Housing Material
Steel
Seal Type
Nitrile
Mounting
Bench, Floor, Truck, Wall
Duty Rating
Heavy Duty
Max. Temp. Rating
250 Degrees F
Drive Type
Motor Driven
Application
For Lawn Care, Grounds Maintenance, Pest Control, Steam Cleaning, Tree Spraying
Swivel Inlet Gender
Female
Standards
CE
Reel Color
Blue
Includes Leader Hose
No
Reel Material
Stainless Steel
Includes Hose
No
Hose Reel Primary Application
Air, Chemical Fluid Transfer, Clean Fluids, Oil/Lubrication, Pest Control, Pressure Washer, Spray Operations, Washdown, Water
Seal Material
Nitrile
Swivel Outlet Gender
Female
Includes Gooseneck
Yes
Swivel Inlet Type
NPT
Base Motion Type
Stationary
Features
Gear Driven Drive System, Heavy Duty Solid Spun Discs With Rolled Edge, Low Profile Risers for No-Hump Winding
For Dual Hose
No
Latch Type
Locking
Hazardous Location
No
Hose Capacity
100 ft (1 in I.D.)
Enclosed
No
Weight
83 lb
Vacuum Rating
Not Rated
Bearing Construction
Permanently Lubricated
Hose Reel Type
Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel
Minimum Operating Pressure
0 psi
Swivel Outlet Type
NPT
Minimum Operating Temperature
-40 Degrees F
Horsepower
1/3 hp
Maximum Operating Temperature
250 Degrees F
Reel Finish
Passivated
Maximum Operating Pressure
3,000 psi
Motor Type
1/3 HP 12VDC Motor

Description

Electric Motor Driven Hose Reel, Air, Chemical Fluid Transfer, Clean Fluids, Oil/Lubrication, Pest Control, Pressure Washer, Spray Operations, Washdown, Water, Motor Type 1/3 HP 12VDC Motor, Motor Voltage 12 V DC, 3,000 psi, Minimum Operating Pressure 0 psi, Hose Capacity 100 ft (1 in I.D.), Drive Type Motor Driven, Includes Hose No, Mounting Location Bench, Floor, Truck, Wall, Overall Height 26 1/8 in, Overall Length 24 in, Overall Width 24 3/8 in, For Dual Hose No
