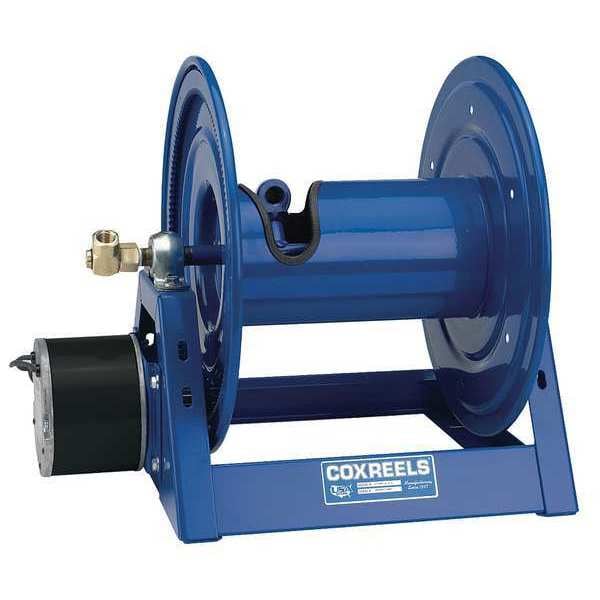

Coxreels Motorized Hose Reel, 1/2x200 1125-4-200-E - main

Motorized Hose Reel, 1/2x200

  • Mfr # 1125-4-200-E

  • Zoro # G7891843

product price: $746.99
/ea
Free Shipping & Returns

Key Features

Overall Height
19 3/4 in
Color
Blue
Overall Width
24 in
Mounting
Bench, Floor, Truck, Wall
Bearings
Permanently Lubricated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1125-4-200-E
Zoro #
G7891843
UPC #
674255822337
Country of Origin
United States

Dimensions

Overall Height
19 3/4 in
Overall Width
24 in
Overall Length
17 5/8 in
Hose Inside Dia.
1/2 in
Hose Outside Dia.
7/8 in
Hose Length
200 ft
Mount Base Height
16 in
Reel Diameter
6 1/4 in
Reel Width
12 in
Swivel Inlet Thread Size
1/2 in - 14
Swivel Inlet Size
1/2 in
Swivel Outlet Thread Size
1/2 in - 14
Swivel Outlet Size
1/2 in
Overall Dimensions
17 5/8 in L x 24 in W x 19 3/4 in H
Mount Base Width
17 3/8 in
Mounting Hole Center to Center Height
10 in
Mounting Hole Center to Center Width
15 3/8 in

Details

Color
Blue
Item
Electric Motor Driven Hose Reel
Mounting
Bench, Floor, Truck, Wall
Bearings
Permanently Lubricated
Finish
Powder Coated
Seal Type
Nitrile
Swivel Material
Brass
Duty Rating
Heavy Duty
Max. Pressure Rating
3000 psi
Reel Inlet
1/2 in (F)NPT
Housing Material
Steel
Hose Included
No
HP
0.33
Drive Type
Motor Driven
Application
Air, Water, Oil, Washdown, Pressure Washing, Agricultural Spraying, Chemical Fluid Transfer, Hydro-Seeding, Pest Control
Hose Outlet
1/2 in (M)NPT
Motor Voltage
12 V DC
Hose Ends
1/2 in (M)NPT
Seal Material
Nitrile
Includes Hose
No
For Dual Hose
No
Latch Type
Locking
Hose Capacity
200 ft (1/2 in I.D.)
Enclosed
No
Swivel Outlet Type
NPT
Weight
52 lb
Reel Color
Blue
Hose Reel Type
Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel
Hazardous Location
No
Base Motion Type
Stationary
Includes Gooseneck
Yes
Horsepower
1/3 hp
Features
Gear Driven Drive System, Heavy Duty Solid Spun Discs With Rolled Edge, Low Profile Risers for No-Hump Winding
Bearing Construction
Permanently Lubricated
Swivel Inlet Type
NPT
Includes Leader Hose
No
Maximum Operating Temperature
250 Degrees F
Minimum Operating Pressure
0 psi
Reel Finish
Powder Coated
Standards
CE
Vacuum Rating
Not Rated
Swivel Outlet Gender
Female
Motor Type
1/3 HP 12VDC Motor
Reel Material
Steel
Maximum Operating Pressure
3,000 psi
Minimum Operating Temperature
-40 Degrees F
Swivel Inlet Gender
Female
Hose Reel Primary Application
Air, Chemical Fluid Transfer, Oil/Lubrication, Pest Control, Pressure Washer, Spray Operations, Washdown, Water

Description

Electric Motor Driven Hose Reel, Air, Chemical Fluid Transfer, Oil/Lubrication, Pest Control, Pressure Washer, Spray Operations, Washdown, Water, Motor Type 1/3 HP 12VDC Motor, Motor Voltage 12 V DC, 3,000 psi, Minimum Operating Pressure 0 psi, Hose Capacity 200 ft (1/2 in I.D.), Drive Type Motor Driven, Includes Hose No, Mounting Location Bench, Floor, Truck, Wall, Overall Height 19 3/4 in, Overall Length 17 5/8 in, Overall Width 24 in, For Dual Hose No
