  11. Reel, Combination, Spring Driven, 3/8x50 Ft
Shop All Combination Hose Reels
Coxreels

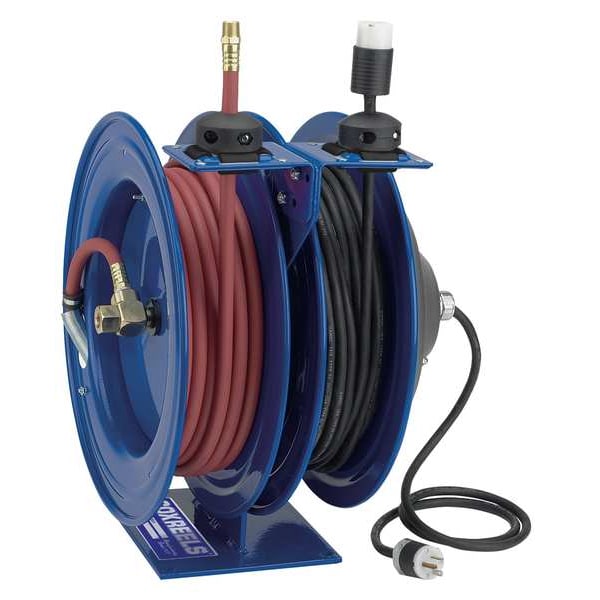

Reel, Combination, Spring Driven, 3/8x50 Ft

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Voltage: 115 V AC
  • Amps: 20 A
  • Wire Gauge (AWG): 12
  • Plug Type: NEMA 5-20P
  • Receptacle Type: Single Receptacle
  • AC Cord Length: 50 ft
  • Max. Pressure: 300 psi
  • Hose Inside Dia.: 3/8 in
See full product details
$876.87
Ships from United States
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Coxreels #C-L350-5012-A Specifications

  • Voltage: 115 V AC
  • Amps: 20 A
  • Wire Gauge (AWG): 12
  • Plug Type: NEMA 5-20P
  • Receptacle Type: Single Receptacle
  • AC Cord Length: 50 ft
  • Max. Pressure: 300 psi
  • Hose Inside Dia.: 3/8 in
  • Hose Length: 50 ft
  • Hose Ends: 3/8 in MNPT x 3/8 in MNPT
  • Max. Temp. (F): 150 Degrees F
  • Mounting: Bench and Vehicle, Ceiling, Floor, Wall
  • Overall Height: 18 5/8 in
  • Includes: Cord, Hose, Single Industrial Receptacle
  • Phase: Single Phase
  • Overall Length: 17 in
  • Latch: Locking
  • Item: Dual Reel Spring Return Hose Reel
  • Finish: Powder Coated
  • Drive Type: Spring Return
  • Swivel Material: Brass
  • Hose Material: PVC
  • Max. Pressure (PSI): 300
  • Overall Width: 16 in
  • Bearings: Permanently Lubricated
  • Reel Inlet: 3/8 in (F)NPT
  • Seal Type: Nitrile
  • Hose Included: Yes
  • Number of Conductors: 2
  • Weight: 86 lb
  • Features: 1 in Solid Steel Axle, Chip Resistant CPC Powder Coat Finish, CNC Spun Discs with Strength Bead and Rolled Edge, Each Reel Operates Independently, Heavy Gauge 1/4 in Steel Base & Support Post For Maximum Stability, Single Pedestal Reel, Solid One Piece, Stainless Steel Ratchet Pawl and Spring
  • Standards: CE
  • Swivel Outlet Thread Size: 3/8 in - 18
  • Hose Reel Type: Wall Mount Hose Reel
  • Includes Cord: Yes
  • Swivel Inlet Size: 3/8 in
  • Base Motion Type: Stationary
  • Hose 1 Fitting A Type: NPT
  • Reel Width: 16 in
  • Maximum Operating Pressure: 300 psi
  • Reel Diameter: 17 in
  • Bearing Construction: Permanently Lubricated
  • Feeder Cord Ending Configuration: NEMA 5-20P
  • Mount Hole Diameter: 1/2 in
  • Fitting Size: 3/8 in x 3/8 in
  • Minimum Operating Temperature: -15 Degrees F
  • Mounting Hole Center to Center Width: 7 in
  • Hose 1 Fitting A Material: Brass
  • Number of Outlets: 2
  • Reel Material: Steel
  • Swivel Inlet Thread Size: 3/8 in - 18
  • Hose 1 Tube Material: PVC
  • Swivel Outlet Size: 3/8 in
  • Minimum Operating Pressure: 0 psi
  • Hose 1 Inside Diameter: 3/8 in
  • Combination Type: Air/Electric
  • Hose 1 Cover Material: PVC
  • Spiral Hose Guard: No
  • Fasteners Included: No
  • Swivel Outlet Gender: Female
  • Hose 1 Outside Diameter: 5/8 in
  • Feeder Cord Ending: Grounding Plug
  • Swivel Inlet Type: NPT
  • Overall Dimensions: 17 in L x 16 in W x 18 5/8 in H
  • Hose 1 Fitting A Gender: Male
  • Retractable Cord Ending: Single Plug
  • Speed Limited Retraction: No
  • Hose Return Speed Control: No
  • Cord Gauge: 12 AWG
  • Include Hose Stop: Yes
  • Cord Current: 20 A
  • Swivel Inlet Gender: Female
  • Includes Leader Hose: No
  • Hose 1 Color: Red
  • Enclosed: No
  • Number of Mount Holes: 4
  • Hose End Configuration: 3/8 in MNPT x 3/8 in MNPT
  • Retractable Cord Ending Configuration: NEMA 5-20P
  • Number of Guide Arms: Single Arm
  • Fitting Type: Cord x Cord, NPT x NPT
  • Hose 1 Fitting B Material: Brass
  • Seal Material: Nitrile
  • Hose 1 Fitting B Type: NPT
  • For Dual Hose: No
  • Hose 1 Fitting B Gender: Male
  • Cord Color: Black
  • Hose 1 Length: 50 ft
  • Feeder Cord Length: 5 ft
  • Pedestal Type: Single Pedestal
  • Swivel Outlet Type: NPT
  • Hose 1 Fitting A Size: 3/8 in
  • Hose Capacity: 50 ft (3/8 in ID)
  • Retractable Cord Length: 50 ft
  • Mount Base Width: 8 in
  • Reel Finish: Powder Coated
  • Mounting Hole Center to Center Height: 8 in
  • Latch Type: Locking
  • Reel Color: Blue
  • Maximum Operating Temperature: 150 Degrees F
  • Hose 1 Fitting B Size: 3/8 in
  • Mount Base Height: 9 in
  • Hose Reel Primary Application: Air, Electric
  • Includes Hose: Yes
  • Duty Rating: Heavy Duty
  • Country of Origin (subject to change): United States

Description

Dual Reel Spring Return Hose Reel, Air, Electric, 0 psi, 300 psi, Combination Type Air/Electric, Hose Capacity 50 ft (3/8 in ID), Includes Hose Yes, Mounting Location Bench, Floor, Truck, Wall, Overall Height 18 5/8 in, Overall Length 17 in, Overall Width 16 in, Feeder Cord Ending Configuration NEMA 5-20P, Retractable Cord Ending Configuration NEMA 5-20P, Drive Type Spring Return, Enclosed No, Cord Color Black, Cord Current 20 A, Cord Gauge 12 AWG, Voltage 115 V AC, Seal Material Nitrile
