  11. Reel, Combination, Spring Driven, 3/8x50 Ft
This item is Discontinued.

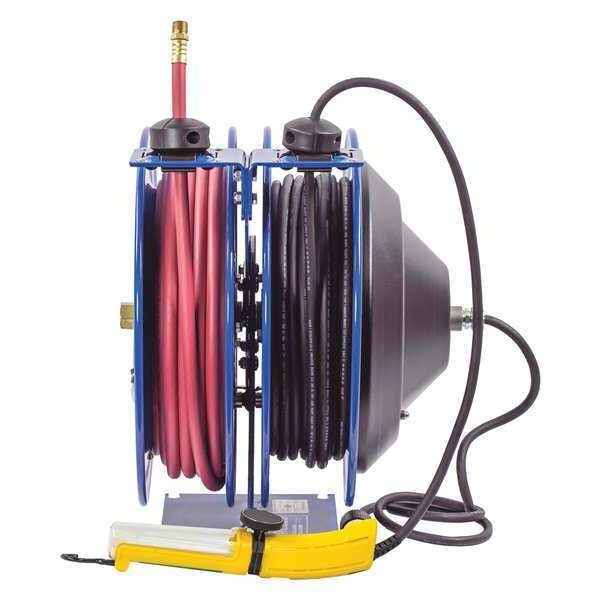

Coxreels Reel, Combination, Spring Driven, 3/8x50 Ft C-L350-5016-D

Reel, Combination, Spring Driven, 3/8x50 Ft (Discontinued)

  • Mfr # C-L350-5016-D
  • Zoro # G0805174
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C-L350-5016-D
Zoro #
G0805174
UPC #
674255726420
Country of Origin
United States

Dimensions

AC Cord Length
50 ft
Hose Inside Dia.
3/8 in
Hose Length
50 ft
Overall Height
18 5/8 in
Overall Width
16 in
Overall Length
17 in
Hose 1 Length
50 ft
Mounting Hole Center to Center Height
8 in
Swivel Outlet Size
3/8 in
Reel Width
16 in
Retractable Cord Length
50 ft
Hose 1 Inside Diameter
3/8 in
Mount Base Height
9 in
Feeder Cord Length
5 ft
Swivel Inlet Thread Size
3/8 in - 18
Fitting Size
3/8 in x 3/8 in
Hose 1 Outside Diameter
5/8 in
Mount Hole Diameter
1/2 in
Hose 1 Fitting B Size
3/8 in
Swivel Outlet Thread Size
3/8 in - 18
Overall Dimensions
17 in L x 16 in W x 18 5/8 in H
Reel Diameter
17 in
Mounting Hole Center to Center Width
7 in
Mount Base Width
8 in
Hose 1 Fitting A Size
3/8 in
Swivel Inlet Size
3/8 in

Details

Voltage
115 V AC
Amps
13 A
Wire Gauge (AWG)
16
Plug Type
NEMA 5-15P
Receptacle Type
Plug
Max. Pressure
300 psi
Hose Ends
3/8 in MNPT x 3/8 in MNPT
Mounting
Bench and Vehicle, Ceiling, Floor, Wall
Bearings
Permanently Lubricated
Max. Temp. (F)
150 Degrees F
Max. Pressure (PSI)
300
Seal Type
Nitrile
Drive Type
Spring Return
Item
Dual Reel Spring Return Hose Reel
Includes
Cord, Fluorescent Angle Light with Tool Tap Plug, Hose
Finish
Powder Coated
Swivel Material
Brass
Number of Conductors
2
Reel Inlet
3/8 in (F)NPT
Latch
Locking
Hose Included
Yes
Hose Material
PVC
Phase
Single Phase
Weight
79 lb
Standards
CE
Features
1 in Solid Steel Axle, Chip Resistant CPC Powder Coat Finish, CNC Spun Discs with Strength Bead and Rolled Edge, Each Reel Operates Independently, Heavy Gauge 1/4 in Steel Base & Support Post For Maximum Stability, Single Pedestal Reel, Solid One Piece, Stainless Steel Ratchet Pawl and Spring
Maximum Operating Pressure
300 psi
Includes Hose
Yes
Hose 1 Tube Material
PVC
Spiral Hose Guard
No
Hose 1 Fitting B Material
Brass
Hose Capacity
50 ft (3/8 in ID)
Pedestal Type
Single Pedestal
For Dual Hose
No
Bearing Construction
Permanently Lubricated
Include Hose Stop
Yes
Seal Material
Nitrile
Reel Color
Blue
Feeder Cord Ending Configuration
NEMA 5-15P
Hose 1 Fitting A Gender
Male
Hose 1 Cover Material
PVC
Latch Type
Locking
Speed Limited Retraction
No
Reel Finish
Powder Coated
Hose 1 Fitting B Type
NPT
Swivel Outlet Gender
Female
Number of Outlets
2
Reel Material
Steel
Minimum Operating Pressure
0 psi
Retractable Cord Ending Configuration
NEMA 5-15R
Fitting Type
Cord x Cord, NPT x NPT
Fasteners Included
No
Combination Type
Air/Electric
Feeder Cord Ending
Grounding Plug
Minimum Operating Temperature
-15 Degrees F
Hose Reel Type
Wall Mount Hose Reel
Hose 1 Fitting B Gender
Male
Swivel Inlet Type
NPT
Hose 1 Color
Red
Swivel Inlet Gender
Female
Hose 1 Fitting A Material
Brass
Cord Gauge
16 AWG
Hose 1 Fitting A Type
NPT
Cord Current
13 A
Includes Leader Hose
No
Enclosed
No
Retractable Cord Ending
Single Plug
Maximum Operating Temperature
150 Degrees F
Swivel Outlet Type
NPT
Cord Color
Black
Base Motion Type
Stationary
Hose End Configuration
3/8 in MNPT x 3/8 in MNPT
Includes Cord
Yes
Hose Return Speed Control
No
Hose Reel Primary Application
Air, Electric
Number of Mount Holes
4
Number of Guide Arms
Single Arm
Duty Rating
Heavy Duty

Description

Dual Reel Spring Return Hose Reel, Air, Electric, 0 psi, 300 psi, Combination Type Air/Electric, Hose Capacity 50 ft (3/8 in ID), Includes Hose Yes, Mounting Location Bench, Floor, Truck, Wall, Overall Height 18 5/8 in, Overall Length 17 in, Overall Width 16 in, Feeder Cord Ending Configuration NEMA 5-15P, Retractable Cord Ending Configuration NEMA 5-15R, Drive Type Spring Return, Enclosed No, Cord Color Black, Cord Current 13 A, Cord Gauge 16 AWG, Voltage 115 V AC, Seal Material Nitrile
