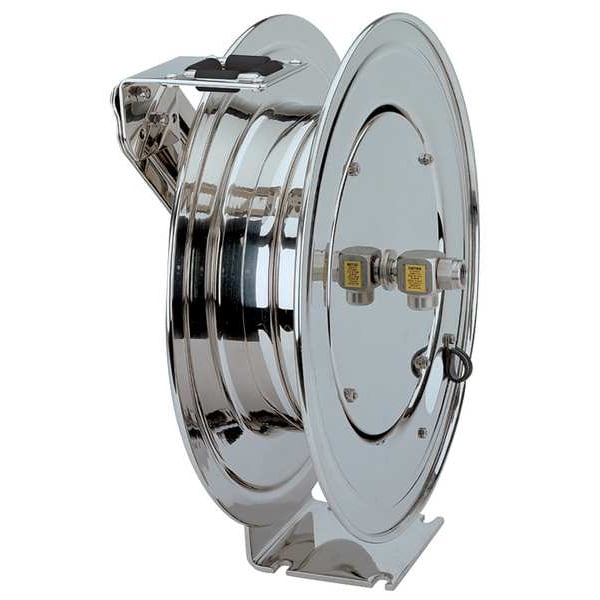

Spring Return Hose Reel, 1/2 in Hose Diameter, 25 ft Length, 300 psi Max. Pressure, Stainless Steel

  • Mfr # P-LPL-425-SS

  • Zoro # G5200772

product price:
$
955.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Stainless Steel Low Pressure Performance Hose Reel - Spring Rewind Hose Reel - Stainless Steel Hose Reel - Low Pressure Hose Reel - Retractable Hose Reel - Air Compressor Reel
Hose Inside Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P-LPL-425-SS
Zoro #
G5200772
UPC #
674255718654
Country of Origin
United States

Dimensions

Hose Inside Dia.
1/2 in
Overall Height
18 5/8 in
Hose Length
25 ft
Overall Width
17 1/8 in
Overall Length
7 in
Reel Diameter
17 1/8 in
Width
7 in
Length
7 in
Reel Width
7 in
Height
18 1/4 in
Swivel Outlet Size
1/2 in
Mount Base Width
6 in
Mount Hole Diameter
1/2 in
Overall Dimensions
7 in L x 17 1/8 in W x 18 5/8 in H
Mount Base Height
6 in
Swivel Outlet Thread Size
1/2 in - 14
Mounting Hole Center to Center Height
5 in
Swivel Inlet Size
1/2 in
Swivel Inlet Thread Size
1/2 in - 14
Mounting Hole Center to Center Width
4 in
Wire Rope Length
7 in

Details

Item
Spring Return Hose Reel
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Stainless Steel Low Pressure Performance Hose Reel - Spring Rewind Hose Reel - Stainless Steel Hose Reel - Low Pressure Hose Reel - Retractable Hose Reel - Air Compressor Reel
Hose End Configuration
1/2 in (M)NPT
Hose Material
Stainless Steel
Mounting
Bench and Vehicles, Ceiling, Floor, Wall
Reel Color
Silver
Features
External Fluid Path, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non-Corrosive Stainless Steel Pawl Spring, Pawl/Zinc Plated Ratchet, Polished Stainless Finish, Rolled Edges and Ribbed Discs Provide Strength and Safety
Media - Hose Reels
Air, Mild Chemical, Water
Application
Air, Water and Chemical
Swivel Material
Stainless Steel
Hose Outlet
1/2 in (M)NPT
Reel Inlet
1/2 in (F)NPT
Duty Rating
Heavy Duty
Max. Temp.
150 Degrees F
Finish - Hose Reels
Electro Polished
Seal Type
Nitrile
Housing Material
Stainless steel
Bearings
Permanently Lubricated
Latch
Locking
Latch Type
Locking
Reel Material
Stainless Steel
Swivel Outlet Type
NPT
Swivel Inlet Type
NPT
Speed Limited Retraction
No
Maximum Operating Pressure
300 psi
Standards
CE
Corrosion-Resistant
Yes
Reel Finish
Electro-Polished
Vacuum Rating
29 in Hg
Fasteners Included
No
Base Motion Type
Stationary
Includes Leader Hose
No
Swivel Outlet Gender
Female
Maximum Operating Temperature
150 Degrees F
Hose Capacity
25 ft (1/2 in I.D.)
Number of Guide Arms
Single Arm
Twin Hose Compatible
No
Hose Reel Primary Application
Air, Water
Weight
39 lb
Swivel Inlet Gender
Female
Pedestal Type
Single Pedestal
Number of Mount Holes
4
Bearing Construction
Permanently Lubricated
Minimum Operating Temperature
-40 Degrees F
Hose Reel Type
Wall Mount Hose Reel
For Dual Hose
No
Includes Hose
No
Type
Single Pedestal

Description

Spring Return Hose Reel, Air, Water, Maximum Operating Pressure 300 psi, Hose Capacity 25 ft (1/2 in I.D.), Drive Type Spring Return, Corrosion-Resistant Yes, Enclosed No, For Dual Hose No, Hose Reel Type Wall Mount Hose Reel, Includes Hose No, Mounting Location Bench, Floor, Truck, Wall, Pedestal Type Single Pedestal, Number of Guide Arms Single Arm, Overall Height 18 5/8 in, Overall Length 7 in, Overall Width 17 1/8 in, Reel Material Stainless Steel, Reel Finish Electro-Polished
