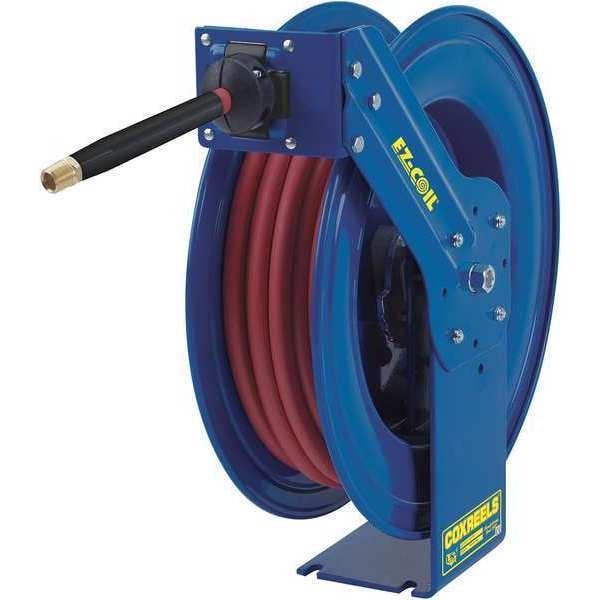

Spring Return Hose Reel, 1/2 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass, Blue

  • Mfr # EZ-SH-450-RH-BXB

  • Zoro # G0497664

product price:
$
670.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose, Hose Guard, Hose Stop
Hose Inside Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EZ-SH-450-RH-BXB
Zoro #
G0497664
UPC #
674255741089
Country of Origin
United States

Dimensions

Hose Inside Dia.
1/2 in
Overall Height
21 1/4 in
Hose Length
50 ft
Overall Width
8 1/4 in
Overall Length
19 1/2 in
Reel Diameter
19 1/2 in
Hose Outside Dia.
3/4 in
Reel Width
8 1/4 in
Height
21 in
Length
19 1/2 in
Swivel Inlet Thread Size
1/2 in - 14
Mount Base Height
6 in
Swivel Outlet Size
1/2 in
Fitting Size
1/2 in x 1/2 in
Mounting Hole Center to Center Width
4 in
Mount Base Width
6 in
Hose Fitting B Size
1/2 in
Mount Hole Diameter
1/2 in
Mounting Hole Center to Center Height
5 in
Hose Fitting A Size
1/2 in
Overall Dimensions
19 1/2 in L x 8 1/4 in W x 21 1/4 in H
Swivel Outlet Thread Size
1/2 in - 14
Swivel Inlet Size
1/2 in
Wire Rope Length
19 1/2 in

Details

Item
Spring Return Hose Reel
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose, Hose Guard, Hose Stop
Hose End Configuration
1/2 in MNPT
Hose Color
Red
Hose Material
PVC
Mounting
Bench and Vehicles, Ceiling, Floor, Wall
Reel Color
Blue
Features
1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting CPC Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges and Ribbed Discs Provide Strength and Safety, Solid One Piece
Media - Hose Reels
Air, Water
Application
Air and Water
Swivel Material
Brass
Latch
Locking
Housing Material
Steel
Duty Rating
Heavy Duty
Bearings
Permanently Lubricated
Max. Temp.
212 Degrees F
Finish - Hose Reels
Powder Coated
Reel Inlet
1/2 in (F)NPT
Hose Outlet
1/2 in (M)NPT
Seal Type
Nitrile
Standards
CE
Weight
54 lb
Minimum Operating Temperature
-40 Degrees F
Number of Guide Arms
Single Arm
Swivel Inlet Gender
Female
Bearing Construction
Permanently Lubricated
Hose Cover Material
EPDM
Swivel Outlet Gender
Male
Latch Type
Locking
Hose Reel Type
Wall Mount Hose Reel
Maximum Operating Temperature
150 Degrees F
Spiral Hose Guard
No
Reel Finish
Powder Coated
Hose Fitting B Material
Brass
Number of Mount Holes
4
Twin Hose Compatible
No
Speed Limited Retraction
Yes
Includes Hose
Yes
Fasteners Included
No
Fitting Type
NPT x NPT
Hose Reel Primary Application
Air, Water
Maximum Operating Pressure
300 psi
Reel Material
Steel
Hose Capacity
50 ft (1/2 in I.D.)
Swivel Outlet Type
NPT
Base Motion Type
Stationary
Includes Leader Hose
No
Swivel Inlet Type
NPT
Includes Hose Stop
Yes
Hose Fitting A Gender
Male
Hose Fitting B Gender
Male
Hose Fitting B Type
NPT
For Dual Hose
No
Hose Fitting A Type
NPT
Corrosion-Resistant
Yes
Pedestal Type
Single Pedestal
Hose Tube Material
EPDM
Hose Fitting A Material
Brass
Type
Heavy Duty Industrial

Description

Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 50 ft (1/2 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 1/2 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction Yes, Overall Height 21 1/4 in, Overall Length 19 1/2 in, Overall Width 8 1/4 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Red, Hose Cover Material EPDM, Hose Fitting A Gender Male
