  11. Spring Return Hose Reel, 3/8 in Hose Diameter, 25 ft Length, 300 psi Max. Pressure, Brass, Blue

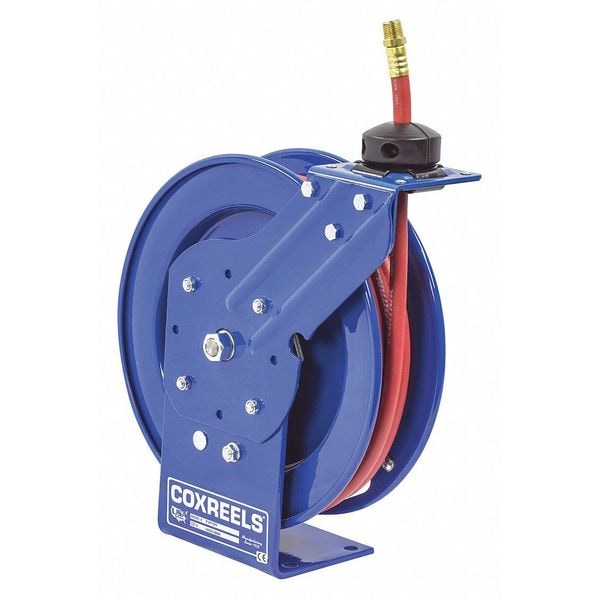

Coxreels Spring Return Hose Reel, 3/8 in Hose Diameter, 25 ft Length, 300 psi Max. Pressure, Brass, Blue P-LP-325 - main

Spring Return Hose Reel, 3/8 in Hose Diameter, 25 ft Length, 300 psi Max. Pressure, Brass, Blue

  • Mfr # P-LP-325

  • Zoro # G0332600

product price: $272.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose, Hose Guard, Hose Stop
Hose Inside Dia.
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P-LP-325
Zoro #
G0332600
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/8 in
Overall Height
14 7/8 in
Hose Length
25 ft
Overall Width
6 1/2 in
Overall Length
13 1/2 in
Reel Diameter
13 1/2 in
Hose Outside Dia.
5/8 in
Reel Width
6 1/2 in
Swivel Inlet Thread Size
3/8 in - 18
Swivel Outlet Thread Size
3/8 in - 18
Mount Base Height
6 in
Mount Hole Diameter
1/2 in
Swivel Outlet Size
3/8 in
Mounting Hole Center to Center Width
3 in
Overall Dimensions
13 1/2 in L x 6 1/2 in W x 14 7/8 in H
Mount Base Width
5 in
Mounting Hole Center to Center Height
5 in
Hose Fitting B Size
3/8 in
Fitting Size
3/8 in x 3/8 in
Hose Fitting A Size
3/8 in
Swivel Inlet Size
3/8 in

Details

Item
Spring Return Hose Reel
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose, Hose Guard, Hose Stop
Hose End Configuration
3/8 in MNPT
Hose Color
Red
Hose Material
PVC
Mounting
Floor, Wall, Ceiling and Vehicles
Reel Color
Blue
Features
1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting CPC Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges and Ribbed Discs Provide Strength and Safety, Solid One Piece
Media - Hose Reels
Air, Water
Application
Air/Water Services, Pneumatic Tools, Lubrication, Chemical Fluid Transfer, General Industrial, Manufacturing Plants & Facilities, Maintenance Repair & Operations, Automotive & Fleet Service Centers
Swivel Material
Brass
Housing Material
Steel
Finish - Hose Reels
Powder Coated
Duty Rating
Heavy Duty
Bearings
Permanently Lubricated
Max. Temp.
150 Degrees F
Reel Inlet
3/8" (F)NPT
Seal Type
Nitrile
Hose Outlet
3/8 in (M)NPT
Fasteners Included
No
Number of Mount Holes
4
Minimum Operating Temperature
-15 Degrees F
Pedestal Type
Single Pedestal
Standards
CE
Hose Fitting A Type
NPT
Hose Capacity
25 ft (3/8 in I.D.)
Fitting Type
NPT x NPT
Swivel Inlet Type
NPT
Hose Reel Type
Wall Mount Hose Reel
Spiral Hose Guard
No
Hose Fitting A Gender
Male
Swivel Outlet Gender
Male
Swivel Outlet Type
NPT
Reel Material
Steel
Reel Finish
Powder Coated
Hose Fitting B Material
Brass
Includes Hose
Yes
Weight
28 lb
Hose Fitting A Material
Brass
Hose Tube Material
PVC
Hose Cover Material
PVC
Includes Leader Hose
No
Latch Type
Locking
Base Motion Type
Stationary
Includes Hose Stop
Yes
Bearing Construction
Permanently Lubricated
Swivel Inlet Gender
Female
Corrosion-Resistant
Yes
Hose Fitting B Type
NPT
Hose Reel Primary Application
Air, Water
Hose Fitting B Gender
Male
Maximum Operating Pressure
300 psi
Speed Limited Retraction
No
Maximum Operating Temperature
150 Degrees F
For Dual Hose
No
Number of Guide Arms
Single Arm
Twin Hose Compatible
No

Description

Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 25 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 25 ft, Reel Material Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction No, Overall Height 14 7/8 in, Overall Length 13 1/2 in, Overall Width 6 1/2 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Red, Hose Cover Material PVC, Hose Fitting A Gender Male
