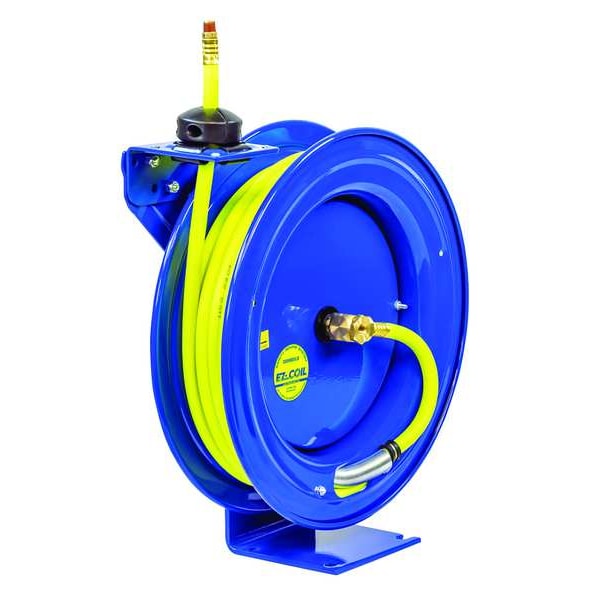

Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, Brass, Blue

  • Mfr # EZ-P-LP-350-HV
  • Zoro # G9369742
product price:
$
543.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Spring Return
Enclosed
No
Includes
Hose, Hose Guard, Hose Stop
Hose Inside Dia.
3/8 in
Hose End Configuration
3/8 in MNPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EZ-P-LP-350-HV
Zoro #
G9369742
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/8 in
Overall Height
18 1/4 in
Hose Length
50 ft
Overall Width
6 1/8 in
Overall Length
17 1/4 in
Reel Diameter
17 1/8 in
Hose Outside Dia.
5/8 in
Reel Width
6 3/4 in
Swivel Inlet Size
3/8 in
Mounting Hole Center to Center Height
5 in
Mount Hole Diameter
1/2 in
Mount Base Width
6 in
Hose Fitting A Size
3/8 in
Swivel Outlet Thread Size
3/8 in - 18
Swivel Outlet Size
3/8 in
Mounting Hole Center to Center Width
4 in
Overall Dimensions
17 1/4 in L x 6 1/8 in W x 18 1/4 in H
Fitting Size
3/8 in x 3/8 in
Mount Base Height
6 in
Hose Fitting B Size
3/8 in
Swivel Inlet Thread Size
3/8 in - 18
Wire Rope Length
17 1/4 in
Length
17 1/4 in
Fits Chest Size
1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting CPC Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges and Ribbed Discs Provide Strength and Safety, Solid One Piece

Details

Item
Spring Return Hose Reel
Drive Type
Spring Return
Enclosed
No
Includes
Hose, Hose Guard, Hose Stop
Hose End Configuration
3/8 in MNPT
Hose Color
Yellow
Reel Color
Blue
Features
1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting CPC Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges and Ribbed Discs Provide Strength and Safety, Solid One Piece
Swivel Material
Brass
Latch Type
Locking
Swivel Inlet Type
NPT
Hose Fitting B Material
Brass
Includes Hose Stop
Yes
Reel Finish
Powder Coated
Number of Mount Holes
4
Twin Hose Compatible
No
Standards
CE
Hose Reel Type
Wall Mount Hose Reel
Pedestal Type
Single Pedestal
Minimum Operating Temperature
-40 Degrees F
Hose Capacity
50 ft (3/8 in I.D.)
Bearing Construction
Permanently Lubricated
Hose Fitting A Gender
Male
Corrosion-Resistant
Yes
Hose Fitting A Material
Brass
For Dual Hose
No
Swivel Outlet Gender
Male
Number of Guide Arms
Single Arm
Base Motion Type
Stationary
Swivel Outlet Type
NPT
Hose Fitting B Type
NPT
Fasteners Included
No
Maximum Operating Temperature
150 Degrees F
Swivel Inlet Gender
Female
Includes Leader Hose
No
Speed Limited Retraction
Yes
Hose Fitting A Type
NPT
Reel Material
Steel
Includes Hose
Yes
Maximum Operating Pressure
300 psi
Hose Fitting B Gender
Male
Weight
43 lb
Fitting Type
NPT x NPT
Hose Cover Material
Hybrid Rubber/PVC
Spiral Hose Guard
No
Hose Reel Primary Application
Air, Water

Description

Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 50 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction Yes, Overall Height 18 1/4 in, Overall Length 17 1/4 in, Overall Width 6 1/8 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Yellow, Hose Cover Material Hybrid Rubber/PVC, Hose Fitting A Gender Male
