Coxreels

Vacuum Hand Crank Reel, 1-1/2In. X

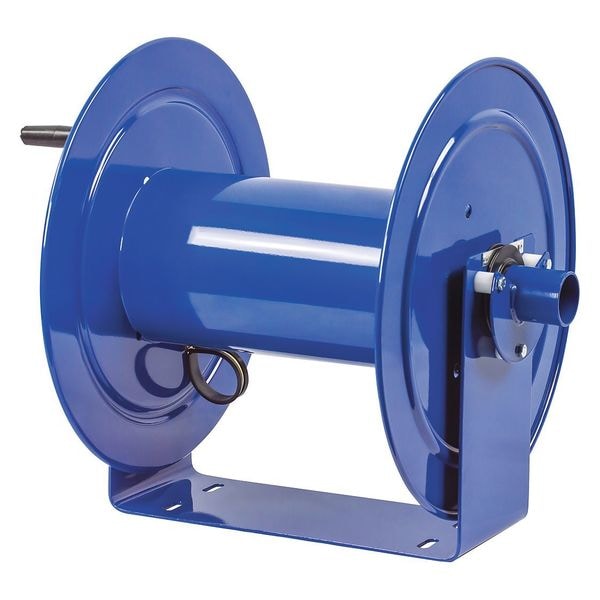

Coxreels Vacuum Hand Crank Reel,  1-1/2In. X V-117-850
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$229.99
  • Reel Inlet: 3/4 in (F)NPT
  • Duty Rating: Heavy Duty
  • Overall Width: 26 3/4 in
See full product details
This item ships free.
Total: $229.99

Coxreels #V-117-850 Specifications

  • Reel Inlet: 3/4 in (F)NPT
  • Duty Rating: Heavy Duty
  • Overall Width: 26 3/4 in
  • Mounting: Bench, Floor, Truck, Wall
  • Swivel Material: Zinc Plated Steel
  • Item: Hand Crank Hose Reel
  • Overall Length: 17 in
  • Overall Height: 18 in
  • Drive Type: Hand Crank
  • Swivel Inlet Size: 1 1/2 in
  • Reel Material: Steel
  • Minimum Operating Temperature: -40 Degrees F
  • Mount Base Width: 15 in
  • Maximum Operating Temperature: 225 Degrees F
  • Mounting Hole Center to Center Width: 11 in
  • Enclosed: No
  • Reel Color: Blue
  • Standards: CE
  • Seal Material: Nitrile
  • Fasteners Included: No
  • Swivel Inlet Thread Size: 1 1/2 in - 2
  • Overall Dimensions: 17 in L x 26 3/4 in W x 18 in H
  • Reel Finish: Powder Coated
  • Base Motion Type: Stationary
  • Mount Hole Diameter: 7/16 in
  • Reel Width: 13 1/2 in
  • Mount Base Height: 6 in
  • Swivel Outlet Thread Size: 1 1/2 in - 2 in
  • Hose Capacity: 850 ft (1 1/2 in I.D.)
  • Includes Leader Hose: No
  • Number of Mount Holes: 4
  • Features: "A" Frame, CNC Spun Discs, Heavy Duty Steel Construction, Outlet Riser
  • Hose Reel Type: Wall Mount Hose Reel
  • Handle Length: 3 1/2 in
  • Includes Hose: No
  • Bearing Construction: EPDM
  • Hose Reel Primary Application: Vacuum
  • Swivel Inlet Type: NPT
  • Mounting Hole Center to Center Height: 3 in
  • Swivel Inlet Gender: Female
  • Vacuum Rating: 29 in Hg
  • Includes Gooseneck: No
  • Reel Diameter: 17 in
  • Weight: 28 lb
  • Swivel Outlet Size: 1 1/2 in
  • For Dual Hose: No
  • Swivel Outlet Type: Hose Cuff
  • Swivel Outlet Gender: Female
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Hand Crank Hose Reel, Vacuum, Hose Capacity 850 ft (1 1/2 in I.D.), Overall Height 18 in, Overall Length 17 in, Overall Width 26 3/4 in, Reel Material Steel, Reel Finish Powder Coated, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Ceiling, Floor, Truck, Wall, Reel Color Blue, Includes Gooseneck No, Hose Reel Type Wall Mount Hose Reel, Swivel Material Zinc Plated Steel, Swivel Outlet Gender Female, Swivel Outlet Size 1 1/2 in, Swivel Outlet Thread Size 1 1/2 in - 2 in
