Shop All Compressor Air Filters
Wilkerson

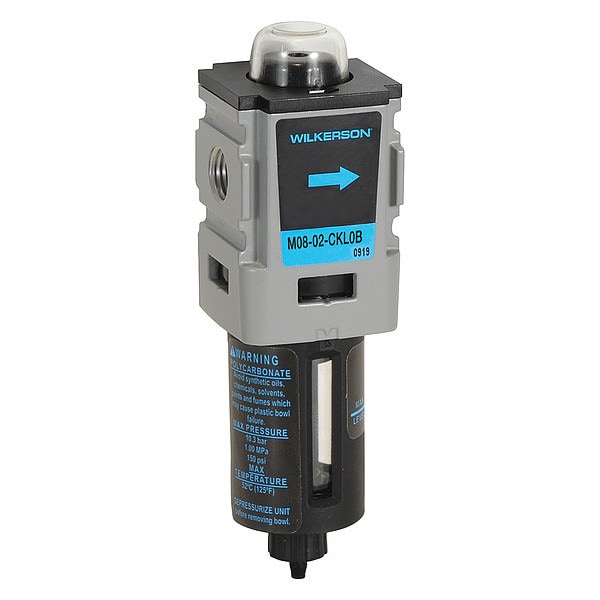

Compressed Air Filter, 0.5 micron Rating

product price: $45.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drain Type Manual
  • Bowl Material - Air Treatment Polycarbonate with Guard
  • For Removal Of Aerosol, Mist, Oil Fog, Particles
  • Filter Rating 0.5 micron
  • Overall Width 1 9/16 in
See all product information

Product Information

Dimensions

Overall Width 1 9/16 in
Size - Air Treatment Subcompact
Overall Depth 1 9/16 in
Overall Height 4 15/16 in
Drain Port Size 3/16 in
Bowl Size - Air Treatment 0.6 oz
Connection Size - Air Treatment 1/4 in NPT
Air Outlet Size 1/4 in
Air Inlet Size 1/4 in

Details

Drain Type Manual
Bowl Material - Air Treatment Polycarbonate with Guard
For Removal Of Aerosol, Mist, Oil Fog, Particles
Filter Rating 0.5 micron
Filter Rating - Air Treatment 0.5 micron
Item - Air Filters Compressed Air Filter
Max. Temp. 125 Degrees F
Max. Flow - Air Treatment 20 cfm
Item Compressed Air Filter
Max. Incoming Pressure - Air Treatment 150 psi
Weight 0.24 lb
Filter Bowl Capacity 0.4 oz
Filter Bowl Guard Included Yes
Air Inlet Type NPT
Number of Air Outlets 1
Maximum Operating Pressure 150 psi
Maximum Operating Temperature 125 Degrees F
Filter Bowl Material Plastic
Filter Element Material Borosilicate Cloth
Maximum Flow Rate 12.7 cfm
Pressure Drop 3 psig
Body Material Aluminum
Modular Connection Modular Connection
Filter Type Coalescing
For Substance Type Oil Aerosol
Air Outlet Type NPT
Number of Air Inlets 1
Drain Included Yes
For Fluid Type Oil
Series M08
Seal Material Nitrile
ISO Class 2
System Location Air Line
Minimum Operating Temperature 14 Degrees F
Gauge Included No

Description

Compressed Air Filter, Filter Type Coalescing, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 12.7 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 125 Degrees F, Overall Width 1 9/16 in, Overall Height 4 15/16 in, Drain Included Yes, Filter Bowl Material Polycarbonate, Drain Type Manual, Series M08, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 0.4 oz, Filter Bowl Guard Included Yes

Restrictions

  • WARNING: This product can expose you to chemicals including Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
