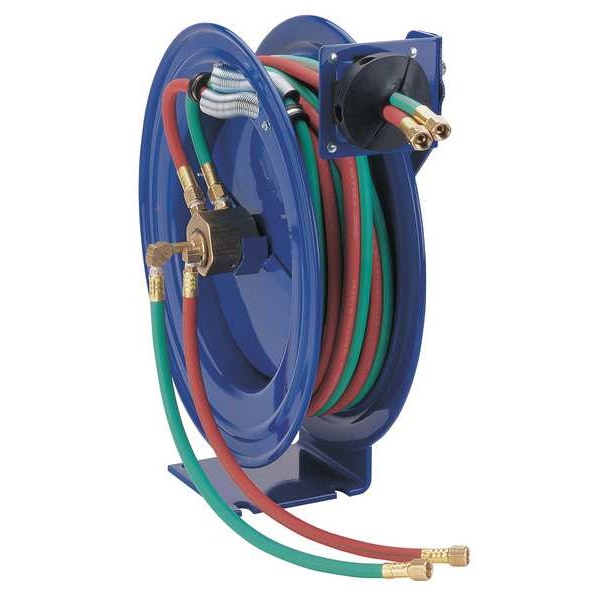

Coxreels Welding Hose Reel, 1/4"x50 SHW-N-150 - main

Welding Hose Reel, 1/4"x50

  • Mfr # SHW-N-150

  • Zoro # G3918052

product price: $609.99
/ea
Free Shipping & Returns

Key Features

Hose Included
Yes
Drive Type
Spring Return
Hose Inside Dia.
1/4 in
Hose Length
50 ft
(F)NPT Reel Inlet (In.)
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHW-N-150
Zoro #
G3918052
UPC #
674255719637
Country of Origin
United States

Dimensions

Hose Inside Dia.
1/4 in
Hose Length
50 ft
Overall Length
19 1/2 in
Overall Width
10 1/4 in
Overall Height
21 1/4 in
Leader Hose Fitting B Size
9/16 in
Fitting Size
9/16 in x 9/16 in
Hose 1 Fitting A Size
9/16 in
Hose 2 Fitting A Size
9/16 in
Hose 2 Inside Diameter
1/4 in
Hose 1 Length
50 ft
Mount Hole Diameter
1/2 in
Swivel Inlet Size
1/4 in
Hose 2 Length
50 ft
Mount Base Width
6 in
Swivel Outlet Size
1/4 in
Mounting Hole Center to Center Width
5 in
Reel Width
10 1/4 in
Swivel Inlet Thread Size
1/4 in - 18
Hose 1 Fitting B Size
9/16 in
Hose 1 Inside Diameter
1/4 in
Swivel Outlet Thread Size
1/4 in - 18
Mounting Hole Center to Center Height
4 in
Leader Hose Fitting A Size
1/4 in
Reel Diameter
19 1/2 in
Overall Dimensions
19 1/2 in L x 10 1/4 in W x 21 1/4 in H
Leader Hose Length
1 1/2 ft
Hose 2 Fitting B Size
9/16 in
Mount Base Height
6 in

Details

Hose Included
Yes
Drive Type
Spring Return
(F)NPT Reel Inlet (In.)
1/4 in
Hose Outlet
1/4 in
Hose Grade
R
Max. Pressure
200 psi
Thread
9/16"-18 UNF
Max. Temp.
150 Degrees F
Latch
Locking
Meets/Exceeds
R.M.A. and C.G.A. Type V.D. Specifications
Seal Type
Viton(R)
Mounting
Bench or Truck, Ceiling, Floor, Wall
Bearings
Permanently Lubricated
Item
Welding Hose Reel
For Use With
Oxy-Acetylene
Welding Hose Grade
R
Hose 2 Cover Material
EPDM
Hose 2 Fitting B Type
UNF
Minimum Operating Temperature
-20 Degrees F
Fitting Type
UNF x UNF
Swivel Material
Brass
Latch Type
Locking
Maximum Operating Pressure
200 psi
Hose 2 Fitting A Type
UNF
Hose End Configuration
9/16 in F UNF
Base Motion Type
Stationary
Enclosed
No
Combination Type
Oxygen/Acetylene
Hose Capacity
50 ft (1/4 in ID)
Bearing Construction
Permanently Lubricated
Swivel Inlet Type
NPT
For Dual Hose
Yes
Hose 1 Fitting A Material
Brass
Hose 1 Cover Material
EPDM
Hose Return Speed Control
No
Swivel Outlet Gender
Male
Swivel Outlet Type
NPT
Weight
64 lb
Reel Color
Blue
Leader Hose Cover Material
EPDM
Hose 1 Tube Material
EPDM
Hose 2 Fitting B Gender
Female
Hose Reel Primary Application
Welding
Hose 1 Fitting A Gender
Female
Seal Material
FKM
Hose 1 Fitting B Material
Brass
Leader Hose Fitting A Gender
Male
Maximum Operating Temperature
150 Degrees F
Hose 1 Fitting B Type
UNF
Includes Hose
Yes
Leader Hose Fitting B Type
UNF
Hose Reel Type
Wall Mount Hose Reel
Hose 2 Fitting A Gender
Female
Reel Material
Steel
Hose 1 Color
Red
Leader Hose Fitting A Type
NPT
Reel Finish
Powder Coated
Speed Limited Retraction
No
Leader Hose Fitting A Material
Brass
Hose 2 Color
Green
Swivel Inlet Gender
Female
Standards
UL Listed
Features
1 in Solid Steel Axle, Heavy Gauge Steel Base, Solid One Piece
Includes Leader Hose
Yes
Hose 2 Tube Material
EPDM
Hose 2 Fitting A Material
Brass
Spiral Hose Guard
No
Leader Hose Tube Material
EPDM
Leader Hose Fitting B Material
Brass
Fasteners Included
No
Hose 1 Fitting B Gender
Female
Leader Hose Fitting B Gender
Female
Minimum Operating Pressure
0 psi
Hose 2 Fitting B Material
Brass
Include Hose Stop
Yes
Hose 1 Fitting A Type
UNF

Description

Welding Hose Reel, Welding, Hose Grade R, 200 psi, 0 psi, Hose Capacity 50 ft (1/4 in ID), Combination Type Oxygen/Acetylene, Drive Type Spring Return, For Dual Hose Yes, Hose Reel Type Wall Mount Hose Reel, Hose Return Speed Control No, Includes Hose Yes, Hose 1 Color Red, Hose 1 Cover Material EPDM, Hose 1 Fitting A Gender Female, Hose 1 Fitting A Material Brass, Hose 1 Fitting A Size 9/16 in, Hose 1 Fitting A Type UNF, Hose 1 Fitting B Gender Female, Hose 1 Fitting B Material Brass
