  9. LED Area Luminaire, 53W

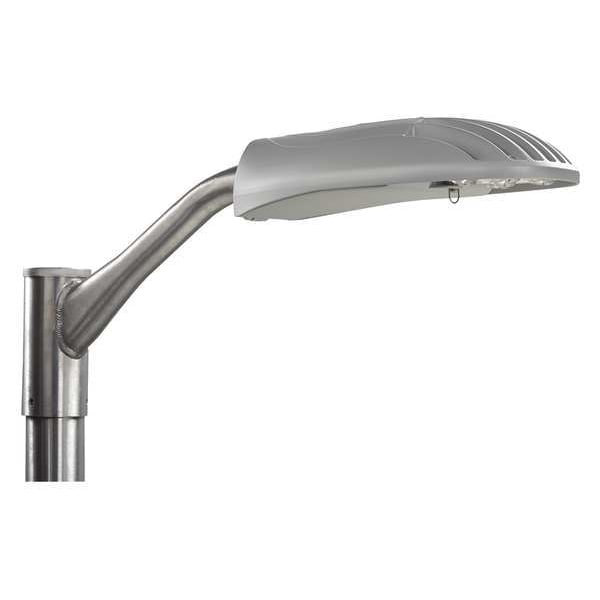

Cree LED Area Luminaire, 53W BXSP-B-HT-5ME-A-40K-UL-SV - main

LED Area Luminaire, 53W

  • Mfr # BXSP-B-HT-5ME-A-40K-UL-SV

  • Zoro # G9197596

product price: $336.99
/ea
Free Shipping & Returns

Key Features

Lumens
4,049 lm
Voltage
120 to 277V AC
Max. Fixture Wattage
53.0
Mounting
Horizontal Tenon
Lighting Technology
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BXSP-B-HT-5ME-A-40K-UL-SV
Zoro #
G9197596
UPC #
-
Country of Origin
United States

Dimensions

Fixture Width
9 1/4 in
Fixture Length
23 3/4 in
Fixture Height
5 in
Width
9 1/4 in
Height
5 in
Overall Height
5 1/8 in
Manufacturers Warranty Length
10 yr
Overall Width
9 3/8 in
Overall Length
23 5/8 in

Details

Lumens
4,049 lm
Voltage
120 to 277V AC
Max. Fixture Wattage
53.0
Mounting
Horizontal Tenon
Lighting Technology
LED
Watts
53
Bulb Technology
LED
Fixture Voltage
120 to 277
Temp. Range
-40 Degrees to 40 Degrees C
Fixture Temp. Range
-40 Degrees to 40 Degrees C
Fixture Housing Material
Die-Cast Aluminum
Lumens Per Watt
76.4
Description/Special Features
Cree XSP1 LED Area Luminaire, Horizontal Tenon Mount, Type V Medium Optic
Standards
10kV Surge Suppression Protection Tested In Accordance with IEEE/ANSI C62.41.2, 3G Bridge and Overpass Vibration Standards, Certified to ANSI C136.31-2001, cULus Listed for Wet Locations, Luminaire and Finish Endurance Tested to withstand 5000 hr of Elevated Ambient Salt Fog Conditions As Defined In ASTM Standard B 117, Meets Buy American Requirements Within ARRA, Meets CALTrans 611 Vibration Testing
Item
Street & Parking Lot Lights
Warranty
10 Years
Housing Material
Aluminum
CRI
70
Solar Powered
No
Housing Finish
Silver
LED Replacement For
70W HPS/MH
Fixture Housing Color
Silver
Color Temperature
4000K
Light Distribution
Type V Medium
Color Temp.
4000K
Light Distribution Shape
Type V
Fixture Lens Material
Acrylic
Fixture Rated Life
50,000 hr
Gasket
UL Listed for Wet Locations
Color Rendering Index
70
Light Distribution - Roadway and Area Fixtures
Type V Medium
Fixture Wattage
53 W
Mount Type
Tenon
Rated Life
50,000 hr
Light Technology
LED
Lumens per Watt
76.4 lm/W
Min. Operating Temp.
-40 Degrees C
Max. Operating Temp.
40 Degrees C
Housing Color
Silver
Operating Temperature - Minimum
-40 Degrees C
High Pressure Sodium Wattage Equivalency
70 W
Light Distribution Type - IESNA
Type V
Lumen Selectable
Not Selectable
Metal Halide Wattage Equivalency
70 W
Color Selectable
Not Selectable
Light Output
4,049 lm
Operating Temperature - Maximum
40 Degrees C

Description

Street & Parking Lot Lights, Lumens 4,049 lm, Fixture Wattage 53 W, Light Distribution Shape Type V, LED Replacement For 70W HPS/MH, Light Technology LED, Color Temperature 4000K, Color Rendering Index 70, Voltage 120 to 277V AC, Height 5 in, Width 9 1/4 in, Rated Life 50,000 hr, Fixture Housing Color Silver, Fixture Housing Material Die-Cast Aluminum, Fixture Lens Material Acrylic, Lumens per Watt 76.4 lm/W, Max. Operating Temp. 40 Degrees C, Min. Operating Temp. -40 Degrees C
